8041M08.40

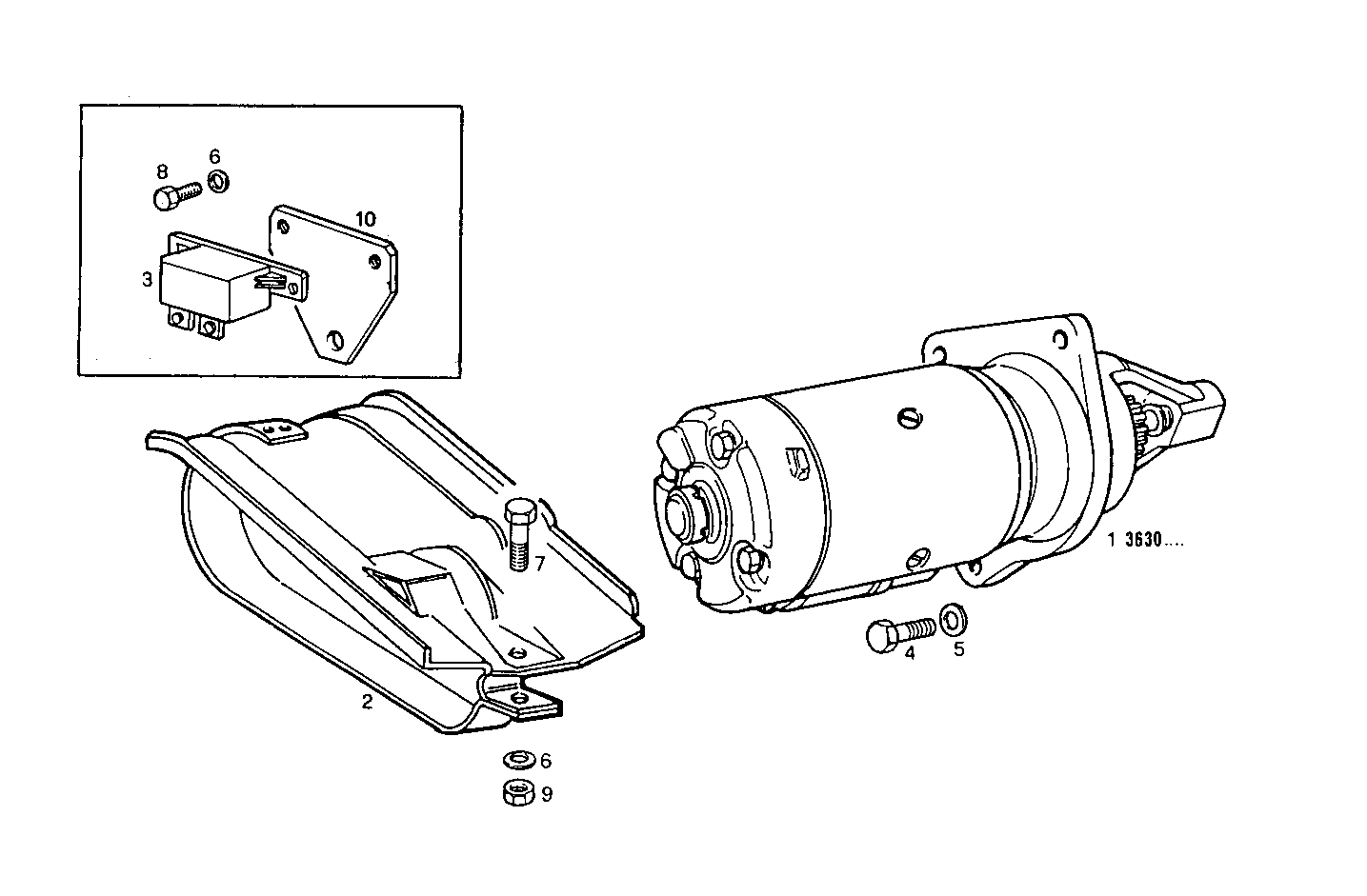

3600.083 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4755108 | STARTER MOTOR ASSY BOSCH - 24V - OPT. [up to 01-00] |
| 2 | 4721863 | PROTECTION |
| 3 | 8108575 | RELAY STARTER [up to 12-90] |
| 4 | 11306921 | SCREW M10X1,25X30 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16604124 | HEXAGON BOLT M6X40 MM |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 17037721 | NUT M5X0,8 |
| 10 | 8109257 | RETAINER |
