8041M08.40

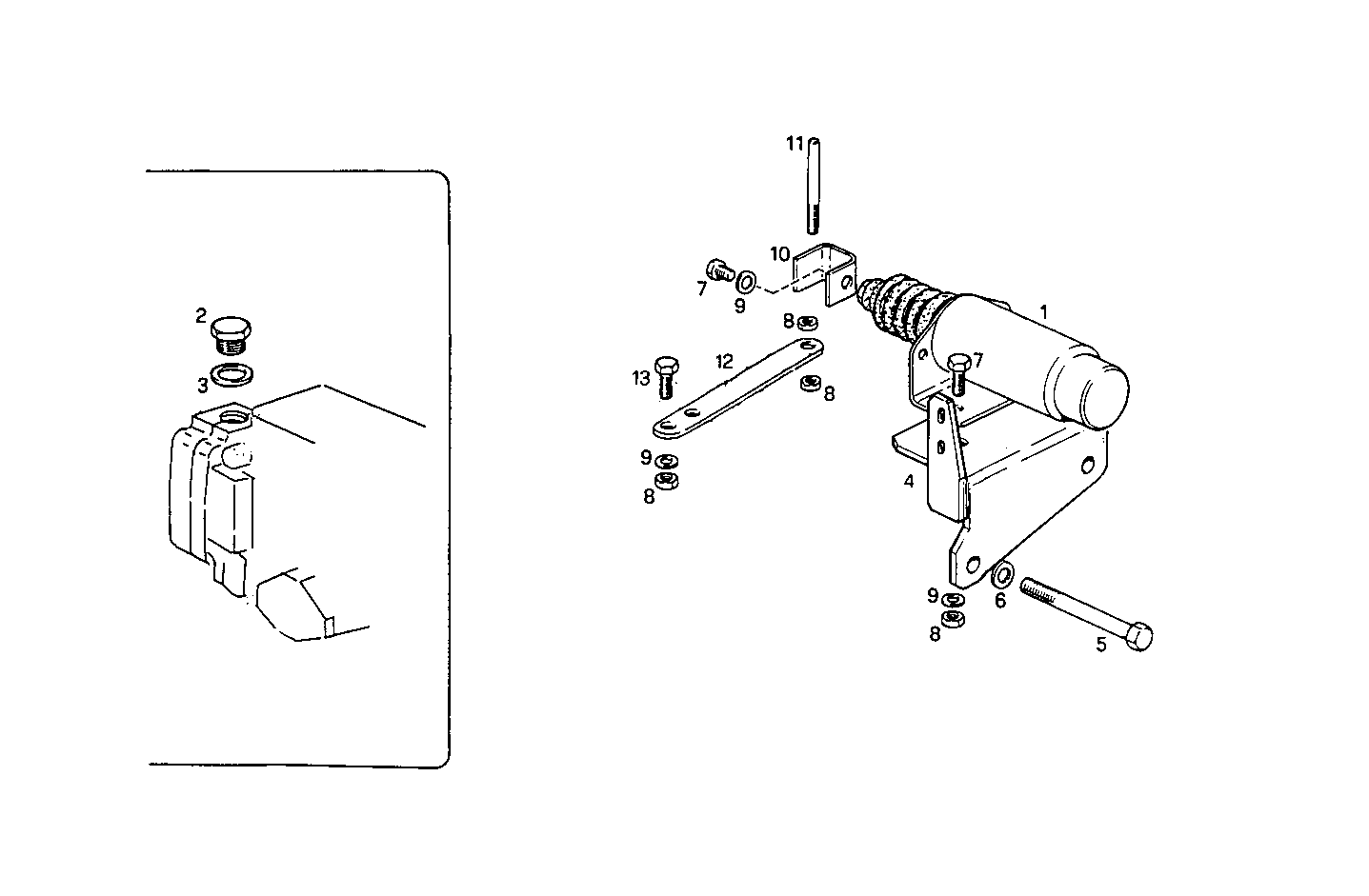

A38410031 STOP SOLENOID - ENERGIZE TO STOP - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8104920 | SOLENOID ASSY |
| 2 | 16992311 | LOCK PLUG M14X1,5 |
| 3 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 4 | 8006855 | RETAINER |
| 5 | 16606524 | HEXAGON BOLT M8X70 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16603524 | SCREW M6X12 MM (8.8) |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 8102657 | CLEVIS |
| 11 | 4935359 | PIN |
| 12 | 8113693 | RETAINER |
| 13 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
