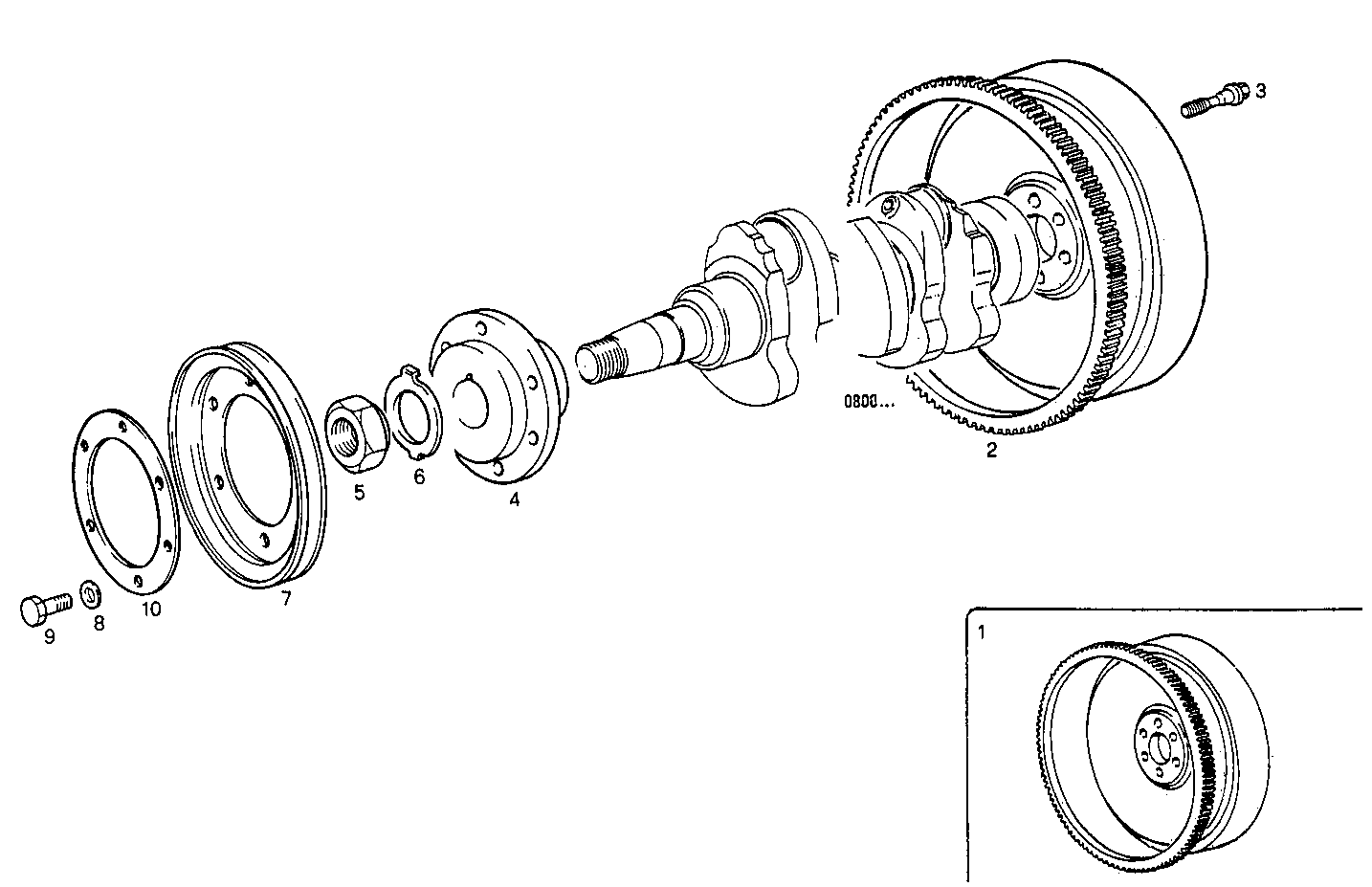

0830.002 ENGINE FLYWHEEL - DAMPER
Item | Part number | Description |
---|---|---|
1 | 4822336 | FLYWHEEL ASSY |
2 | 4862411 | RING GEAR |
3 | 4779122 | HEXAGON BOLT |
4 | 4655847 | HUB |
5 | 4600189 | NUT |
6 | 4600190 | LOCKING PLATE |
7 | 4792151 | CRANKSHAFT PULLEY |
8 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
9 | 15970524 | HEXAGON BOLT M10X1,25X20 |
10 | 4601574 | WASHER |
