8041M09.01

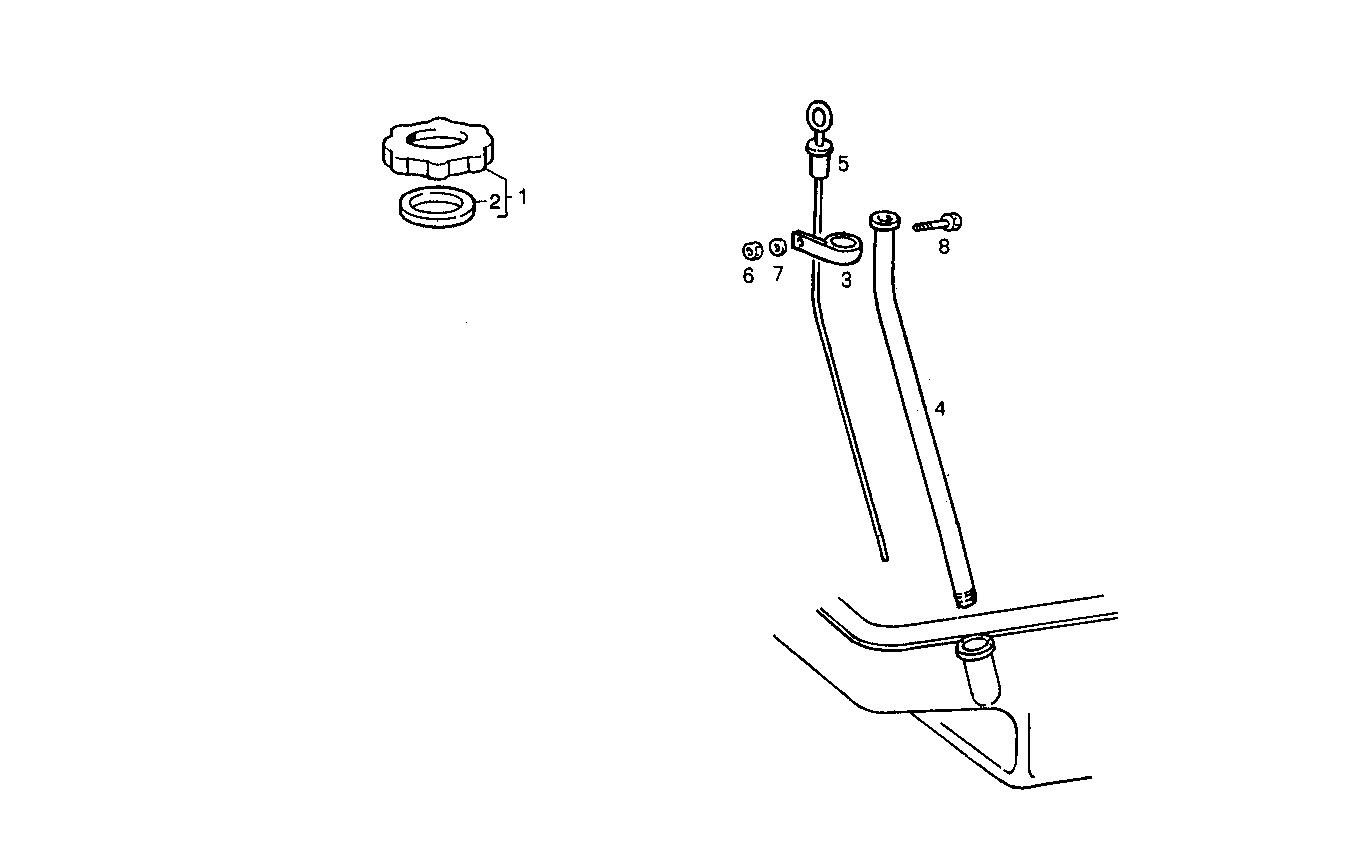

2710.011 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG ASSY |
| 2 | 98418978 | GASKET |
| 3 | 4930515 | CLIP |
| 4 | 4930514 | ROD GUIDE |
| 5 | 8108074 | OIL DIPSTICK |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
