8041M09.01

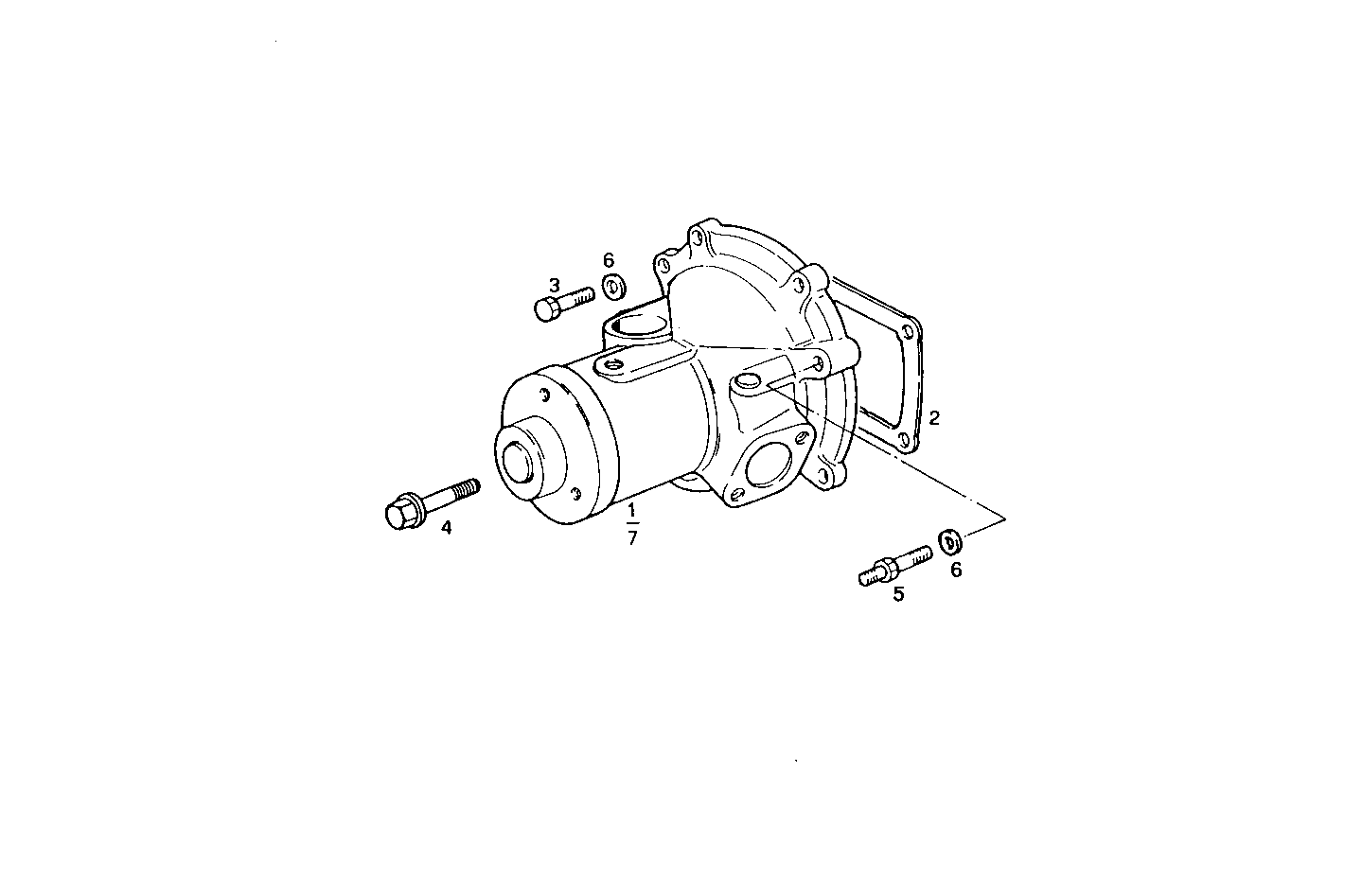

3200.038 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 4813370 | WATER PUMP ASSY [up to 657423] |
2 | 98400776 | FLAT ENGINE GASKET |
3 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
4 | 16288624 | HEXAGON BOLT M10X1,25X35 MM |
5 | 4792238 | STUD |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 98497117 | WATER PUMP ASSY [up to 02-97] |
