8041M09.01

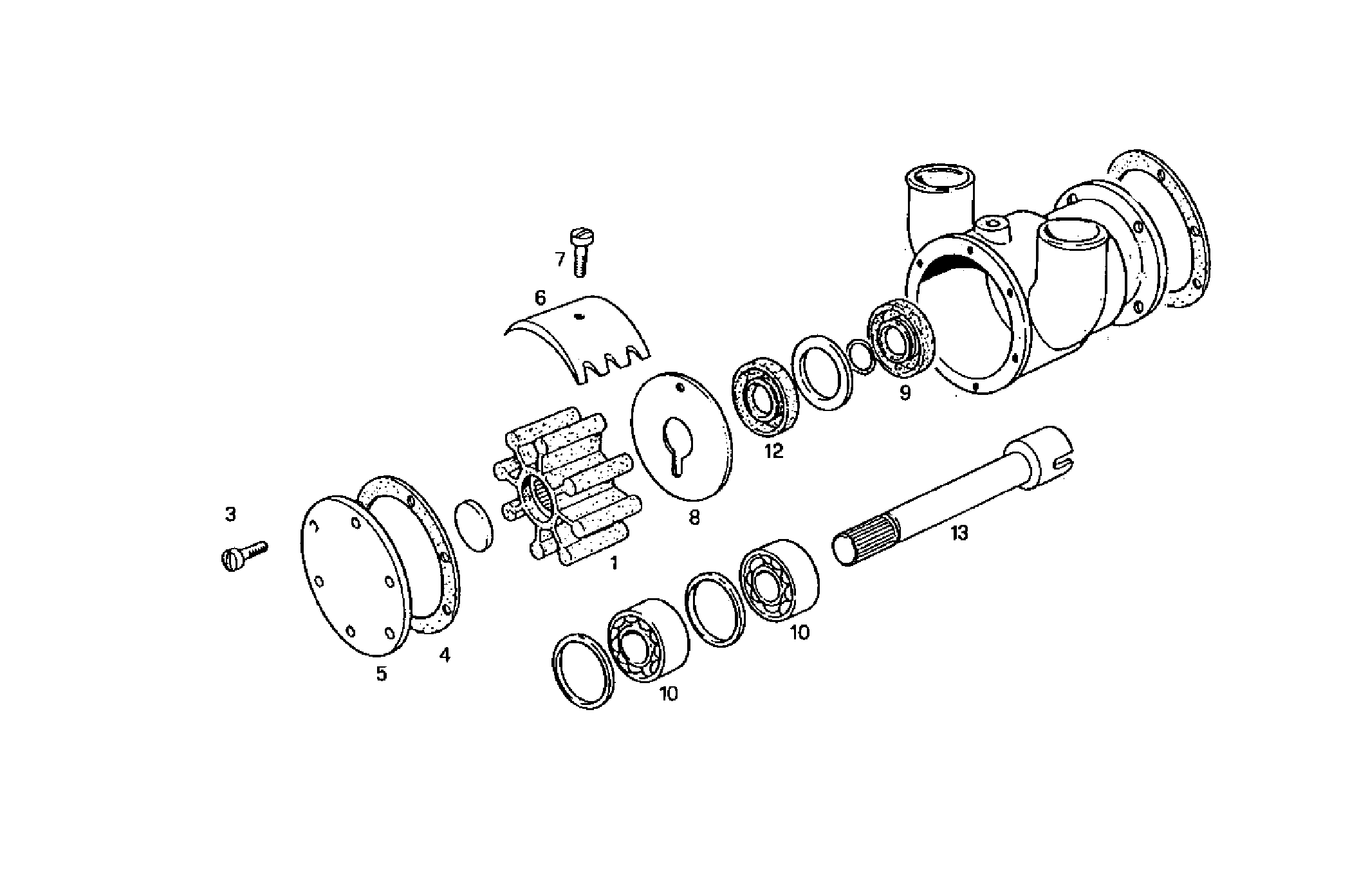

3380.001/02 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
1 | 4913429 | SEA WATER PUMP IMPELL. |
3 | 4914930 | SCREW |
4 | 8108230 | GASKET |
5 | 4914923 | COVER |
6 | 8108233 | RETAINING CAM |
7 | 4914931 | SCREW |
8 | 8108235 | WASHER |
9 | 8112167 | WASHER |
10 | 8108240 | DRIVE BEARING |
13 | 8108241 | SHAFT |
