8041M09.01

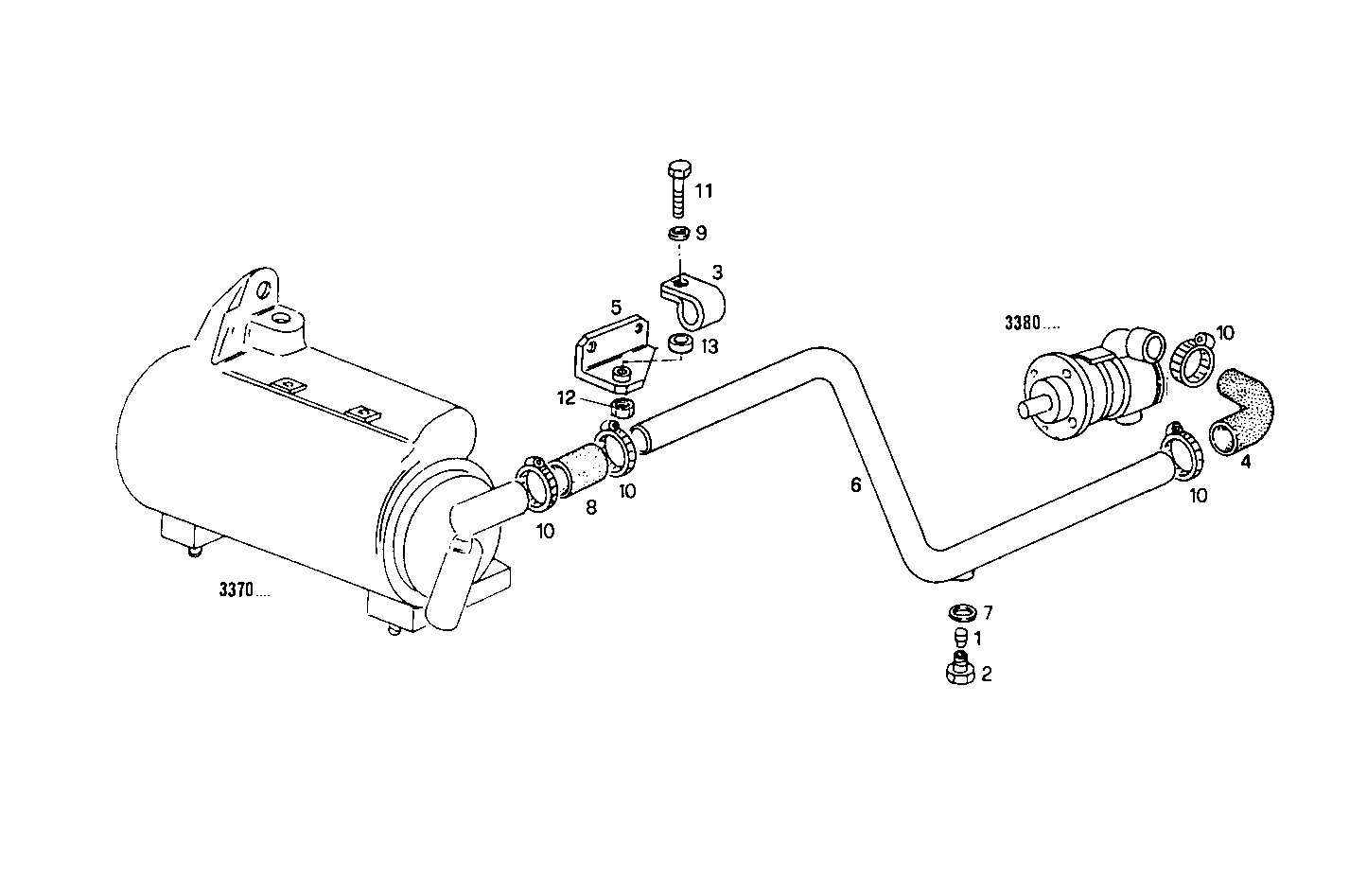

3390.005 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 2 | 4917793 | PLUG M18 |
| 3 | 4936741 | CLIP |
| 4 | 8100546 | RUBBER SLEEVE |
| 5 | 8108086 | RETAINER |
| 6 | 8007980 | WATER PIPE |
| 7 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 8 | 4927830 | RUBBER SLEEVE |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 17764793 | CLIP Ø32/50 MM |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 4930712 | SPACING BAR |
