8041M09.01

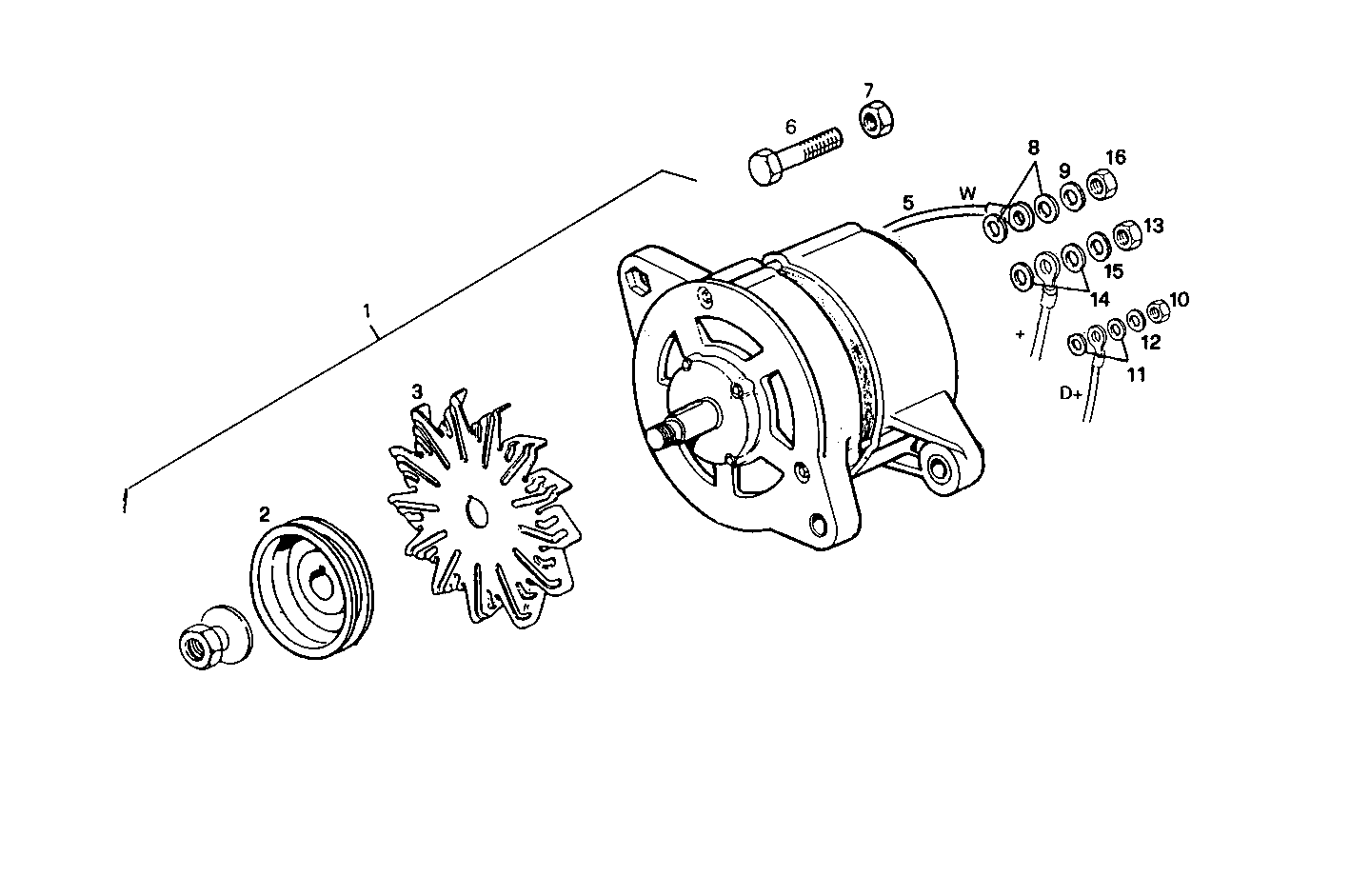

A14120027 SELF-REGULATED ALTERNATOR - 24V 55A (W)
Item |
Part number |
Description |
1 |
8019532 |
ALTERNATOR ASSY |
2 |
4808603 |
GENERATOR PULLEY |
3 |
4757196 |
GENERATOR FAN BOSCH |
5 |
8019531 |
WIRE/CABLE W |
6 |
11306921 |
SCREW M10X1,25X30 |
7 |
17038221 |
HEXAGON NUT M10 |
8 |
17094504 |
WASHER Ø5,3X10 MM |
9 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
10 |
17037621 |
HEXAGON NUT M4 |
11 |
17094204 |
WASHER Ø4X8X0,8 MM |
12 |
10615279 |
WASHER Ø4 MM |
13 |
17037931 |
HEXAGON NUT M8X1,25 |
14 |
17094914 |
WASHER 8x16 |
15 |
17494834 |
WASHER Ø8 MM |
16 |
17037721 |
NUT M5X0,8 |
