8041M09.01

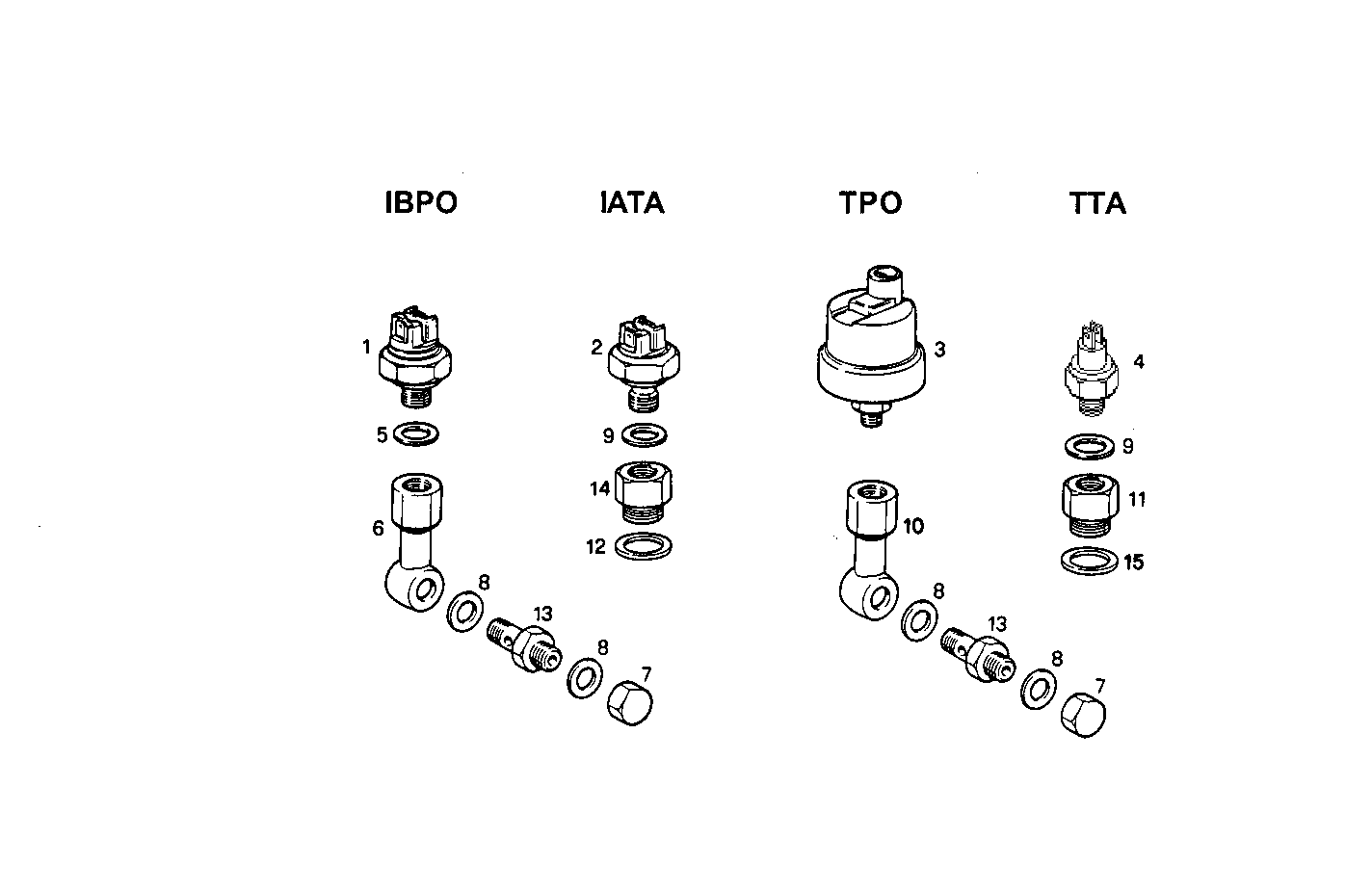

A38550052 SENDER UNITS FOR INSTRUMENTS - two poles system - 12/24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8020872 | TRANSMITTER IBPO |
| 2 | 8019334 | TRANSMITTER IATA |
| 3 | 8100417 | TRANSMITTER TPO |
| 4 | 8100418 | TRANSMITTER TTA |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 4928011 | PIPE SOCKET |
| 7 | 11902117 | PLUG M10X1,25 |
| 8 | 4858606 | GASKET Ø10X14X1 MM |
| 9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 10 | 4927546 | PIPE SOCKET |
| 11 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 4607792 | SCREW CONNECTOR |
| 14 | 4927760 | PIPE SOCKET M22X1,5 |
| 15 | 10263460 | WASHER Ø22X28X1,5 MM |
