8041M09.01

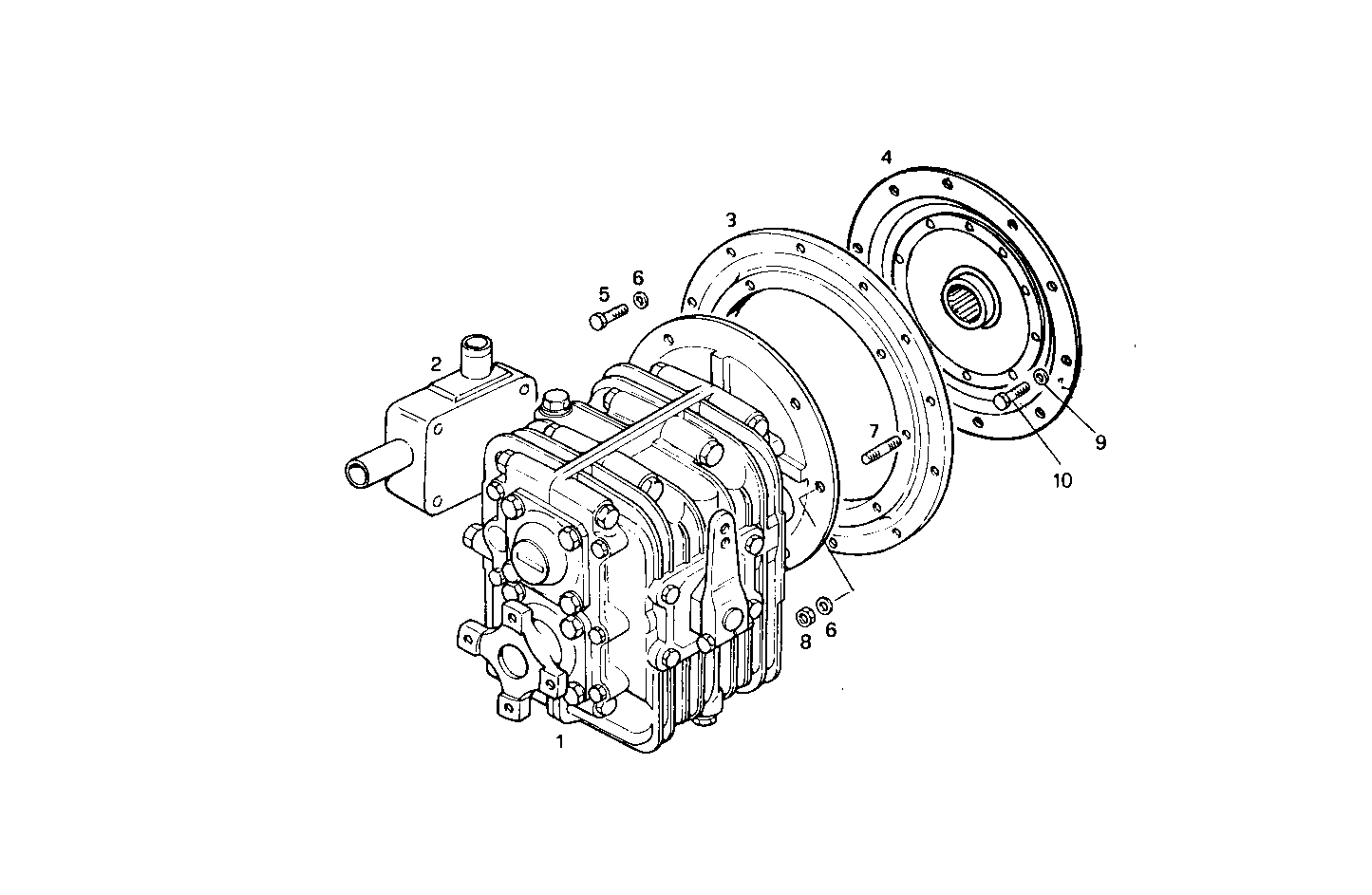

A51320008/01 MARINE GEAR HURTH HBW 250 - ratio 1.88:1
Item | Part number | Description |
---|---|---|
1 | 8101591 | MARINE GEAR 1,88:1 |
2 | 8100517 | MARINE GEAR OIL HEAT EXCH |
3 | 4934782 | COUPLING BELL |
4 | 8005343 | FLEXPLATE |
5 | 11198371 | SPRING WASHER Ø10X20 MM |
6 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
7 | 13546321 | STUD M10X25 MM |
8 | 12167411 | NUT |
9 | 10571871 | SPRING WASHER Ø10,2X18,1 MM |
10 | 15970521 | HEXAGON BOLT M10X20 MM |
