8041M09.01

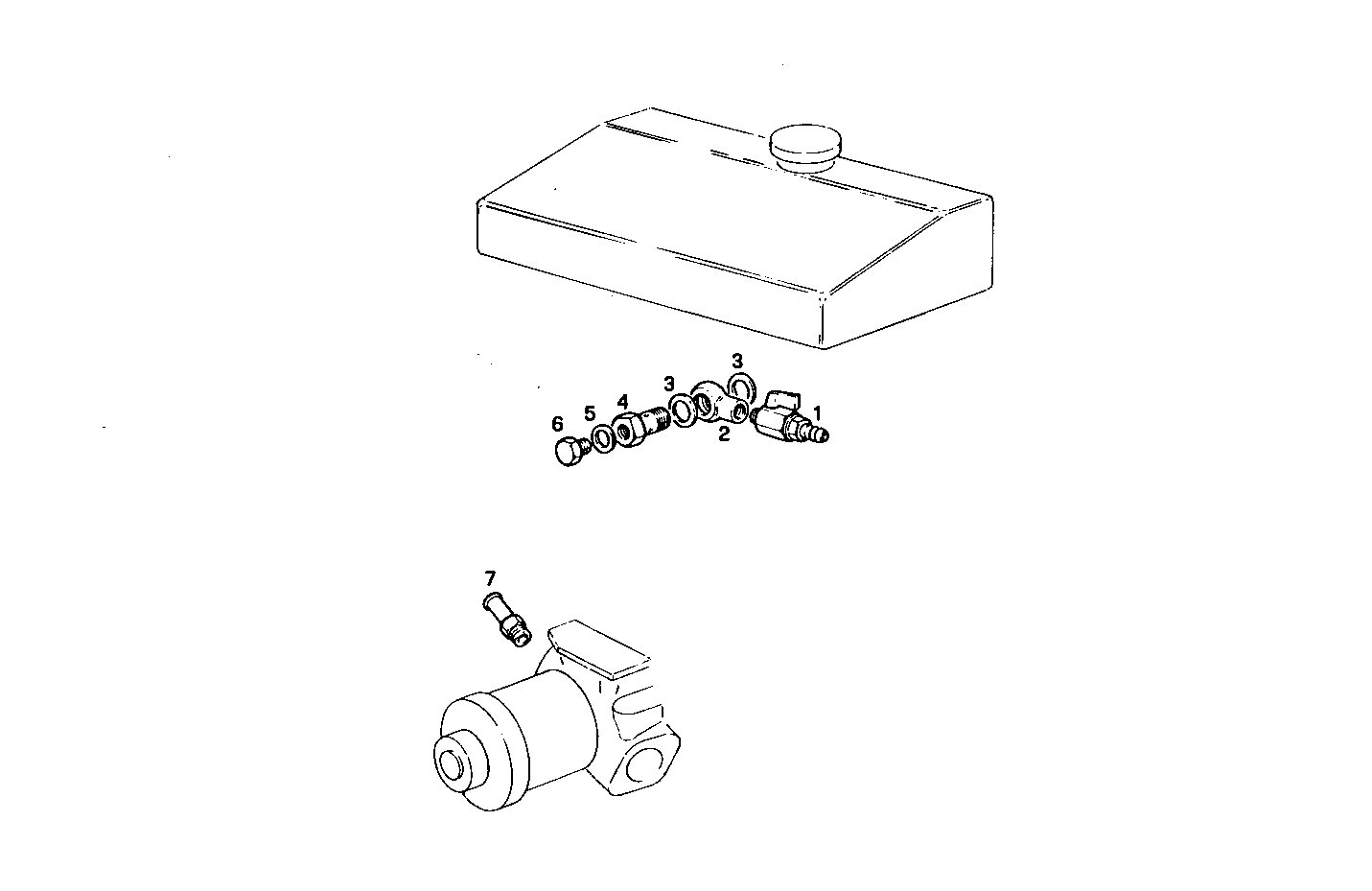

A80000013 PREARRANGEMENT FOR CALORIFIER - with sender units

Iveco/FPT PREARRANGEMENT FOR CALORIFIER

Item Part number Description
1 8113932 DRAIN COCK
2 4927516 PIPE SOCKET
3 10279560 SEAL GASKET Ø22,2 MM
4 4928361 SCREW CONNECTOR
5 10282460 SEAL GASKET Ø14X20 MM
6 10300640 LOCK PLUG M14X1,5
7 4601938 THREADED UNION
