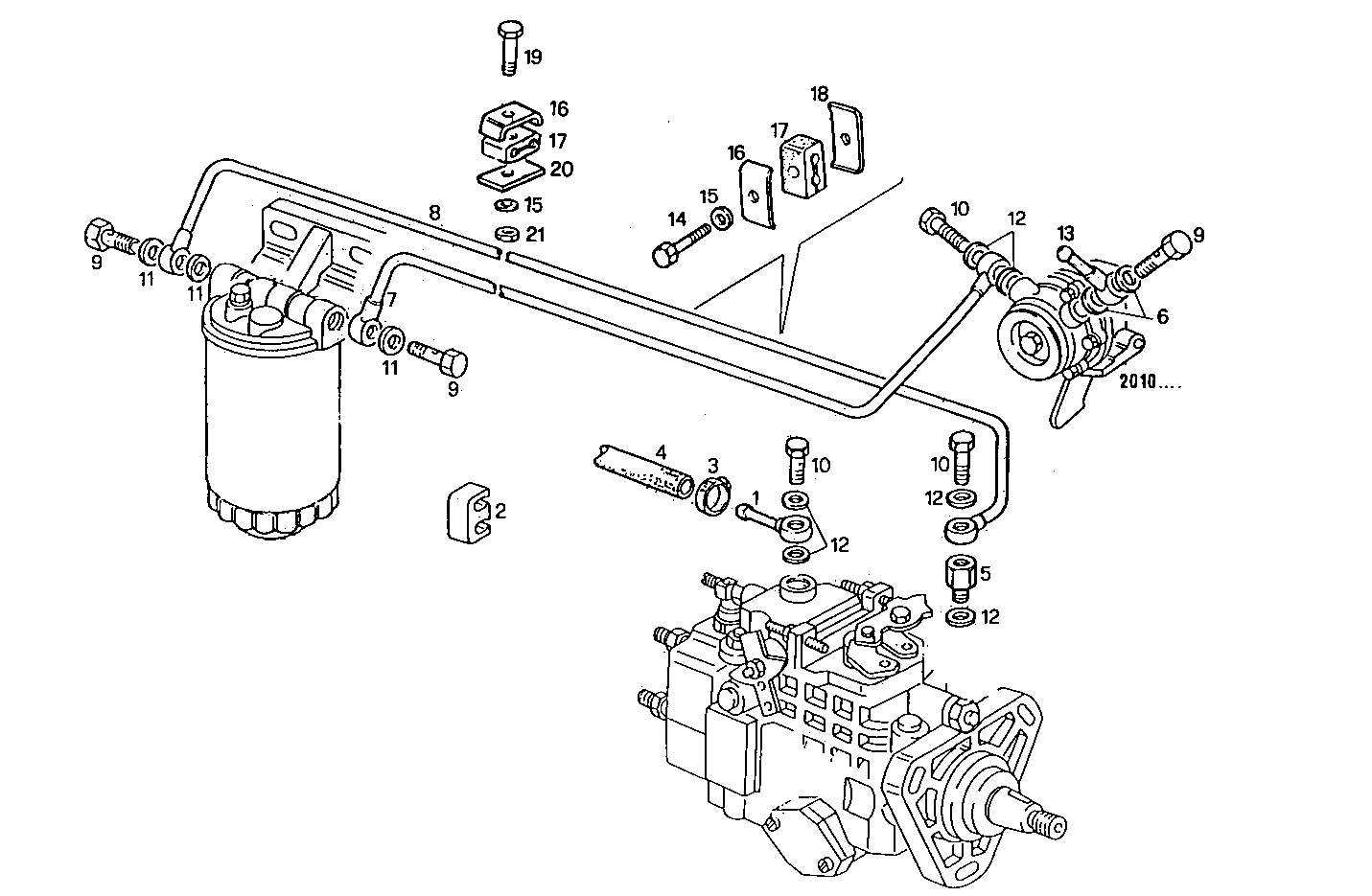

Item |
Part number |
Description |
1 |
4789860 |
BANJO COUPLING 1C [up to 31-08-02] |
2 |
4807808 |
RETAINER |
3 |
18088192 |
CLIP m10-16 |
4 |
17724587 |
RUBBER HOSE Ø7,5X14,5 MM |
5 |
4802434 |
THREADED UNION M12X1,5 |
6 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
7 |
8024154 |
FUEL LINE |
8 |
8024155 |
FUEL LINE |
9 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
10 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
11 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
12 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
13 |
98416591 |
SWIVEL COUPLING |
14 |
16602324 |
HEXAGON BOLT M5X25 MM |
15 |
11199279 |
SPRING WASHER Ø5X10X0,5 MM |
16 |
4659218 |
CLIP |
17 |
4659217 |
DOWEL |
18 |
4659219 |
PLATE |
19 |
16602524 |
SCREW |
20 |
8017675 |
RETAINER |
21 |
17037721 |
NUT M5X0,8 |
22 |
8034088 |
BANJO COUPLING D [from 01-09-02] |
