8041M09.40

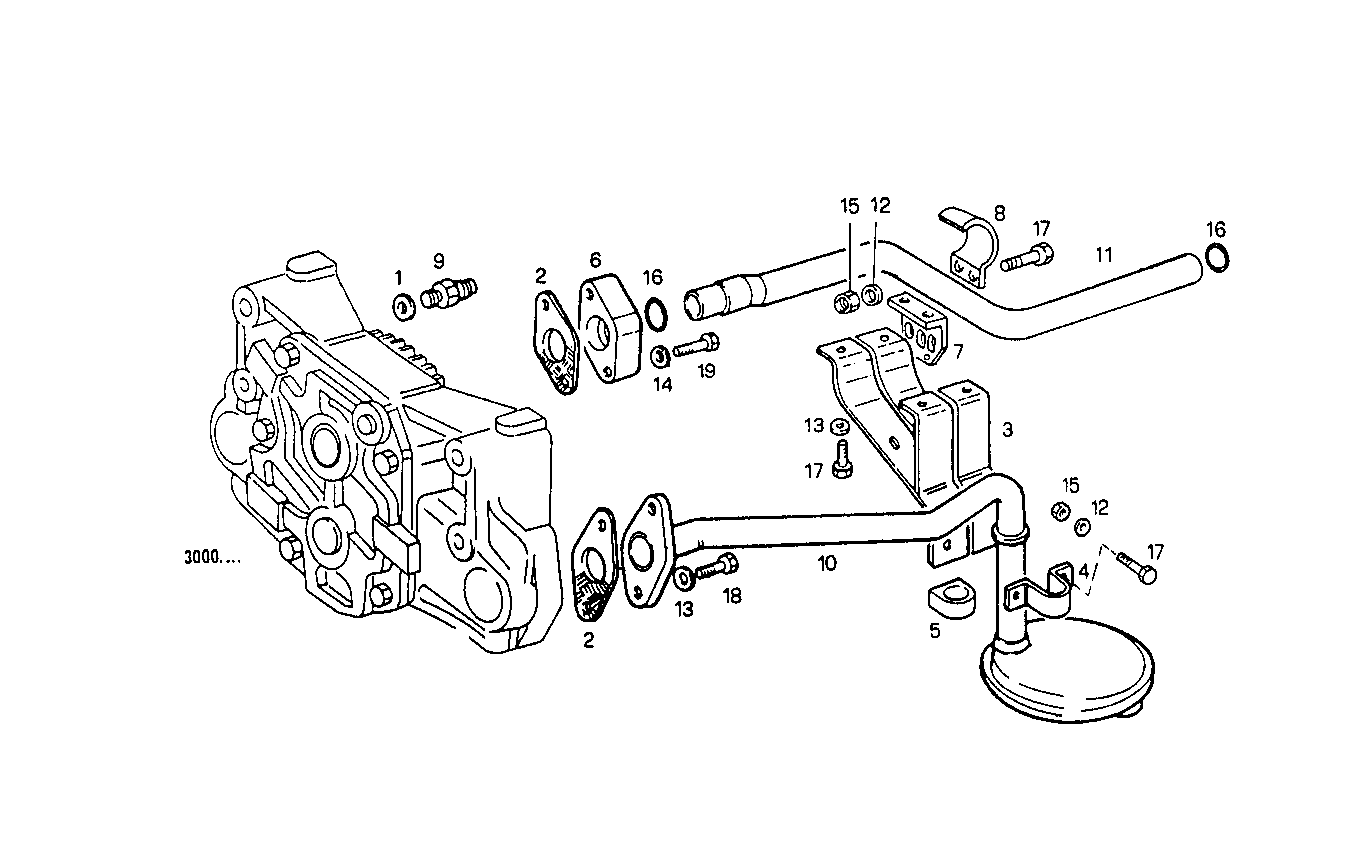

3010.012 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 561293 | O-RING |
| 2 | 4852561 | FLAT ENGINE GASKET |
| 3 | 4739213 | RETAINER |
| 4 | 4719705 | RETAINER |
| 5 | 4719706 | RUBBER PAD |
| 6 | 4773265 | FLANGED SOCKET |
| 7 | 4775923 | FASTENING BRACKET |
| 8 | 4777690 | CLIP |
| 9 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 10 | 4810504 | SUCTION STRAINER |
| 11 | 4807944 | OIL LINE |
| 12 | 17094914 | WASHER 8x16 |
| 13 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 14 | 17090271 | WASHER Ø10X20X2,6 MM |
| 15 | 17157021 | NUT M8X1,25 |
| 16 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
| 17 | 16043224 | SCREW M8X16 MM |
| 18 | 16043521 | SCREW M8X22 |
| 19 | 16605824 | HEXAGON BOLT M8X35 MM |
