8041M09.40

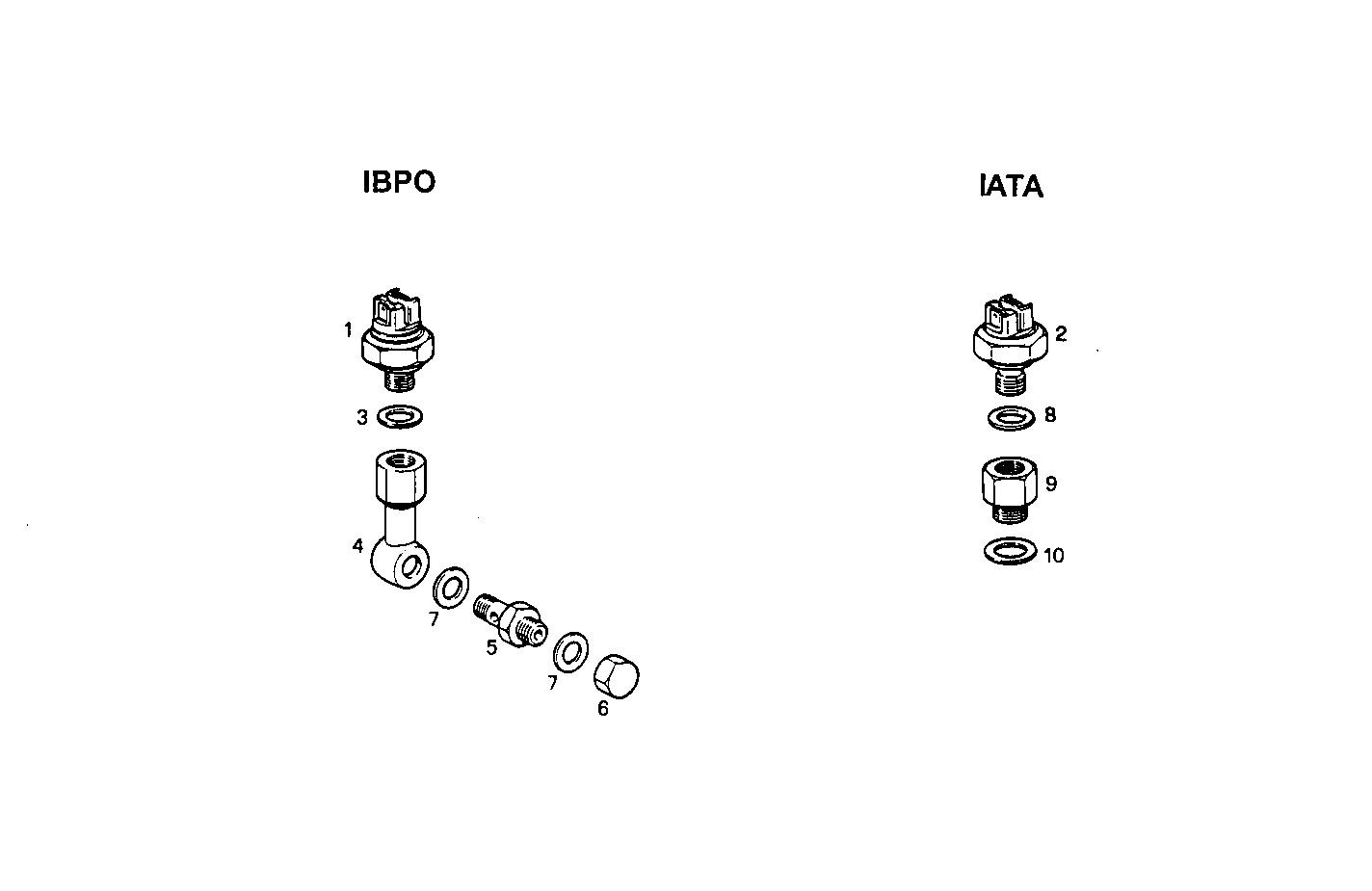

A38210004 SENDER UNITS HWT/LOP TWO POLES SYSTEM
Item | Part number | Description |
---|---|---|
1 | 8020872 | TRANSMITTER IBPO |
2 | 8019334 | TRANSMITTER IATA |
3 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
4 | 4928011 | PIPE SOCKET |
5 | 4607792 | SCREW CONNECTOR |
6 | 11902117 | PLUG M10X1,25 |
7 | 4858606 | GASKET Ø10X14X1 MM |
8 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
9 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
10 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
