8041M09.40

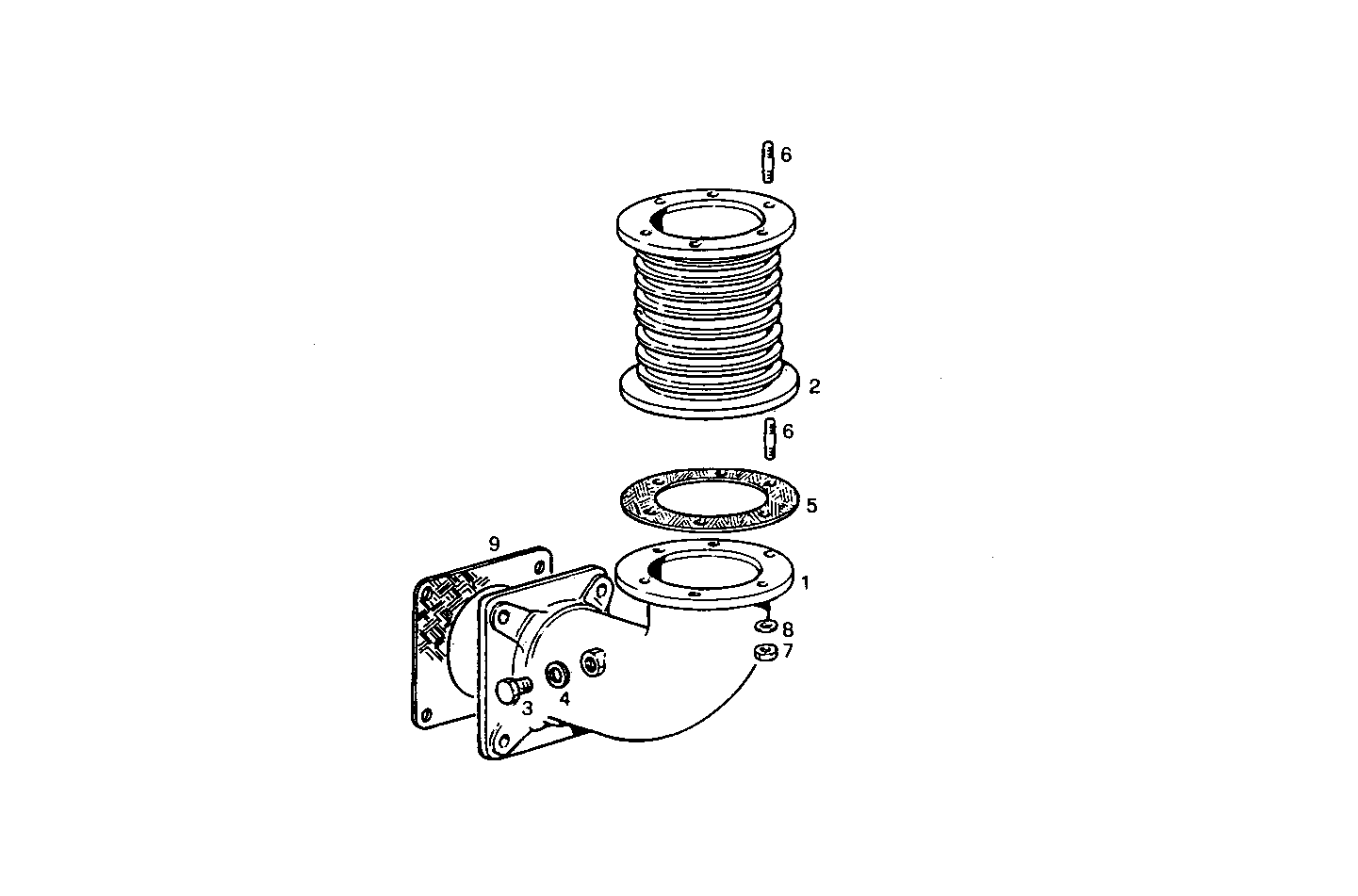

A40030006 UPWARD REAR EXHAUST ELBOW

Iveco/FPT UPWARD REAR EXHAUST ELBOW

Item Part number Description
1 8005673 EXHAUST ELBOW
2 4935378 EXHAUST BELLOWS
3 16992211 THREADED PLUG M12X1,5
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 8009606 GASKET
6 13516921 STUD M8X12X22 MM
7 17037931 HEXAGON NUT M8X1,25
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 8009823 GASKET
