8041M09.42

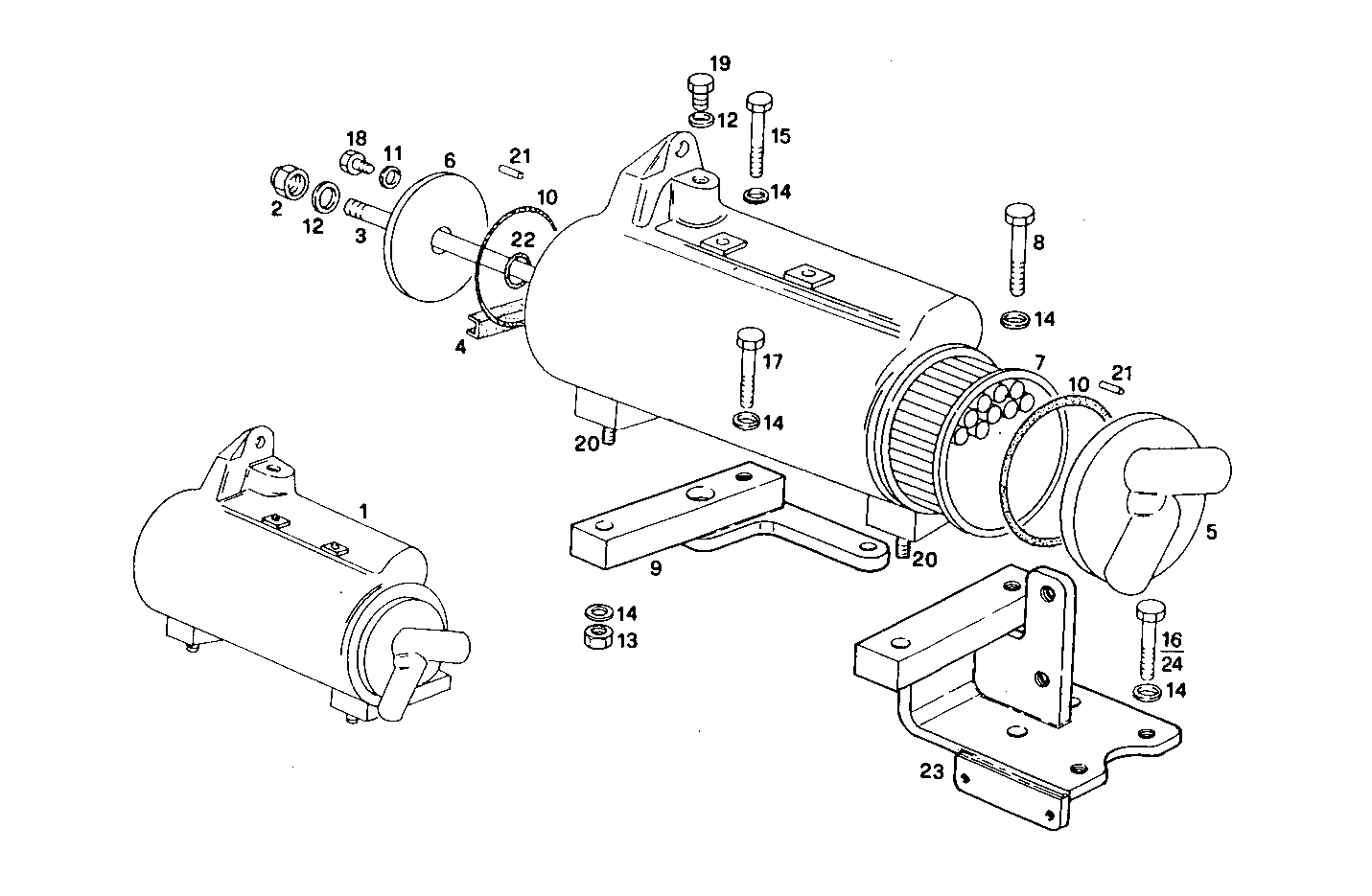

3370.008 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 4933782 WATER/SEA WATER HEAT EXCH ASSY
2 14056240 NUT M12X1,25
3 4919239 TIE ROD
4 4927193 GASKET
5 4927722 HEAT EXCHANG.COVER REAR
6 4927723 HEAT EXCHANG.COVER FRONT
7 4931141 TUBE STACK
8 16608724 HEXAGON BOLT M10X90 MM
9 8020106 SUPPORT
10 4918846 O-RING
11 10284460 SEAL GASKET Ø10X16 MM
12 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
13 17038221 HEXAGON NUT M10
14 17090174 SPRING WASHER Ø10X20 MM
15 16608324 HEXAGON BOLT M10X1,5X60 MM
16 11306921 SCREW M10X1,25X30
17 15970921 HEXAGON BOLT M10X1,25X35 MM
18 11903140 PLUG M10X1,25
19 11903240 PLUG M12
20 13449824 STUD M10X1,25X15 MM
21 14158570 DOWEL PIN Ø2,3 MM
22 17281681 O-RING Ø13,9 MM SP=2,6 MM
23 8020107 SUPPORT
24 15004021 HEXAGON BOLT M10X1,25X25 MM
