8041M09.42

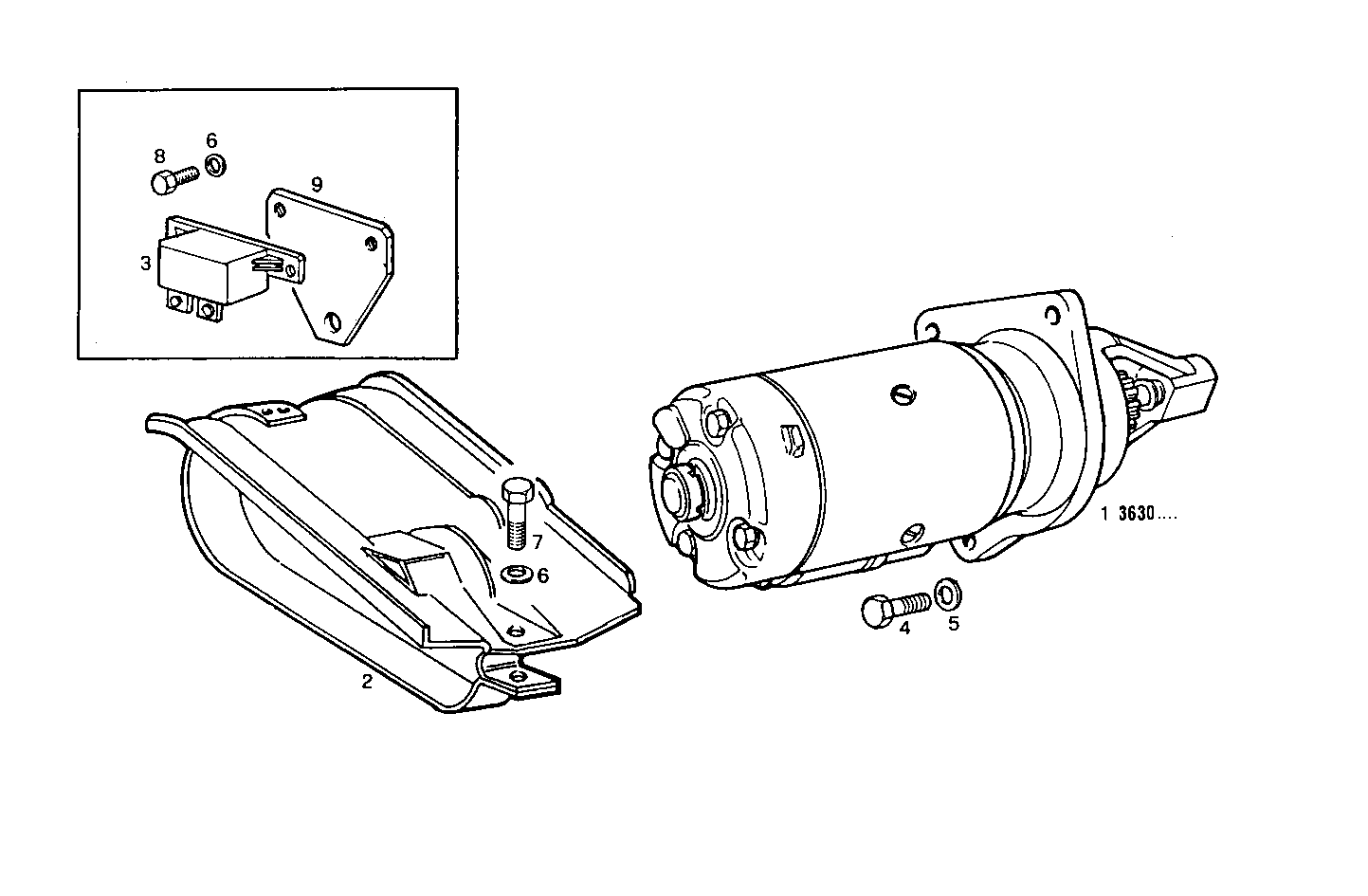

3600.037 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4807377 | STARTER MOTOR ASSY MARELLI |
| 2 | 4721863 | PROTECTION |
| 3 | 8108575 | RELAY STARTER [up to 12-90] |
| 4 | 11306921 | SCREW M10X1,25X30 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16604124 | HEXAGON BOLT M6X40 MM |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 8109257 | RETAINER |
