8041M09.42

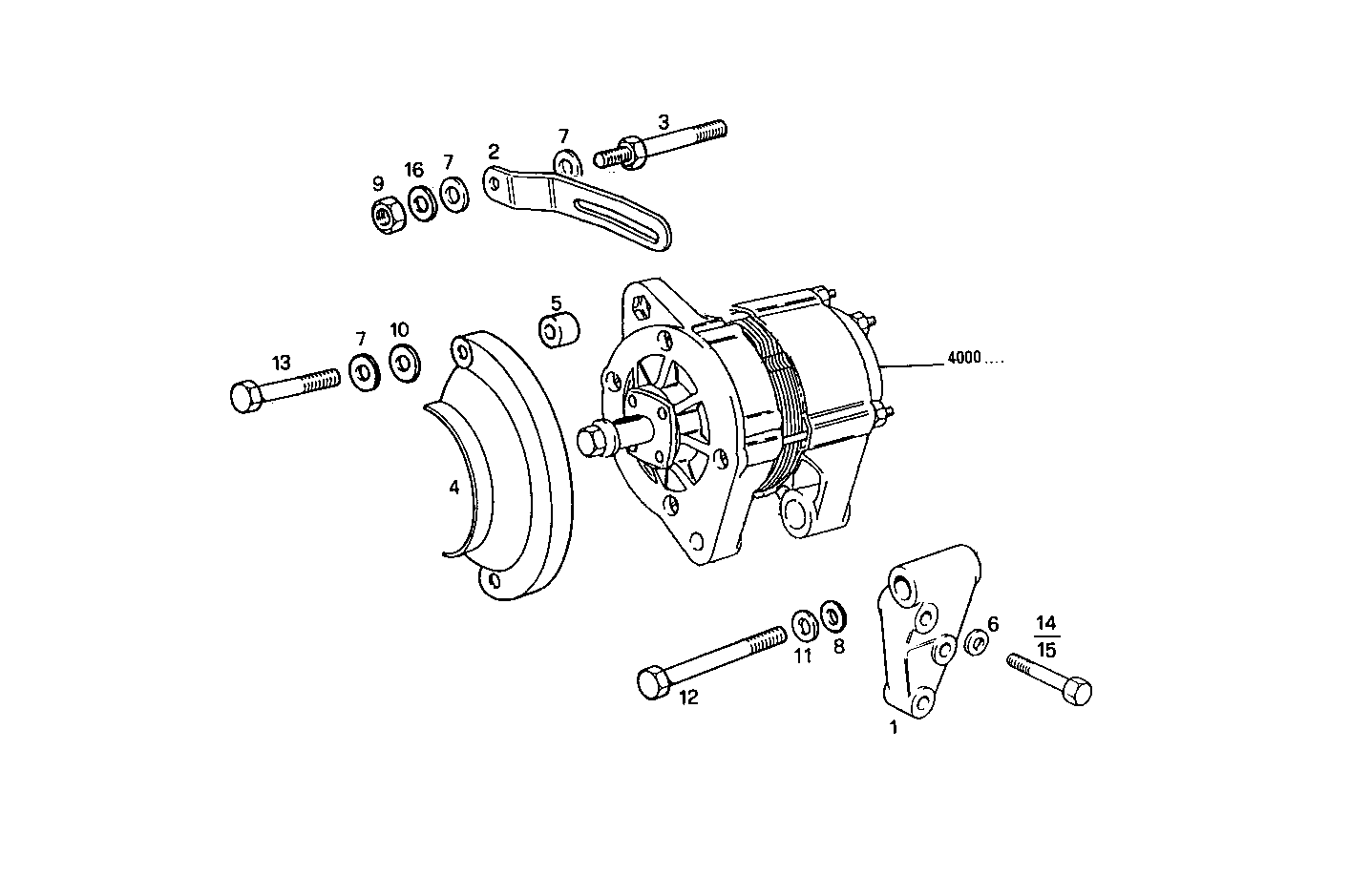

4010.097 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4677353 GENERATOR SUPPORT
2 4601576 BELT TENSIONER
3 4605854 STUD
4 4618825 PROTECTION
5 4619064 SPACING BAR
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17090174 SPRING WASHER Ø10X20 MM
8 17091074 WASHER Ø12X24X2,8 MM
9 17038221 HEXAGON NUT M10
10 17095104 WASHER Ø10X21X2 MM
11 17095304 WASHER Ø12X24 MM
12 15541921 HEXAGON BOLT M12X1,25X130 MM
13 15970921 HEXAGON BOLT M10X1,25X35 MM
14 16606224 HEXAGON BOLT M8X55 MM
15 16606024 SCREW M8X45 MM
16 17090274 WASHER Ø10X20 MM
