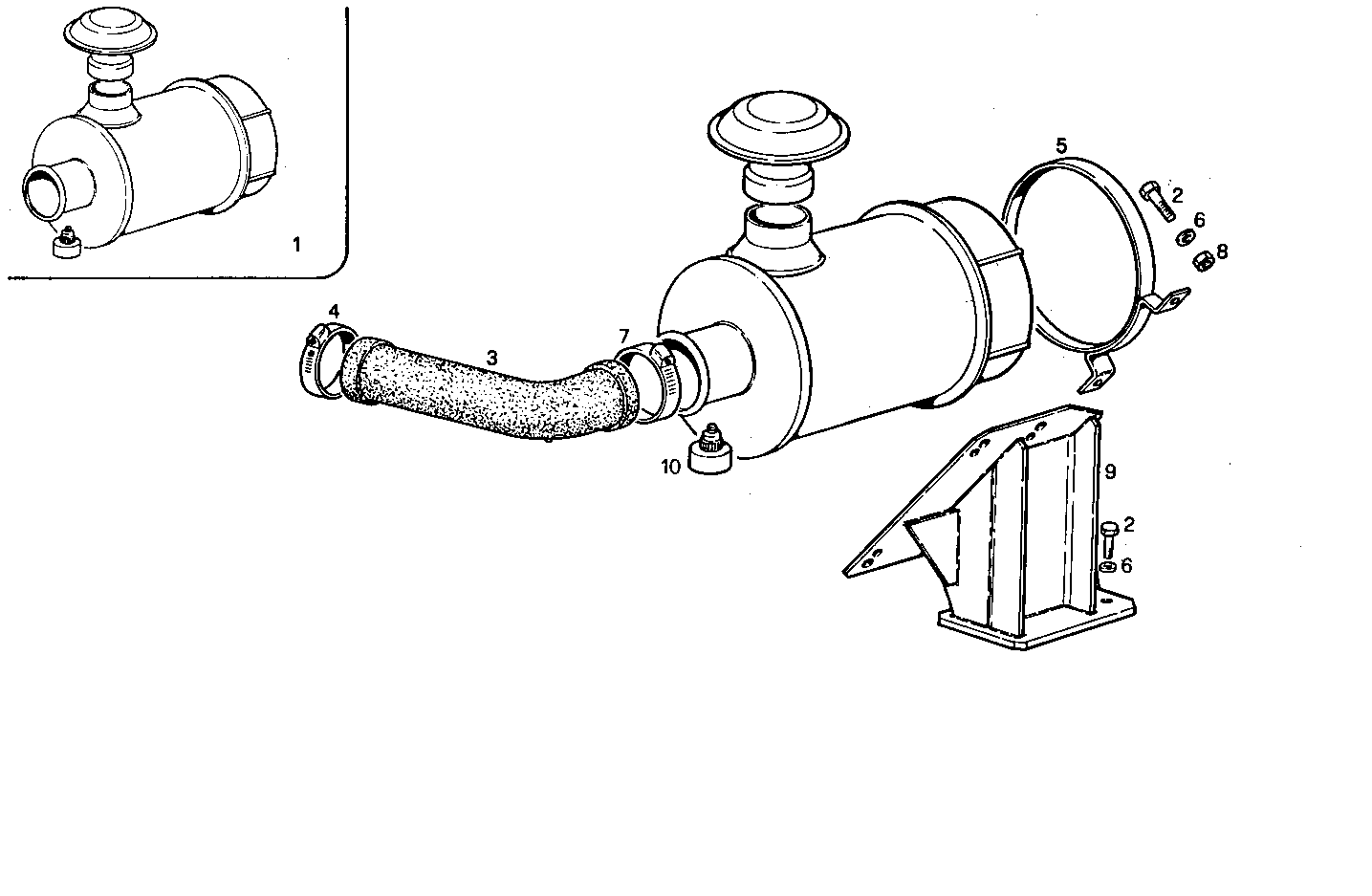

A21170001 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8109776 | AIR CLEANER ASSY |
| 2 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 3 | 8109763 | AIR HOSE |
| 4 | 17765392 | CLIP Ø90-110 MM |
| 5 | 8109415 | CLIP |
| 6 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 7 | 17765092 | CLIP Ø60-80 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 8106791 | SUPPORT |
| 10 | 4792262 | AIR PRESSURE GAUGE |
