8041Si25.55

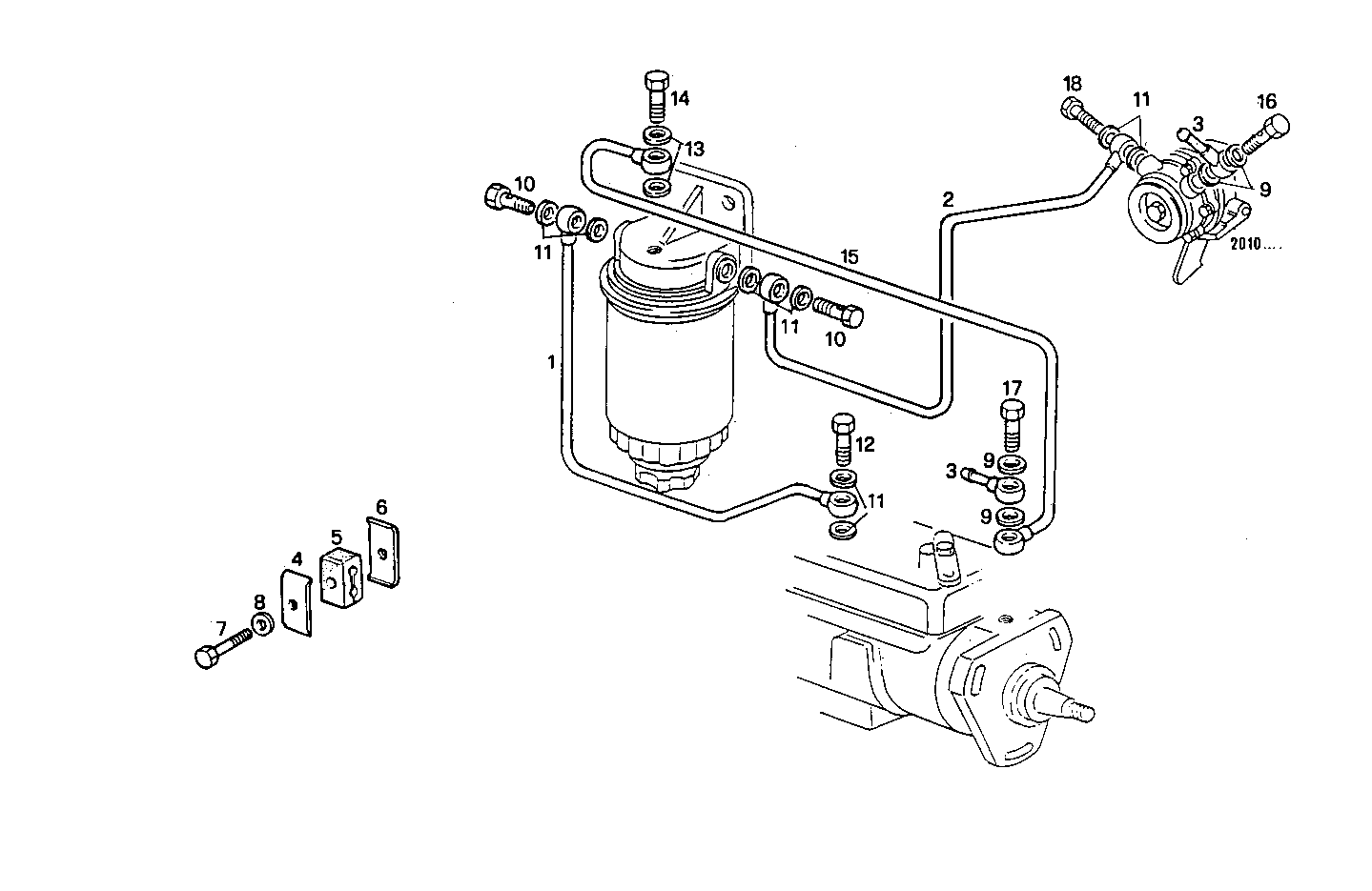

2030.038 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98420163 FUEL LINE
2 98420172 FUEL LINE
3 98416591 SWIVEL COUPLING
4 4659218 CLIP
5 4659217 DOWEL
6 4659219 PLATE
7 10978221 HEXAGON BOLT M5X25 MM
8 17494631 SPRING WASHER Ø5 MM
9 4858608 SEAL GASKET dia.14x19,5x1,5
10 4864082 BANJO BOLT M12X1,5X25 MM
11 4858607 WASHER Ø12X17 MM SP=1,5 MM
12 4864083 SCREW CONNECTOR M14X1,5X30 MM
13 4858606 GASKET Ø10X14X1 MM
14 1390713 SCREW CONNECTOR M10X1
15 98417745 FUEL LINE
16 4864080 SCREW CONNECTOR M10X1,25
17 98417532 SCREW CONNECTOR
18 98427944 SCREW CONNECTOR
