8041Si25.55

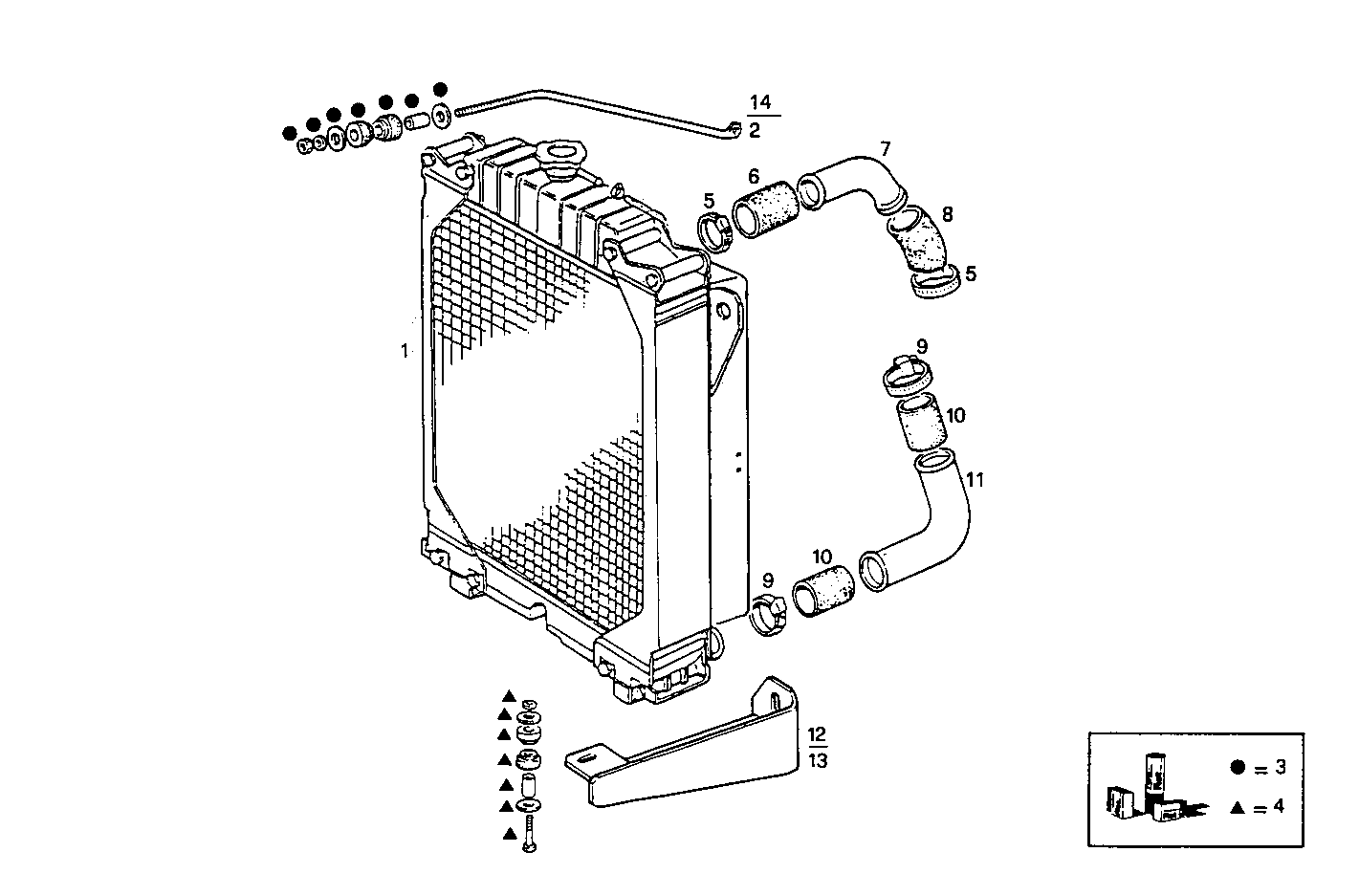

A22010024 RADIATOR FOR SETTING TILL MAX POWER - if compressor fitted
| Item | Part number | Description |
|---|---|---|
| 1 | 8009112 | WATER RADIATOR ASSY |
| 2 | 8007800 | TIE ROD RIGHT |
| 3 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
| 4 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 5 | 17764892 | PIPE CLIP Ø40-60 MM |
| 6 | 4787630 | RUBBER SLEEVE |
| 7 | 4936022 | WATER PIPE |
| 8 | 10138787 | RUBBER SLEEVE |
| 9 | 17764792 | HOSE CLIP Ø32-50 MM |
| 10 | 10136187 | RUBBER SLEEVE |
| 11 | 8007786 | WATER PIPE |
| 12 | 8105687 | SUPPORT RIGHT |
| 13 | 8105688 | SUPPORT LEFT |
| 14 | 8105713 | TIE ROD LEFT |
