8041Si25.55

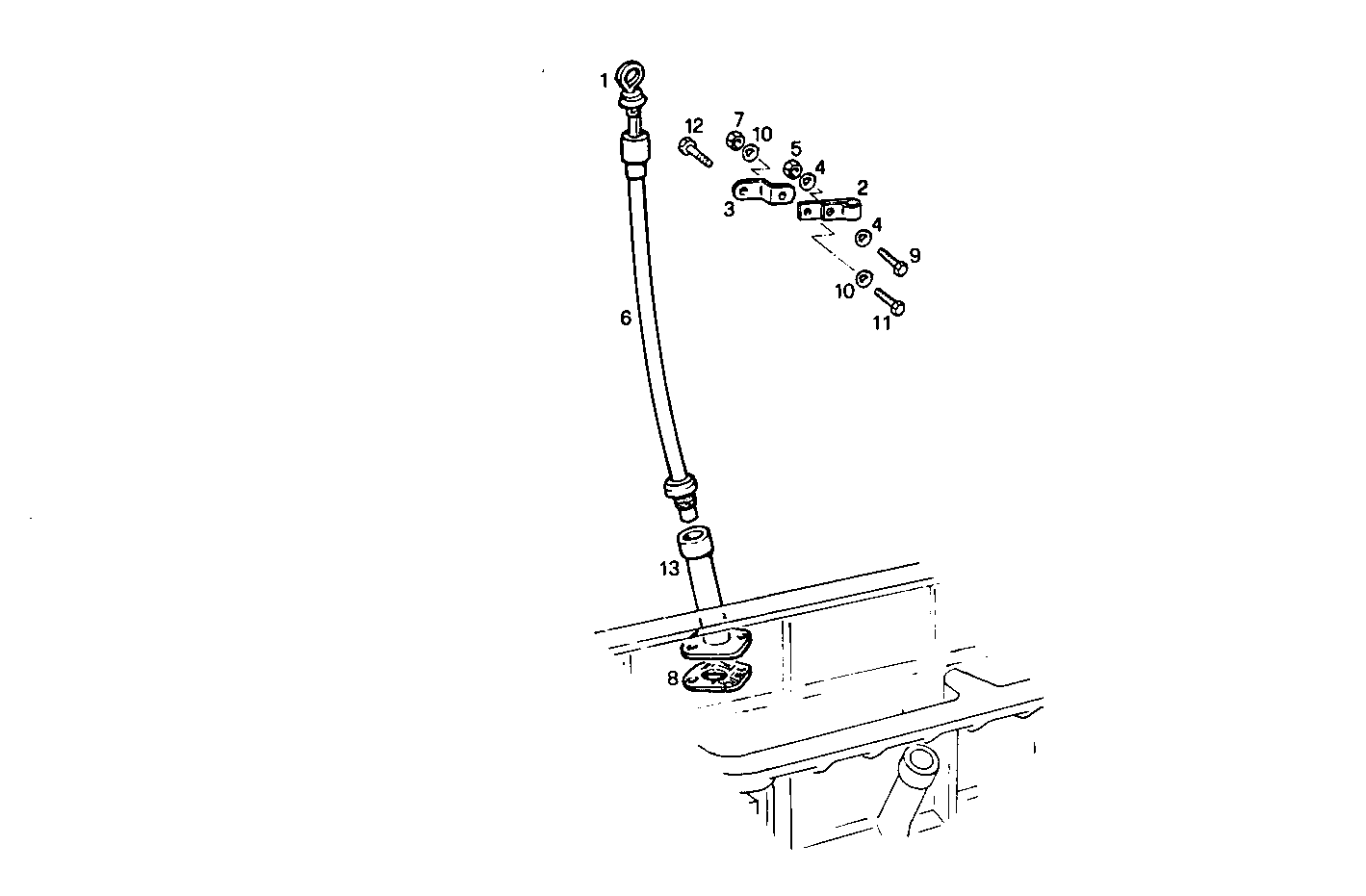

A41020005 LONG OIL DIPSTICK RIGHT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 8009361 | OIL DIPSTICK |
| 2 | 8006649 | CLIP |
| 3 | 8108989 | RETAINER |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 8109240 | ROD GUIDE |
| 7 | 15896211 | HEXAGON NUT M6 |
| 8 | 98401047 | GASKET |
| 9 | 16605324 | SCREW M8X12 |
| 10 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 11 | 10902021 | HEXAGON BOLT M6X12 MM |
| 12 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 13 | 8105454 | OIL LINE |
