8041SRM15.10

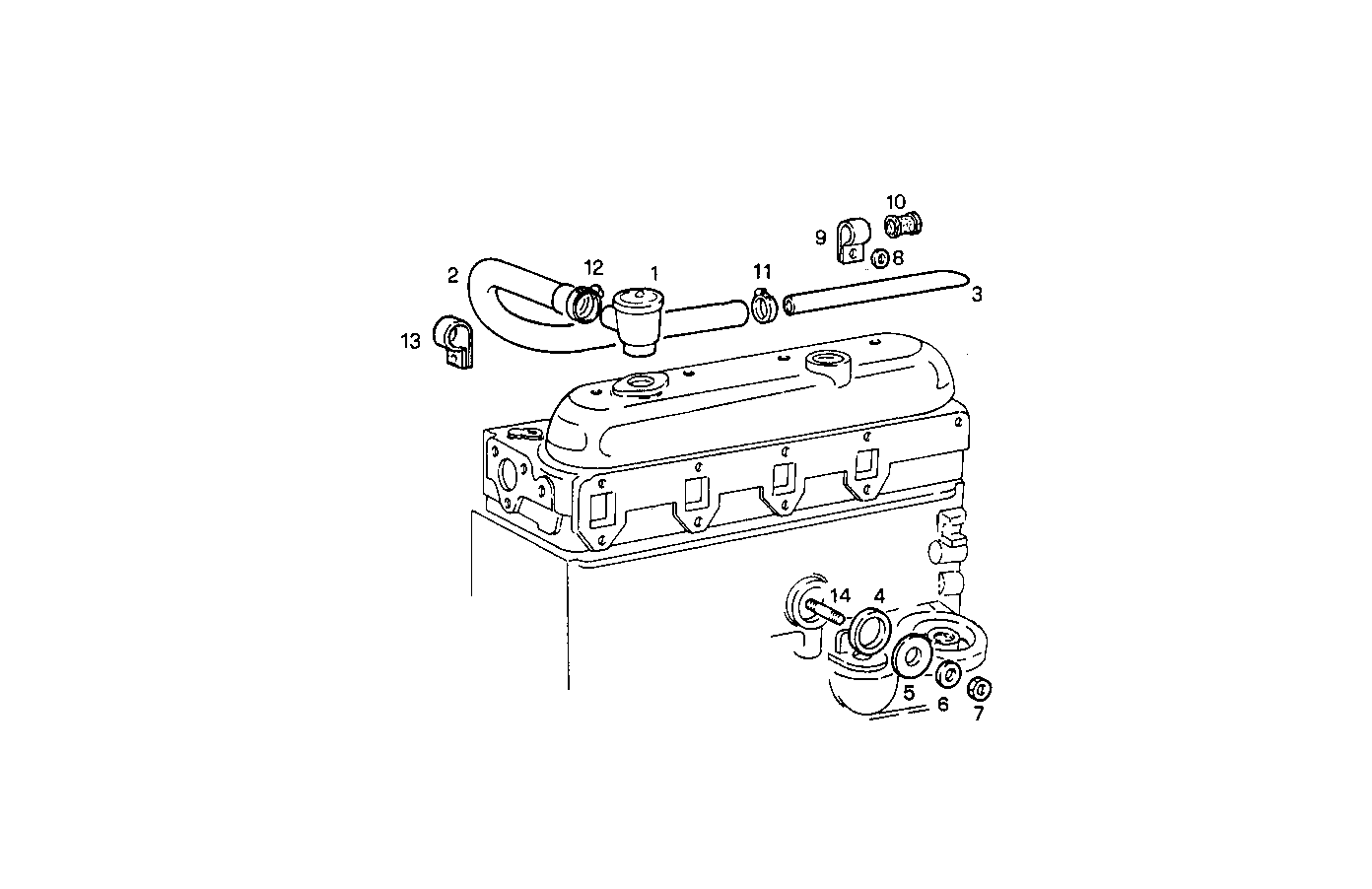

0450.022 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4812047 | BREATHER |
| 2 | 8113829 | AIR HOSE |
| 3 | 8111040 | BREATHER PIPE |
| 4 | 4600893 | GASKET |
| 5 | 8102646 | COVER |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 16104111 | HEXAGON NUT M8 |
| 8 | 16665514 | WASHER Ø8 MM |
| 9 | 4763804 | FASTENING BRACKET |
| 10 | 4757122 | RUBBER PAD |
| 11 | 17764592 | CLIP Ø20/32 MM |
| 12 | 17764691 | CLIP Ø25/40 MM |
| 13 | 17317190 | PIPE CLIP Ø24 MM |
| 14 | 13517621 | STUD M8X12X50 |
