8041SRM15.10

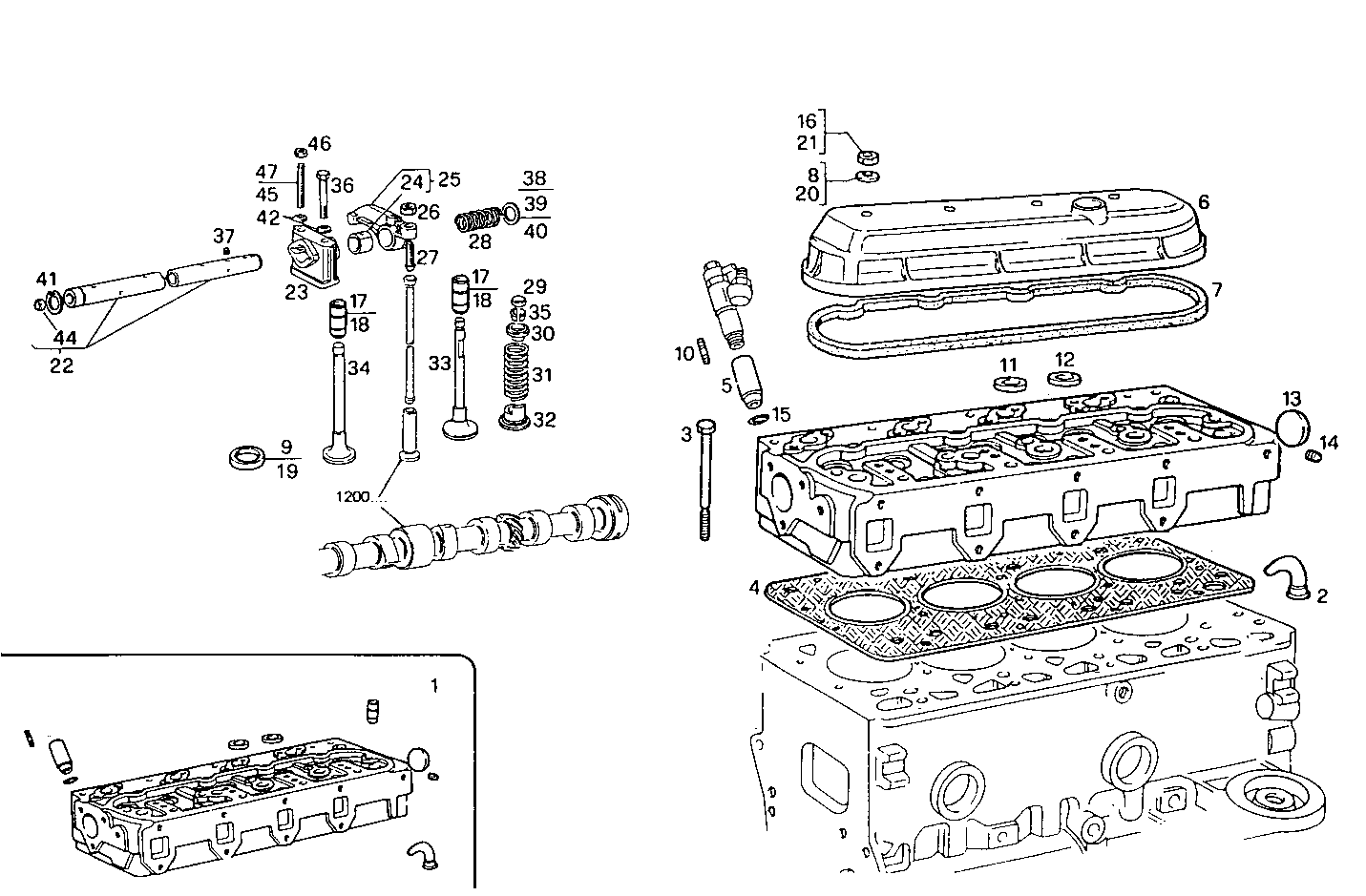

0600.011 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99452269 CYLINDER HEAD ASSY
2 4818862 WATER CONVEYOR
3 4796457 CYL.HEAD STUD
4 1907835 CYL.HEAD GASKET SP=1,35 MM
5 4770859 NOZZLE HOLDER SEAT
6 98418851 CYL. HEAD COVER
7 4845136 HEAD COVER GASKET L=1162 MM
8 98416134 WASHER [from 555940]
9 98495493 VALVE SEAT STD.
10 13517530 STUD M8X12X45
11 16990870 LOCK PLUG Ø28 MM
12 14282170 LOCK PLUG Ø20 MM
13 16991370 LOCK PLUG Ø45 MM
14 14323911 LOCK PLUG M10X1,25
15 17278981 O-RING Ø25,12 MM SP=1,78 MM
16 98417659 NUT [from 555940]
17 4802126 VALVE GUIDE
18 4802127 VALVE GUIDE +0,2
19 4803956 VALVE SEAT +0.05
20 10519660 WASHER Ø8X17 MM [up to 555939]
21 17152821 NUT M8 [up to 555939]
22 4842403 ROCKER SHAFT ASSY
23 4601295 ROCKER BRACKET
24 4682937 BUSH
25 4848973 ROCKER ARM ASSY
26 4338920 ADJUSTING NUT
27 4699783 ROCKER ARM SCREW
28 4601296 ROCKER ARM SPRING
29 4838680 VALVE CAP
30 4780558 SPRING CAP TOP
31 4812347 ENGINE VALV.SPRING
32 4817424 SPRING CAP BOTTOM
33 1908408 INLET VALVE
34 1908409 EXHAUST VALVE
35 4819891 VALVE CONE
36 16606424 HEXAGON BOLT M8X65 MM
37 4846851 SPIGOT SCREW
38 4639661 SUPPORT RING SP=1 MM
39 4570798 SUPPORT RING SP=0,7 MM
40 4570799 SUPPORT RING SP=0,5 MM
41 11066676 CIRCLIP Ø18 MM
42 17094901 WASHER Ø8,4 MM
44 14328301 LOCK PLUG Ø12 MM
45 98458149 STUD [from 608189]
46 17037931 HEXAGON NUT M8X1,25
47 16729224 STUD M8X16 MM
