8041SRM15.10

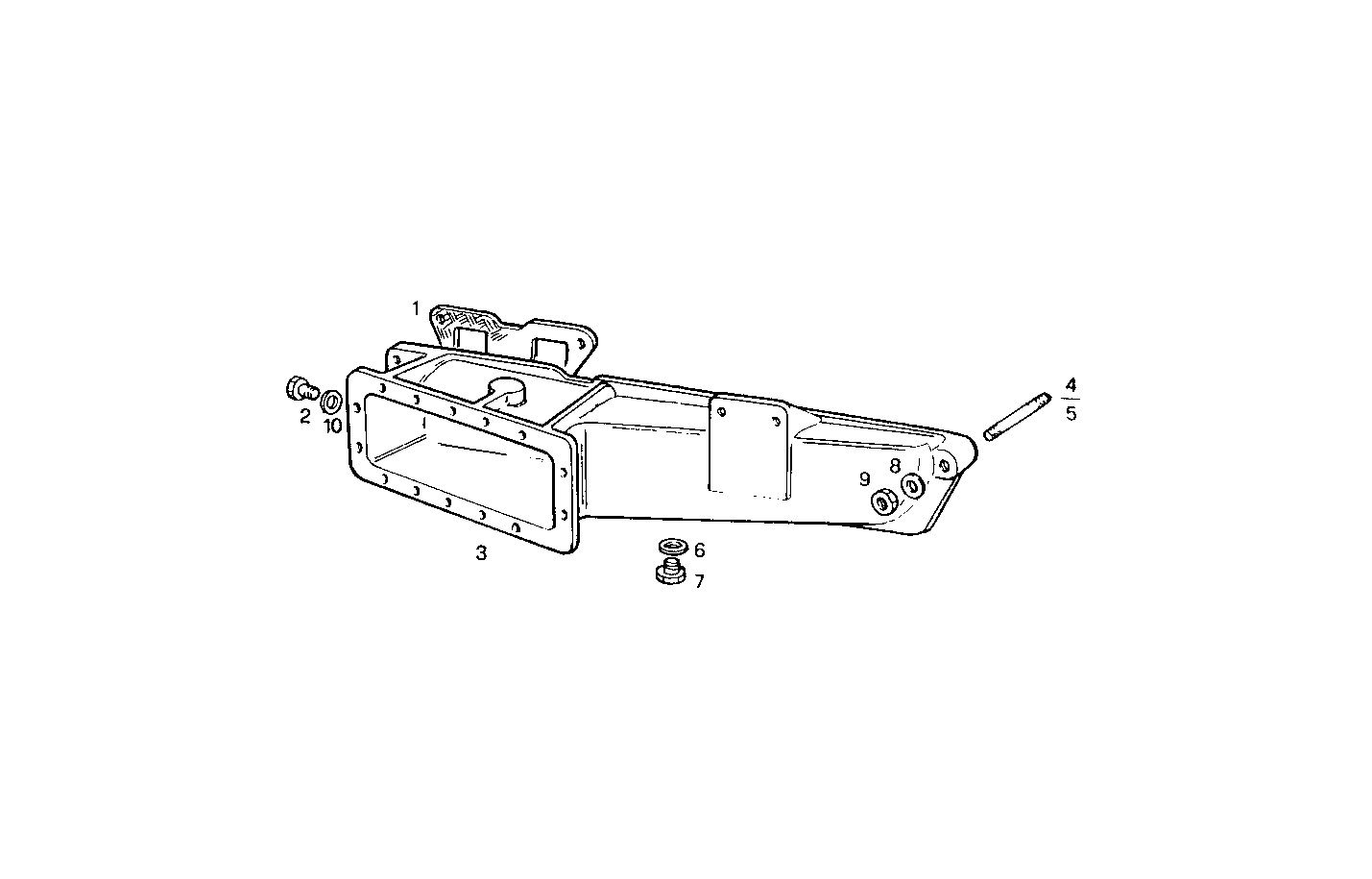

0710.009 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4851921 | INTAKE ELBOW GASK. |
| 2 | 4584394 | PLUG 1/2'' |
| 3 | 8108696 | INTAKE ELBOW |
| 4 | 16729724 | STUD M8X40 MM |
| 5 | 16729424 | STUD M8X1,25X25 |
| 6 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 7 | 16992540 | PLUG M18X1,5 |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 11271460 | GASKET Ø21X26X1,5 MM |
