8041SRM15.10

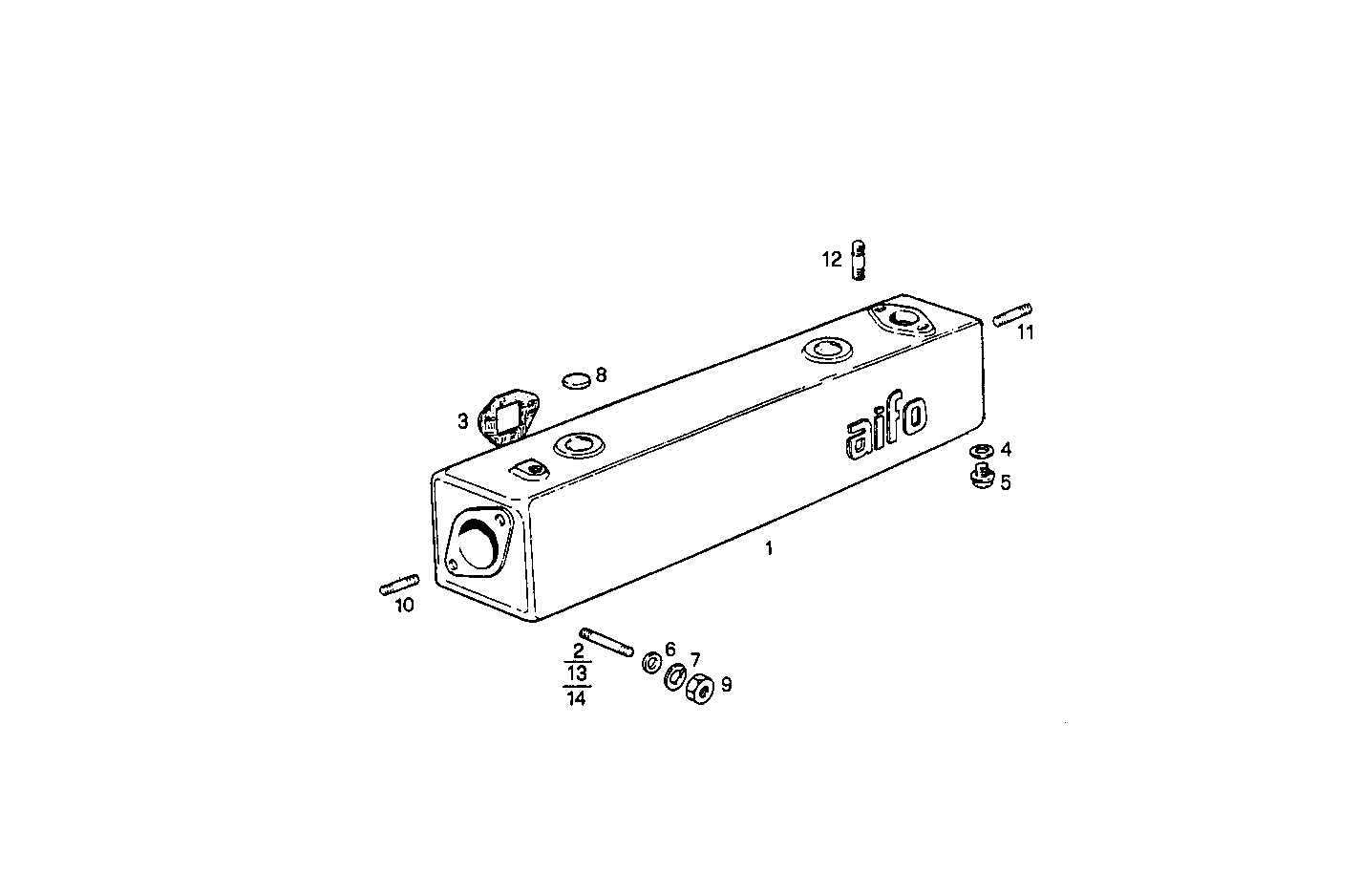

0760.030 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8111086 | COOLED EXHAUST MANIF. |
| 2 | 16730434 | STUD M8X12X80 |
| 3 | 98489690 | EXH. MANIFOLD GKT |
| 4 | 4858606 | GASKET Ø10X14X1 MM |
| 5 | 11903140 | PLUG M10X1,25 |
| 6 | 17793804 | WASHER Ø8X21X1,5 MM |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 16991170 | LOCK PLUG Ø36 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 13516821 | STUD M8X12X20 MM |
| 11 | 13453821 | STUD M10X25X35 MM |
| 12 | 16729424 | STUD M8X1,25X25 |
| 13 | 13517330 | STUD M8X12X35 |
| 14 | 13952230 | STUD M18X12X85 |
