8041SRM15.10

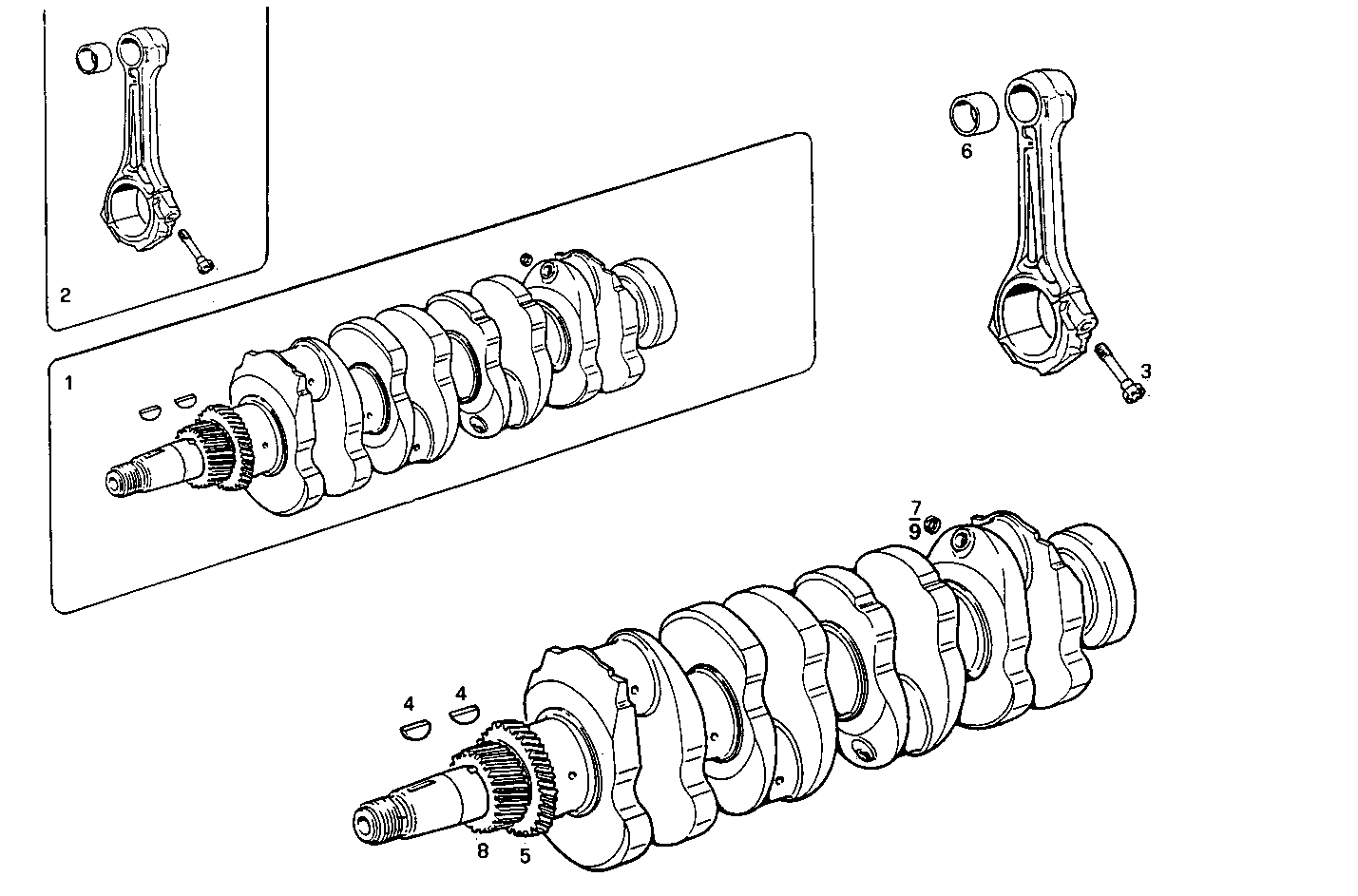

0800.009 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 4818544 CRANK SHAFT ASSY
2 98461753 CONN.ROD ASSY. ASSY
3 4780627 BIG-END BOLT
4 4655844 KEY
5 4770255 OIL PUMP DRIV.GEA
6 98459977 BIG-END BUSH VANDERVELL
7 14328101 LOCK PLUG Ø8 MM
8 4818545 CAMSHAFT PINION
9 16987501 LOCK PLUG Ø7 MM
