8041SRM15.10

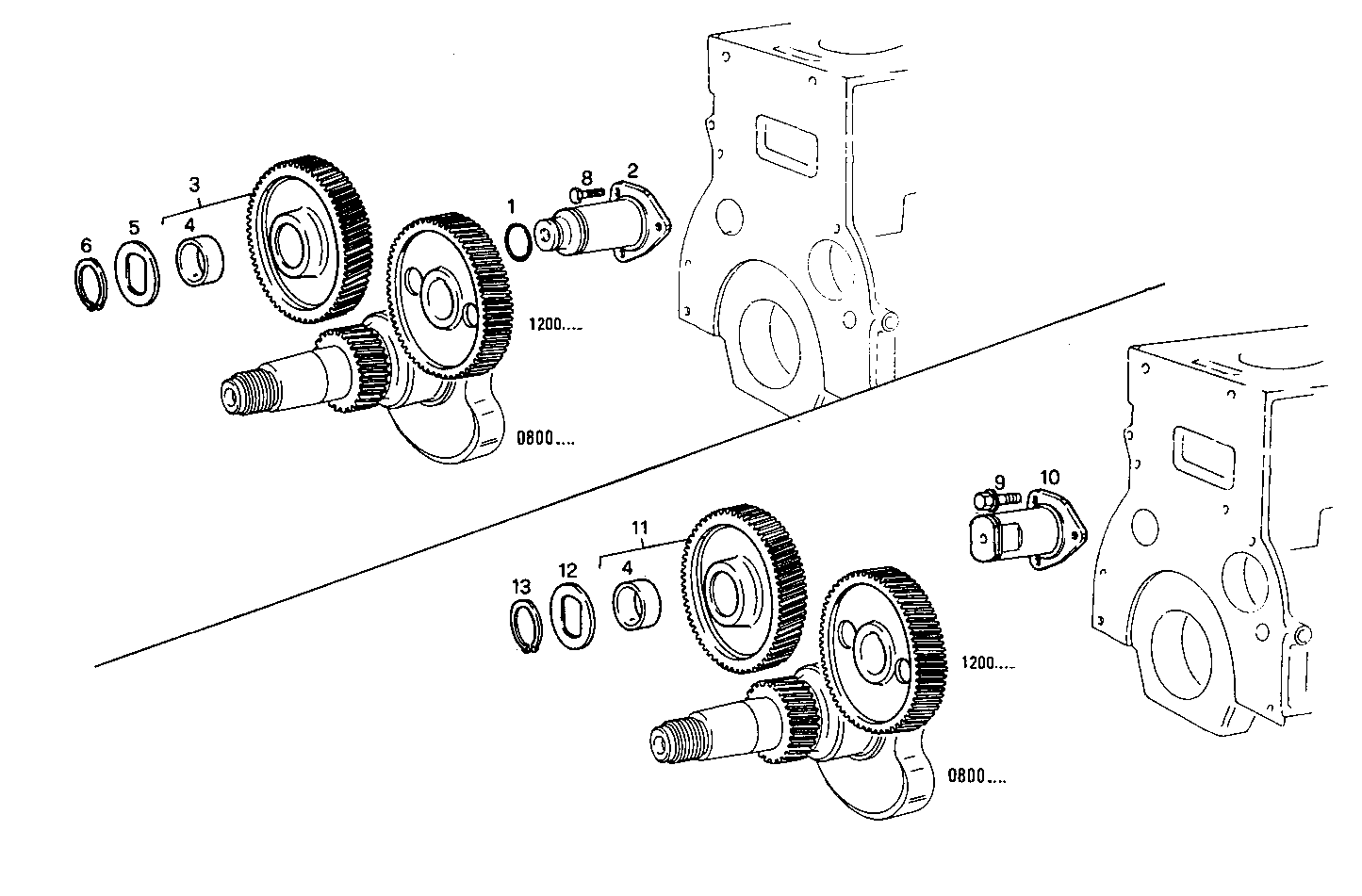

1000.005 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 4667452 SUPPORT RING
2 4769416 GUIDE BOLT
3 4818548 TIMING DRIVE GEAR ASSY [up to 576107]
4 98428924 BUSH VANDERVELL
5 4769419 WASHER
6 4769420 CIRCLIP
8 16321021 SCREW M8X25
9 98413884 HEXAGON BOLT M10X1,25X26 MM
10 98414013 GUIDE BOLT
11 98428920 CAMSHAFT PINION ASSY [from 576108]
12 4848377 WASHER
13 4848378 SPRING LOCKWASHER
