8041SRM15.10

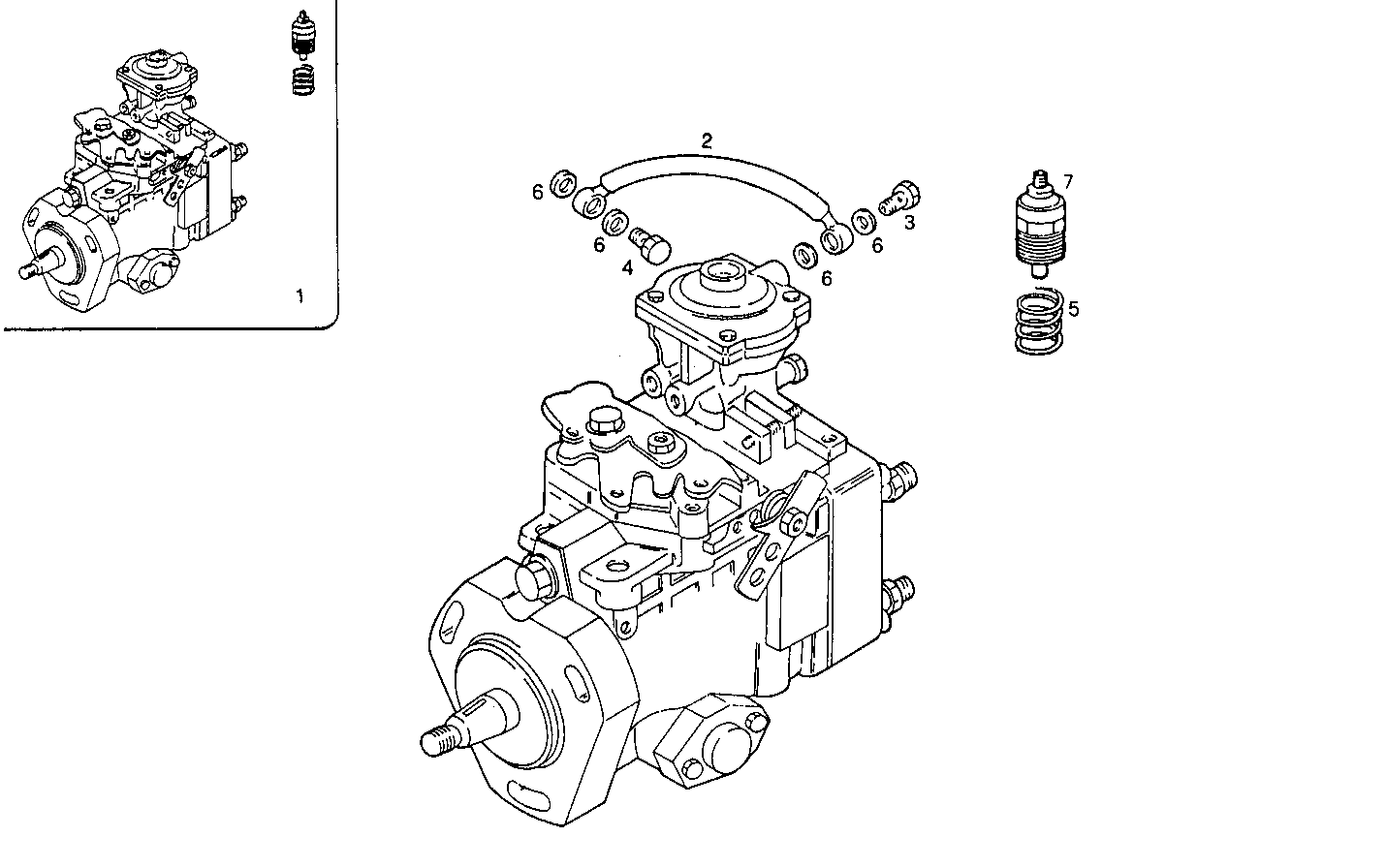

1400.018 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8111044 | DISTRIB.INJ.PUMP ASSY |
| 2 | 8010876 | FUEL LINE |
| 3 | 4864077 | SCREW CONNECTOR |
| 4 | 4864078 | BANJO BOLT M8X1,25 |
| 5 | 8109024 | SPRING |
| 6 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 7 | 8107346 | ELECTROVALVE 12V |
