8041SRM15.10

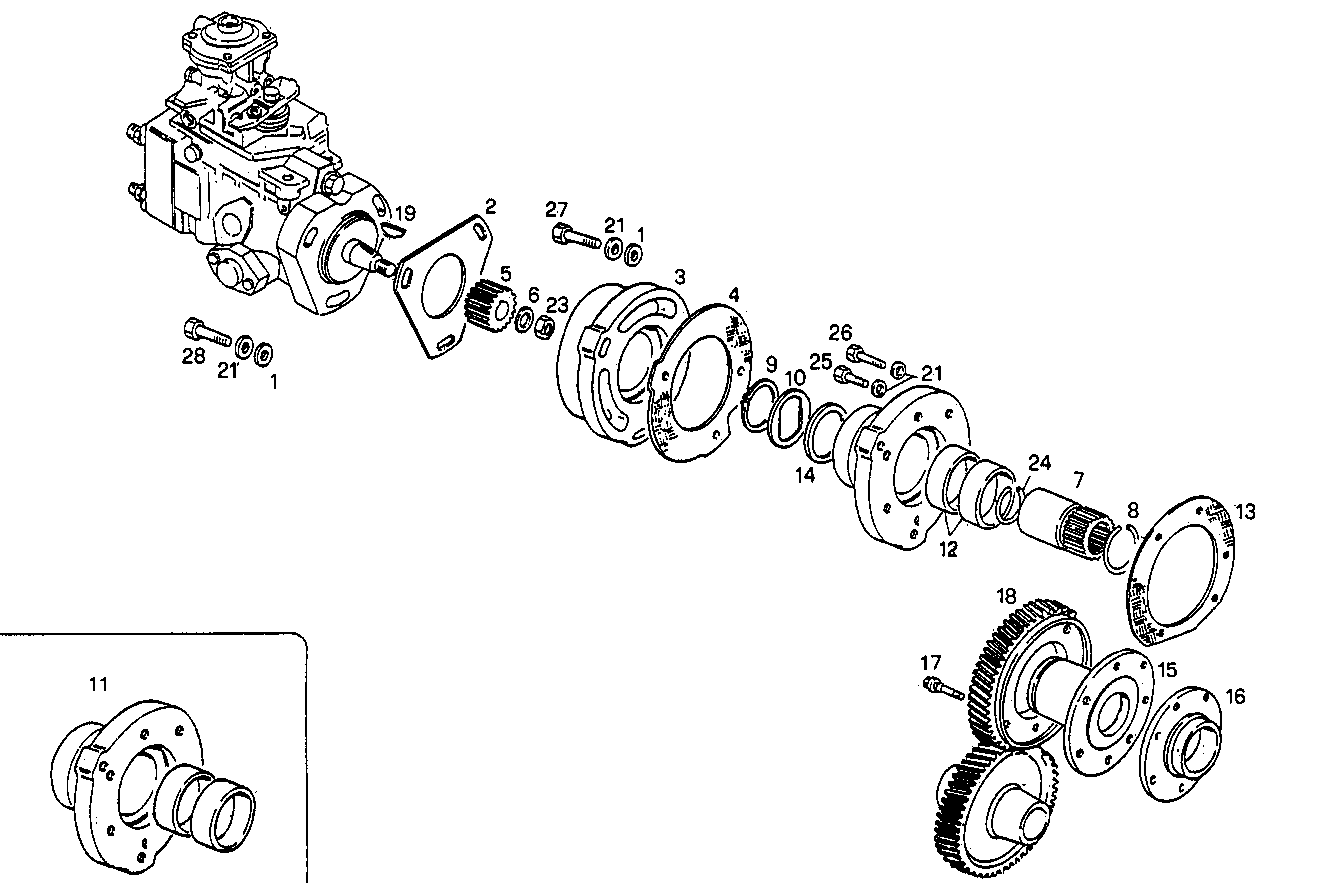

1410.010 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 12647124 WASHER Ø8X20 MM
2 4852642 GASKET
3 4791132 SPACING BAR
4 4851922 FLAT ENGINE GASKET
5 4824571 INJECT.PUMP BUSH 116° 68'
6 4799086 SPRING WASHER
7 4769712 INJECT.PUMP BUSH
8 16872576 CIRCLIP Ø6X0,7 MM
9 4708213 CIRCLIP
10 4667498 WASHER
11 4769710 SUPPORT ASSY
12 4769427 BUSH VANDERVELL
13 4849996 FLAT ENGINE GASKET
14 4809425 WASHER Ø50 MM
15 4769600 INJECT.PUMP SPIND
16 4788909 INJECT.PUMP SLEEVE
17 4798844 SCREW
18 4818557 GEAR
19 10205820 KEY 4X6,5 MM
21 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
23 17038821 HEXAGON NUT M14
24 17085376 CIRCLIP Ø30 MM
25 16043321 HEXAGON BOLT M8X18 MM
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
27 16605734 HEXAGON BOLT M8X30 MM
28 16606024 SCREW M8X45 MM
