8041SRM15.10

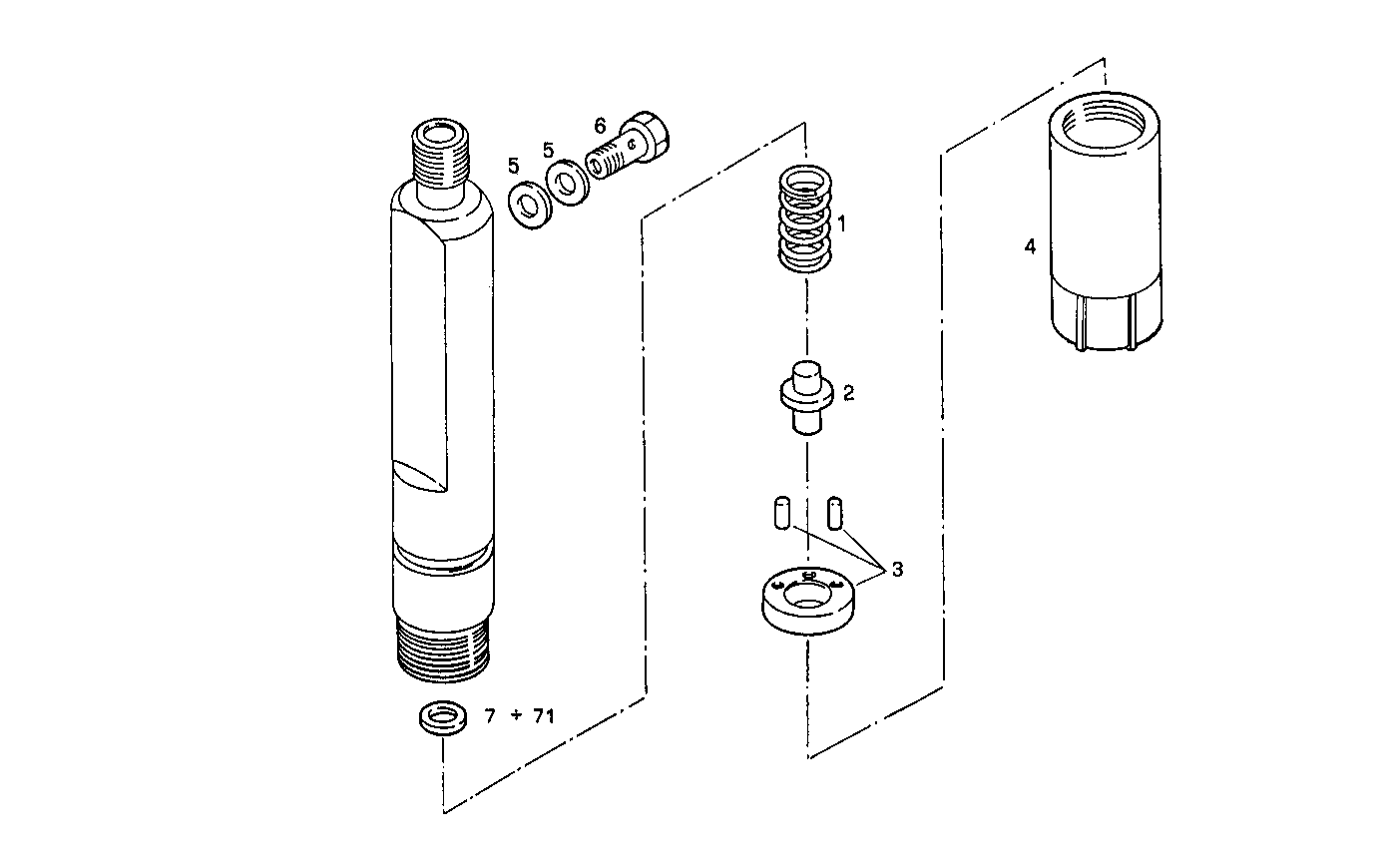

1430.006 NOZZLE HOLDER (COMPONENTS)
Item |
Part number |
Description |
1 |
774966 |
SPRING |
2 |
772807 |
ROD |
3 |
774967 |
RING |
4 |
774971 |
FASTENING RING |
5 |
772051 |
WASHER |
6 |
772814 |
SCREW CONNECTOR |
7 |
775014 |
SHIM SP=0,3 MM |
8 |
775015 |
SHIM SP=0,41 MM |
9 |
775016 |
SHIM 0,44 MM |
10 |
775017 |
SHIM SP=0,47 MM |
11 |
775018 |
SHIM 0,50 MM |
12 |
775019 |
SHIM SP=0,53 MM |
13 |
775025 |
SHIM SP=0,56 MM |
14 |
775026 |
SHIM SP=0,59 MM |
15 |
775027 |
SHIM SP=0,62 MM |
16 |
775028 |
SHIM SP=0,65 MM |
17 |
775029 |
SHIM SP=0,68 MM |
18 |
775030 |
SHIM SP=0,98 MM |
19 |
775031 |
SHIM SP=1,28 MM |
20 |
775032 |
SHIM SP=1,58 MM |
21 |
772799 |
SHIM SP=1,8 MM |
22 |
775144 |
SHIM 2,18 MM |
23 |
7984055 |
SHIM 1,00 MM |
24 |
7784537 |
SHIM 1,02 MM |
25 |
7984538 |
SHIM SP=1,04 MM |
26 |
7984539 |
SHIM SP=1,06 MM |
27 |
7984540 |
SHIM SP=1,08 MM |
28 |
8123582 |
SHIM 1,10 MM |
29 |
7984541 |
SHIM SP=1,12 MM |
30 |
7984542 |
SHIM SP=1,14 MM |
31 |
7984543 |
SHIM SP=1,16 MM |
32 |
7984544 |
SHIM SP=1,18 MM |
33 |
7984545 |
SHIM SP=1,2 MM |
34 |
7984546 |
SHIM SP=1,22 MM |
35 |
7984547 |
SHIM SP=1,24 MM |
36 |
7984548 |
SHIM SP=1,26 MM |
37 |
7984549 |
SHIM SP=1,28 MM |
38 |
7984550 |
SHIM SP=1,3 MM |
39 |
7984551 |
SHIM SP=1,32 MM |
40 |
7984552 |
SHIM SP=1,34 MM |
41 |
7984553 |
SHIM SP=1,36 MM |
42 |
7984554 |
SHIM SP=1,38 MM |
43 |
7984555 |
SHIM SP=1,4 MM |
44 |
7984556 |
SHIM SP=1,42 MM |
45 |
7984557 |
SHIM SP=1,14 MM |
46 |
7984558 |
SHIM 1,46 MM |
47 |
7984559 |
SHIM 1,48 MM |
48 |
7984560 |
SHIM 1,50 MM |
49 |
7984561 |
SHIM 1,54 MM |
50 |
7984562 |
SHIM 1,56 MM |
51 |
7984563 |
SHIM 1,58 MM |
52 |
7984564 |
SHIM 1,60 MM |
53 |
7984565 |
SHIM SP=1,62 MM |
54 |
7984566 |
SHIM 1,64 MM |
55 |
7984567 |
SHIM 1,66 MM |
56 |
7984568 |
SHIM SP=1,68 MM |
57 |
7984590 |
SHIM 1,70 MM |
58 |
7984570 |
SHIM 1,72 MM |
59 |
7984571 |
SHIM 1,74 MM |
60 |
7984572 |
SHIM 1,76 MM |
61 |
7984573 |
SHIM 1,78 MM |
62 |
7984500 |
SHIM 1,80 MM |
63 |
7984574 |
SHIM 1,82 MM |
64 |
7984575 |
SHIM 1,84 MM |
65 |
7984576 |
SHIM 1,86 MM |
66 |
7984577 |
SHIM SP=1,88 MM |
67 |
7984578 |
SHIM 1,90 MM |
68 |
7984579 |
SHIM 1,92 MM |
69 |
7984580 |
SHIM 1,94 MM |
70 |
7984581 |
SHIM 1,96 MM |
71 |
7984582 |
SHIM SP=1,98 MM |
