Catalogue Menu
8041SRM15.10

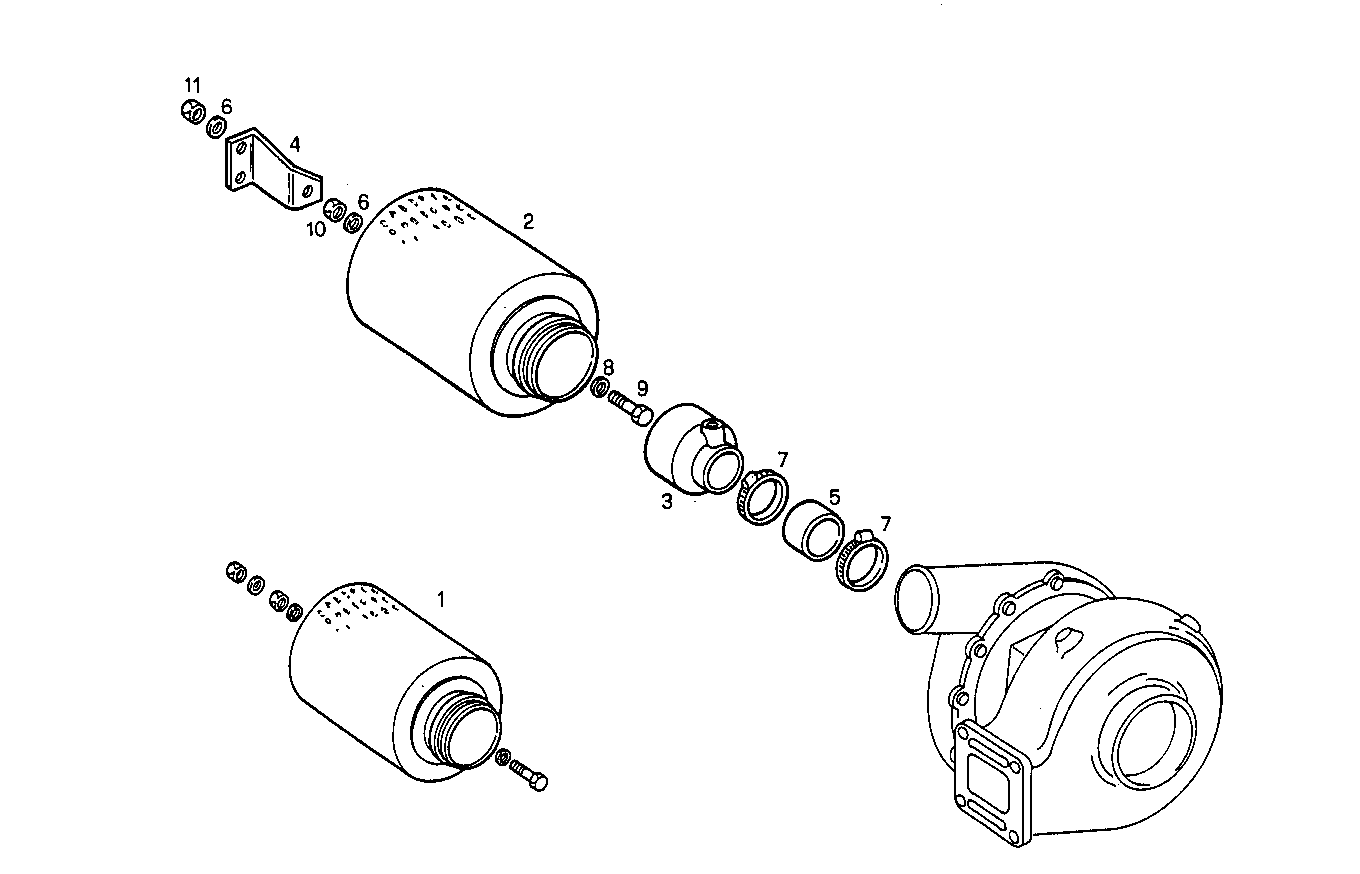

2210.015 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8111045 | AIR CLEANER ASSY |
| 2 | 8111265 | AIR CLEANER |
| 3 | 8111046 | AIR MANIFOLD |
| 4 | 8111047 | RETAINER |
| 5 | 17744687 | FILTER HOSE |
| 6 | 11193879 | SPRING WASHER Ø8X16 MM |
| 7 | 12177191 | CLIP Ø50/70 MM |
| 8 | 12644321 | WASHER Ø10X35 MM |
| 9 | 16043821 | HEXAGON BOLT M8X30 MM |
| 10 | 16102311 | HEXAGON NUT M8 |
| 11 | 8101714 | NUT M8X1,25 |
