8041SRM15.10

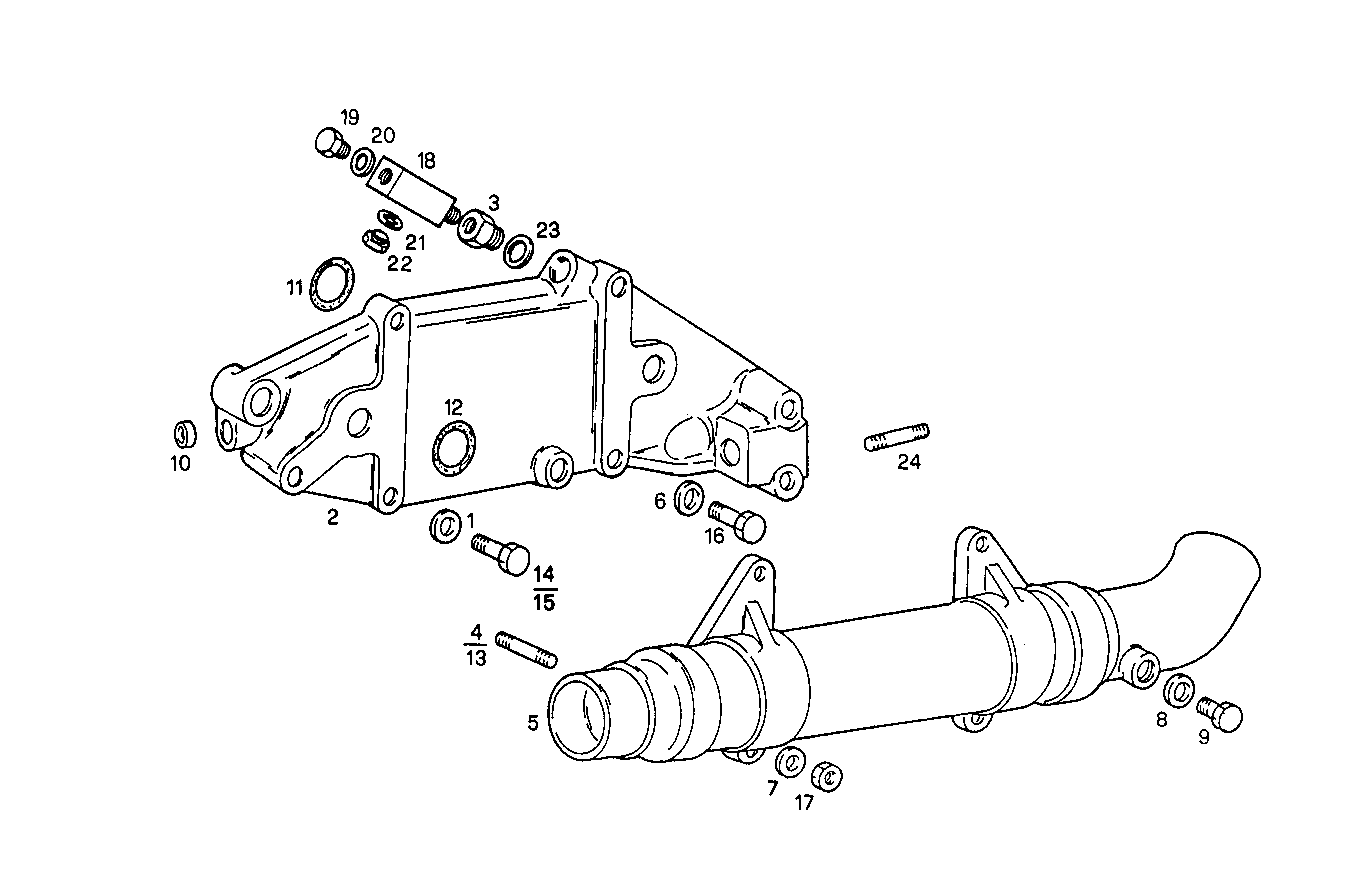

3100.014 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 17095304 WASHER Ø12X24 MM
2 4801571 SUPPORT ASSY
3 4820056 THREADED UNION
4 13517321 STUD M8X35 MM
5 8109801 OIL/WATER HEAT EXCHANGER ASSY
6 11198379 SPRING WASHER Ø10X20 MM SP=2,6
7 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
8 10284460 SEAL GASKET Ø10X16 MM
9 11903040 LOCK PLUG M10X1
10 14328501 LOCK PLUG Ø16 MM
11 17281981 O-RING Ø18,7 MM SP=2,6 MM
12 14457581 O-RING Ø20,29 MM SP=2,62 MM
13 13516821 STUD M8X12X20 MM
14 16610524 HEXAGON BOLT M12X60 MM
15 16610924 HEXAGON BOLT M12X90 MM
16 15888721 HEXAGON BOLT M10X1,25X55 MM
17 17037931 HEXAGON NUT M8X1,25
18 4929576 PIPE SOCKET
19 16992211 THREADED PLUG M12X1,5
20 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
21 4858606 GASKET Ø10X14X1 MM
22 16992111 THREADED PLUG M10X1
23 4858605 WASHER Ø8X12 MM
24 11798321 STUD M14X20X80
