8041SRM15.10

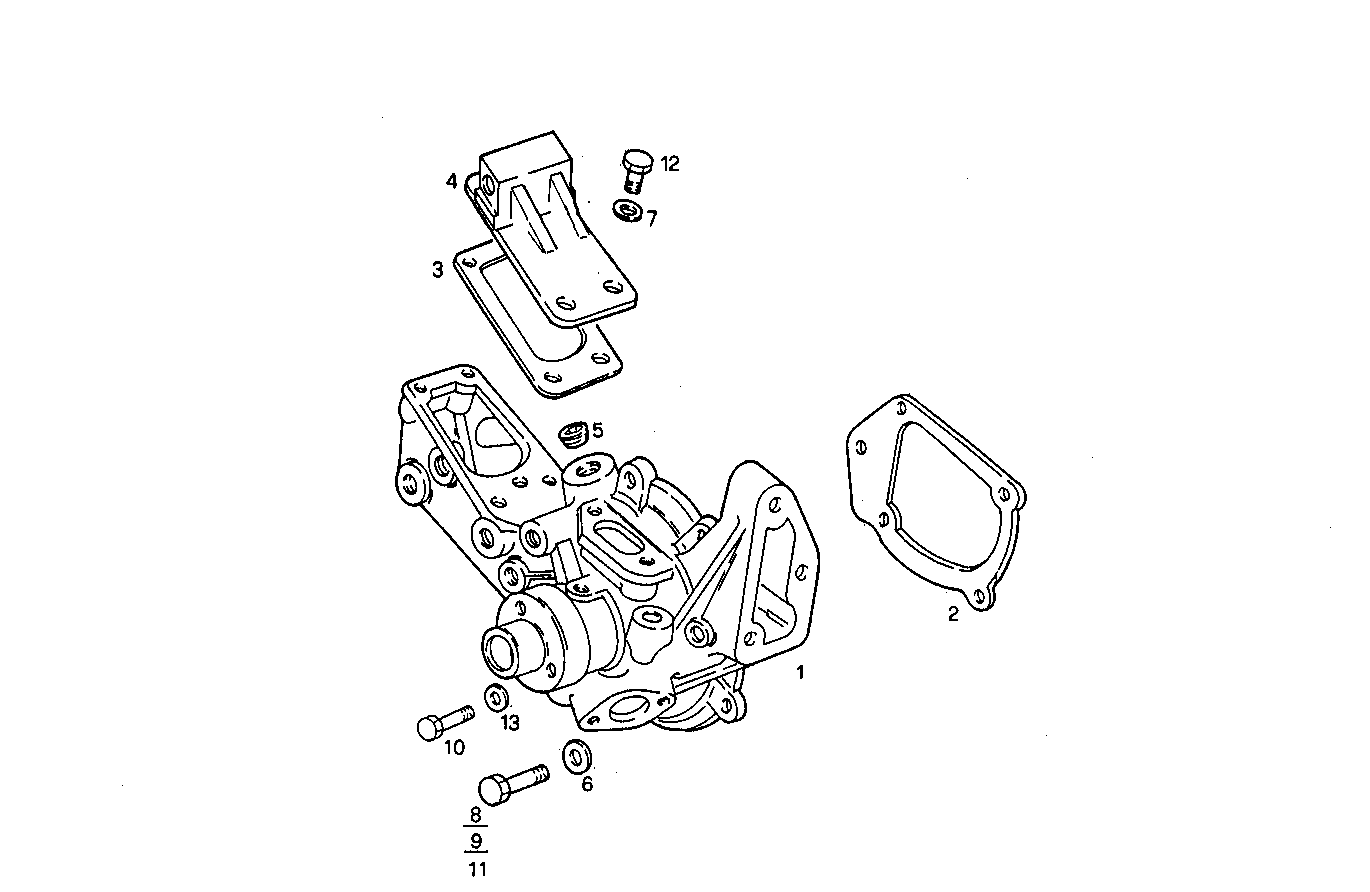

3200.012 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4813730 | WATER PUMP ASSY |
| 2 | 98400779 | FLAT ENGINE GASKET |
| 3 | 98400783 | FLAT ENGINE GASKET |
| 4 | 4936774 | COVER |
| 5 | 10269601 | THREADED PLUG M16X1,5 |
| 6 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 7 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 8 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 10 | 15971421 | HEXAGON BOLT M10X1,25X80 MM |
| 11 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 12 | 16043521 | SCREW M8X22 |
| 13 | 11198371 | SPRING WASHER Ø10X20 MM |
