8041SRM15.10

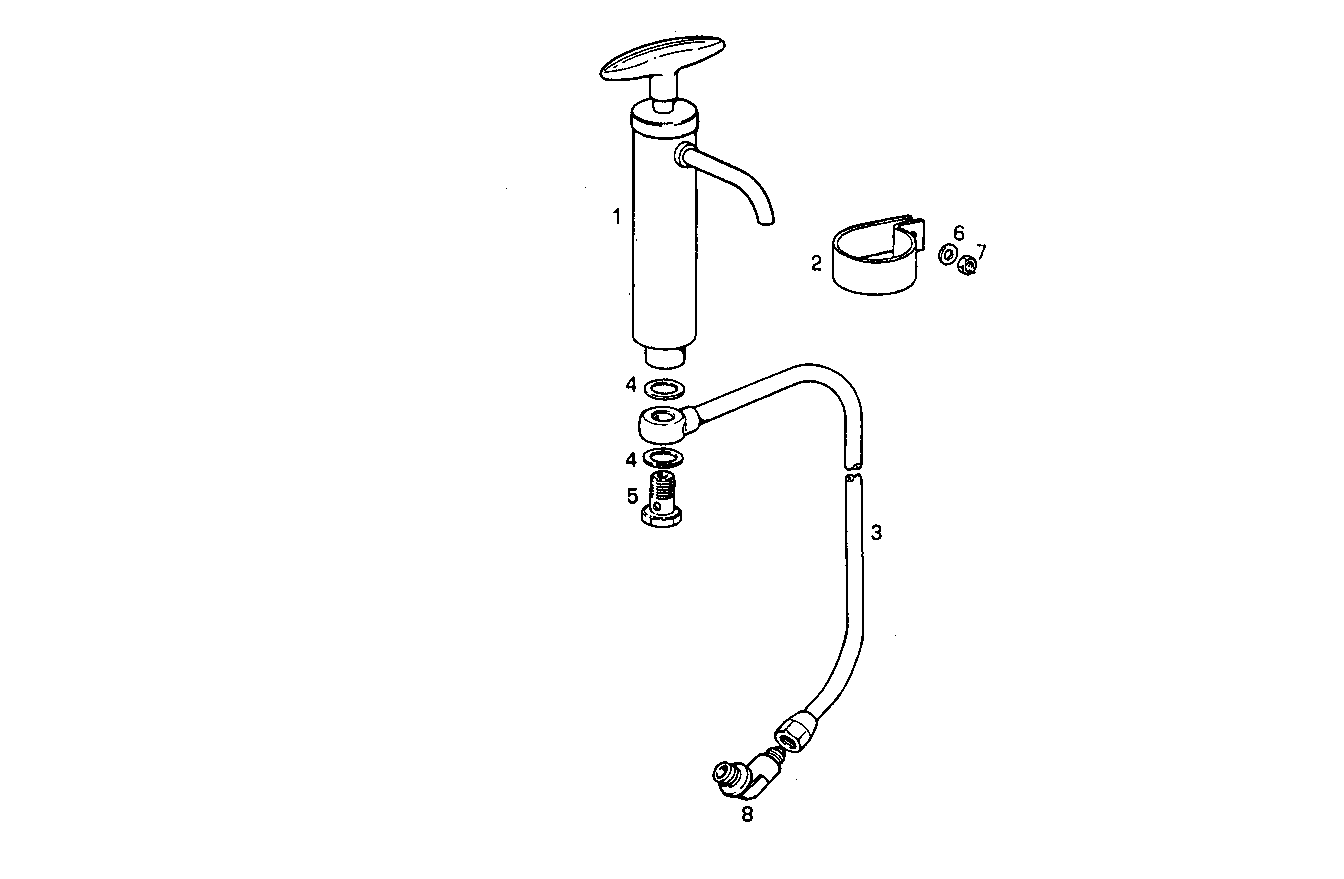

5510.004 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4928851 | CLIP |
| 3 | 8011349 | OIL LINE |
| 4 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 5 | 4864084 | BANJO BOLT M16X1,5 |
| 6 | 17089574 | WASHER Ø8X16 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4928527 | PIPE SOCKET |
