8041SRM15.10

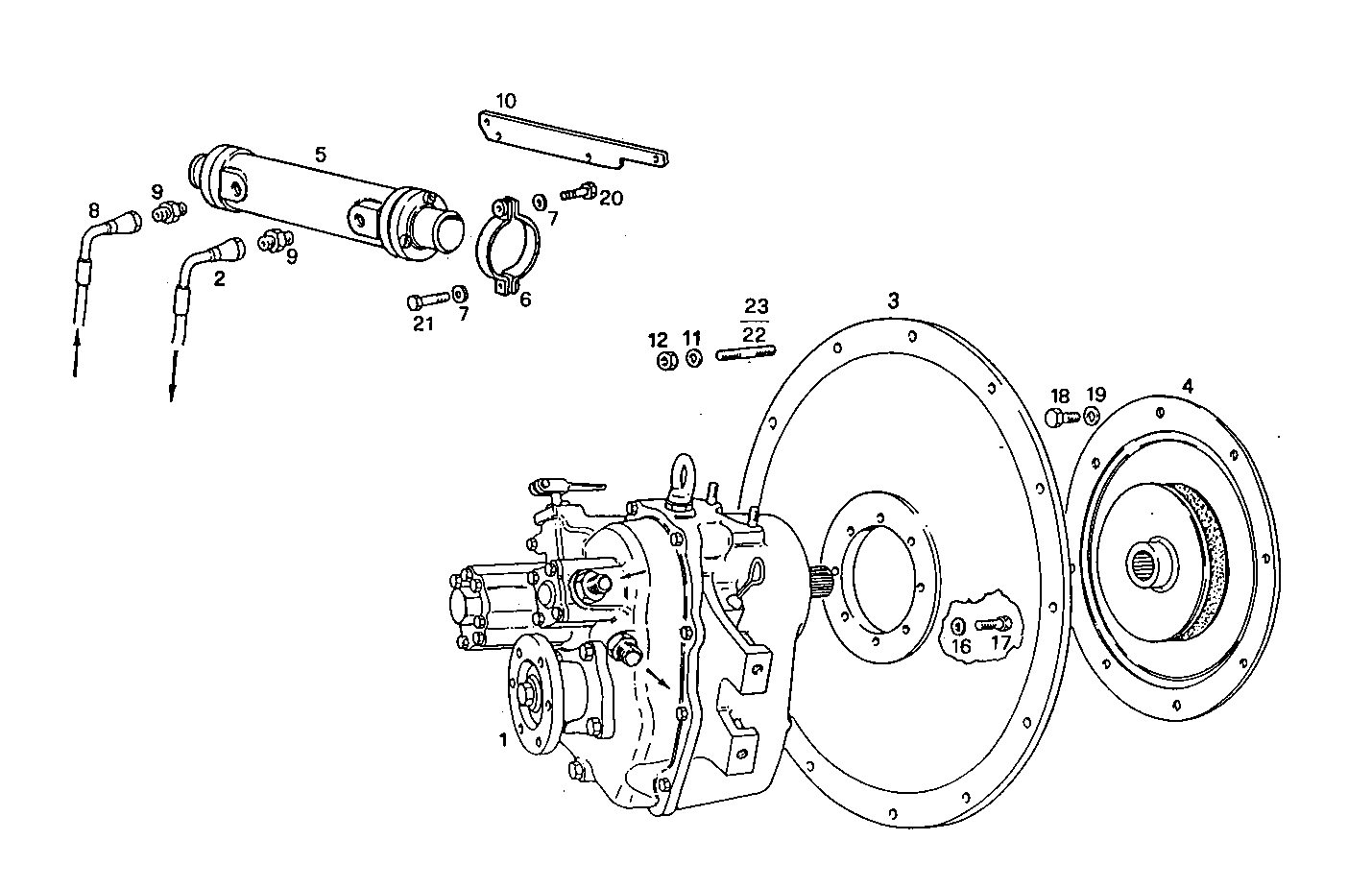

A51720024/01 MARINE GEAR TECHNODRIVE TM 170 - ratio 2.04:1

Iveco/FPT MARINE GEAR TECHNODRIVE TM 170

Item Part number Description
1 8019195 MARINE GEAR 2,04:1
2 8105620 HOSE
3 8012407 COUPLING BELL
4 8113696 FLEXIBLE COUPLING
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 5116798 CLIP ASSY [from 06-93]
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 4935779 HOSE
9 8101073 PIPE SOCKET
10 8018591 SUPPORT [from 05-94]
11 17090174 SPRING WASHER Ø10X20 MM
12 17038221 HEXAGON NUT M10
16 17091074 WASHER Ø12X24X2,8 MM
17 16610024 SCREW M12X35
18 15970521 HEXAGON BOLT M10X20 MM
19 17494934 WASHER Ø10X18,1X2,2 MM
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 16606024 SCREW M8X45 MM
22 13449521 STUD M10X15X25
23 13449721 STUD M10X15X30
