8041SRM15.10

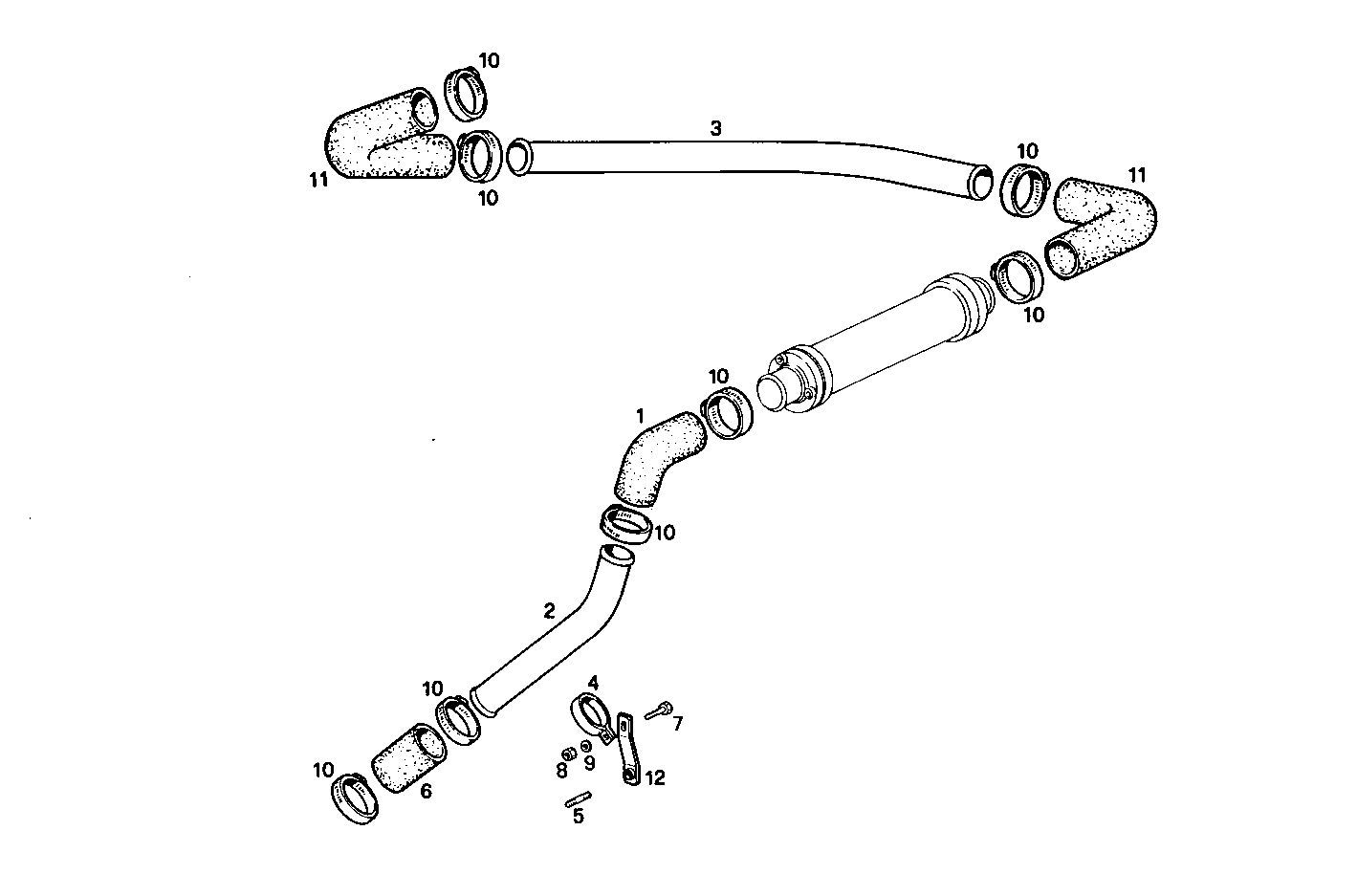

A51720024/02 MARINE GEAR TECHNODRIVE TM 170 - ratio 2.04:1
Item | Part number | Description |
---|---|---|
1 | 8016576 | RUBBER SLEEVE |
2 | 8018618 | WATER PIPE [from 05-94] |
3 | 8018617 | WATER PIPE [from 05-94] |
4 | 4936741 | CLIP |
5 | 13449321 | STUD M10X1,25X15X20 MM |
6 | 17742687 | RUBBER SLEEVE |
7 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
8 | 17038221 | HEXAGON NUT M10 |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
10 | 17764793 | CLIP Ø32/50 MM |
11 | 8102099 | RUBBER SLEEVE |
12 | 8005101 | RETAINER |
