8041SRM15.10

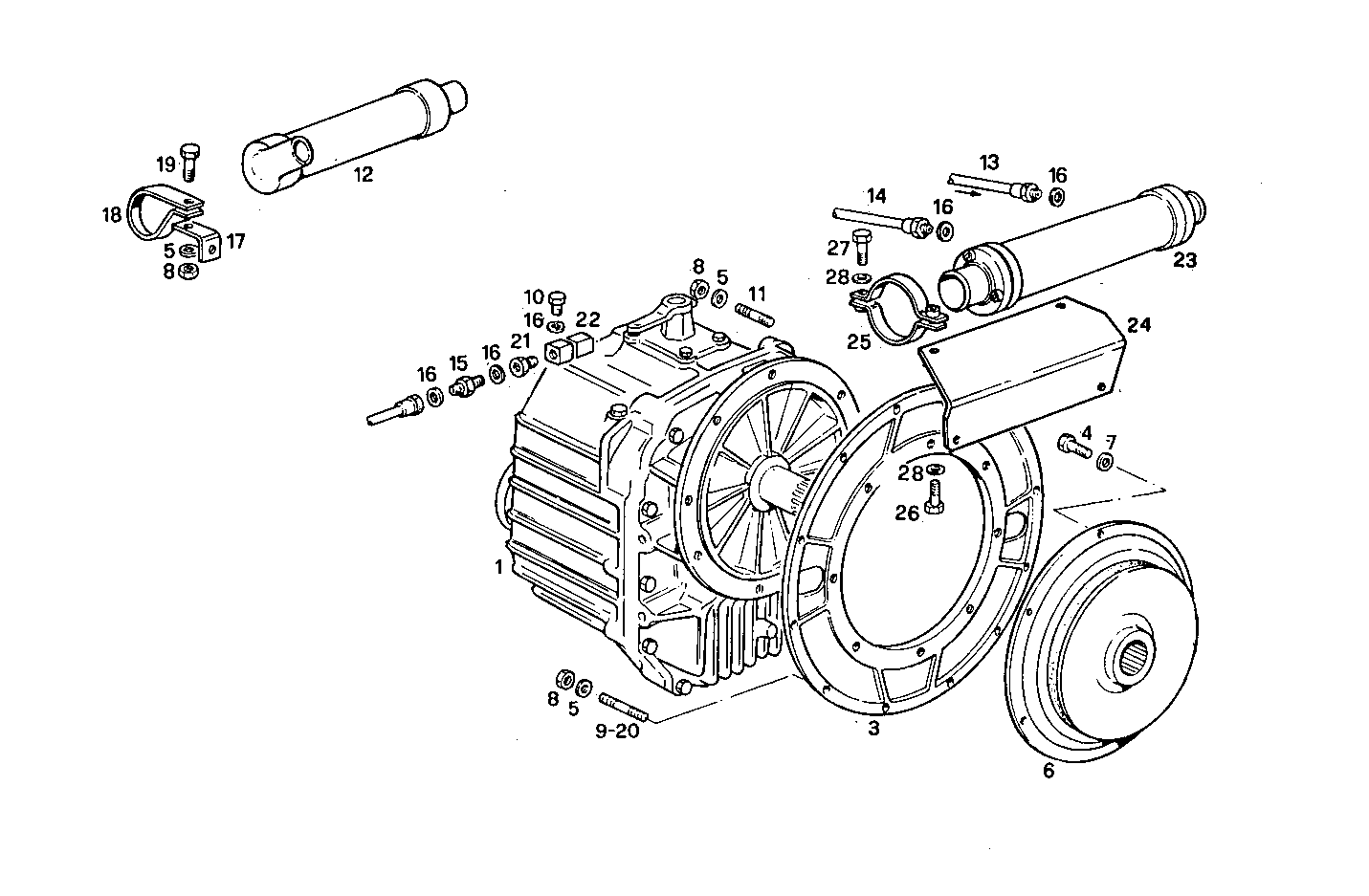

A51790004/01 MARINE GEAR HURTH HSW 630 A - ratio 1.56:1

Iveco/FPT MARINE GEAR HURTH HSW 630 A

Item Part number Description
1 8110095 MARINE GEAR 1,56:1
3 4934782 COUPLING BELL
4 15970521 HEXAGON BOLT M10X20 MM
5 11198379 SPRING WASHER Ø10X20 MM SP=2,6
6 8113696 FLEXIBLE COUPLING
7 10571879 WASHER
8 12164711 HEXAGON NUT M10X1,25
9 13449721 STUD M10X15X30
10 10183317 LOCK PLUG M16X1,5
11 13546321 STUD M10X25 MM
12 4919188 MARINE GEAR OIL HEAT EXCH ASSY
13 8105855 OIL HOSE
14 8105856 OIL LINE
15 4935465 PIPE SOCKET
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 8113053 RETAINER [up to 05-94]
18 8013591 CLIP ASSY [up to 06-93]
19 15004021 HEXAGON BOLT M10X1,25X25 MM
20 13449821 STUD M10X1,25X15 MM
21 8105826 PIPE SOCKET
22 8107173 PIPE SOCKET
23 8016304 OIL/WATER HEAT EXCHANGER ASSY
24 8018591 SUPPORT [from 05-94]
25 5116798 CLIP ASSY [from 06-93]
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
27 16606024 SCREW M8X45 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
