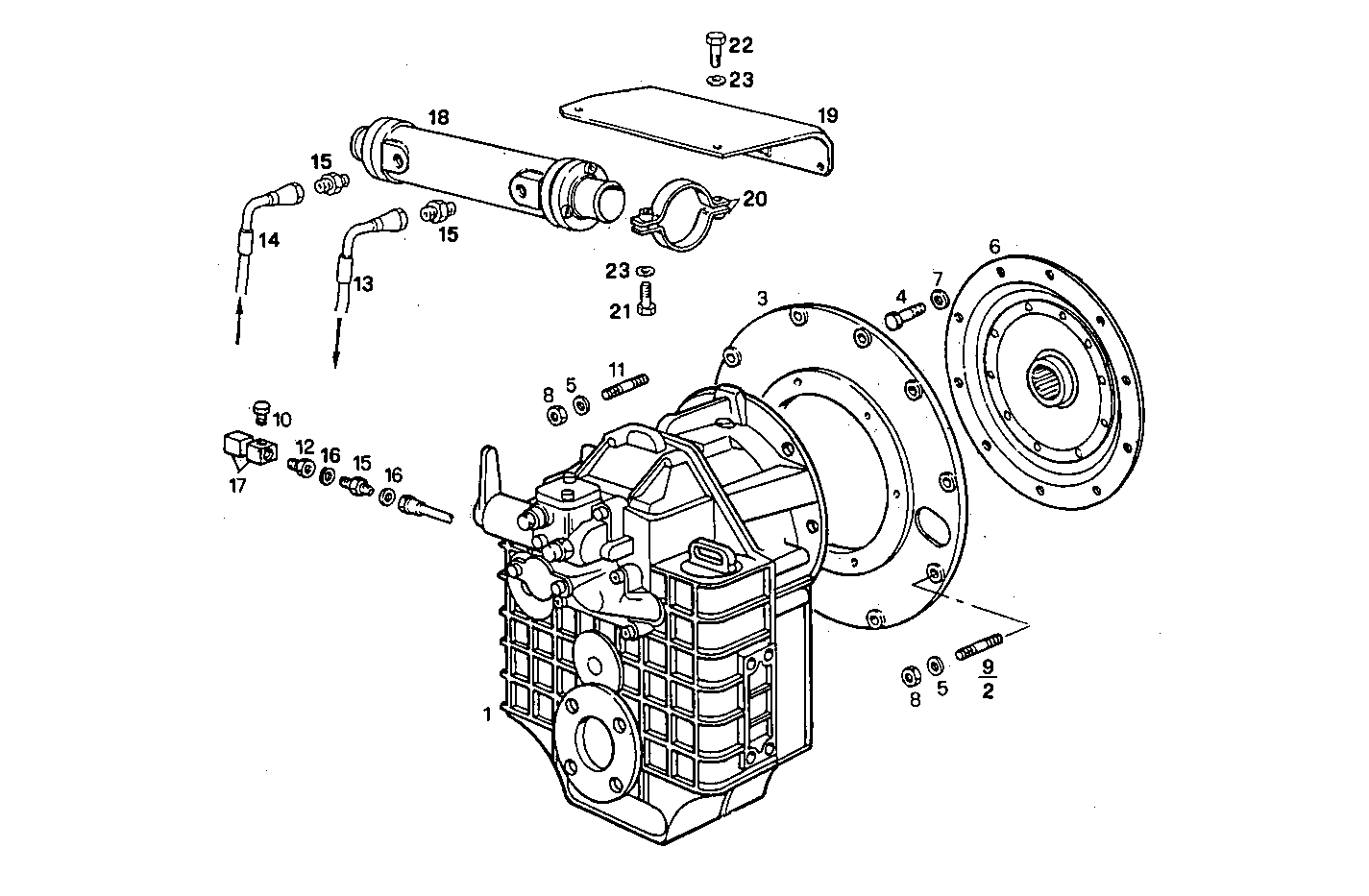

Item |
Part number |
Description |
1 |
8005567 |
MARINE GEAR 1,56:1 |
2 |
13449821 |
STUD M10X1,25X15 MM |
3 |
4934782 |
COUPLING BELL |
4 |
15970521 |
HEXAGON BOLT M10X20 MM |
5 |
11198371 |
SPRING WASHER Ø10X20 MM |
6 |
8113696 |
FLEXIBLE COUPLING |
7 |
10571879 |
WASHER |
8 |
12164711 |
HEXAGON NUT M10X1,25 |
9 |
13449721 |
STUD M10X15X30 |
10 |
10183317 |
LOCK PLUG M16X1,5 |
11 |
13546321 |
STUD M10X25 MM |
12 |
8105826 |
PIPE SOCKET |
13 |
8105856 |
OIL LINE |
14 |
8105855 |
OIL HOSE |
15 |
4935465 |
PIPE SOCKET |
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
17 |
8107173 |
PIPE SOCKET |
18 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
19 |
8018591 |
SUPPORT [from 05-94] |
20 |
5116798 |
CLIP ASSY [from 06-93] |
21 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
22 |
16606024 |
SCREW M8X45 MM |
23 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
