8041SRM15.10

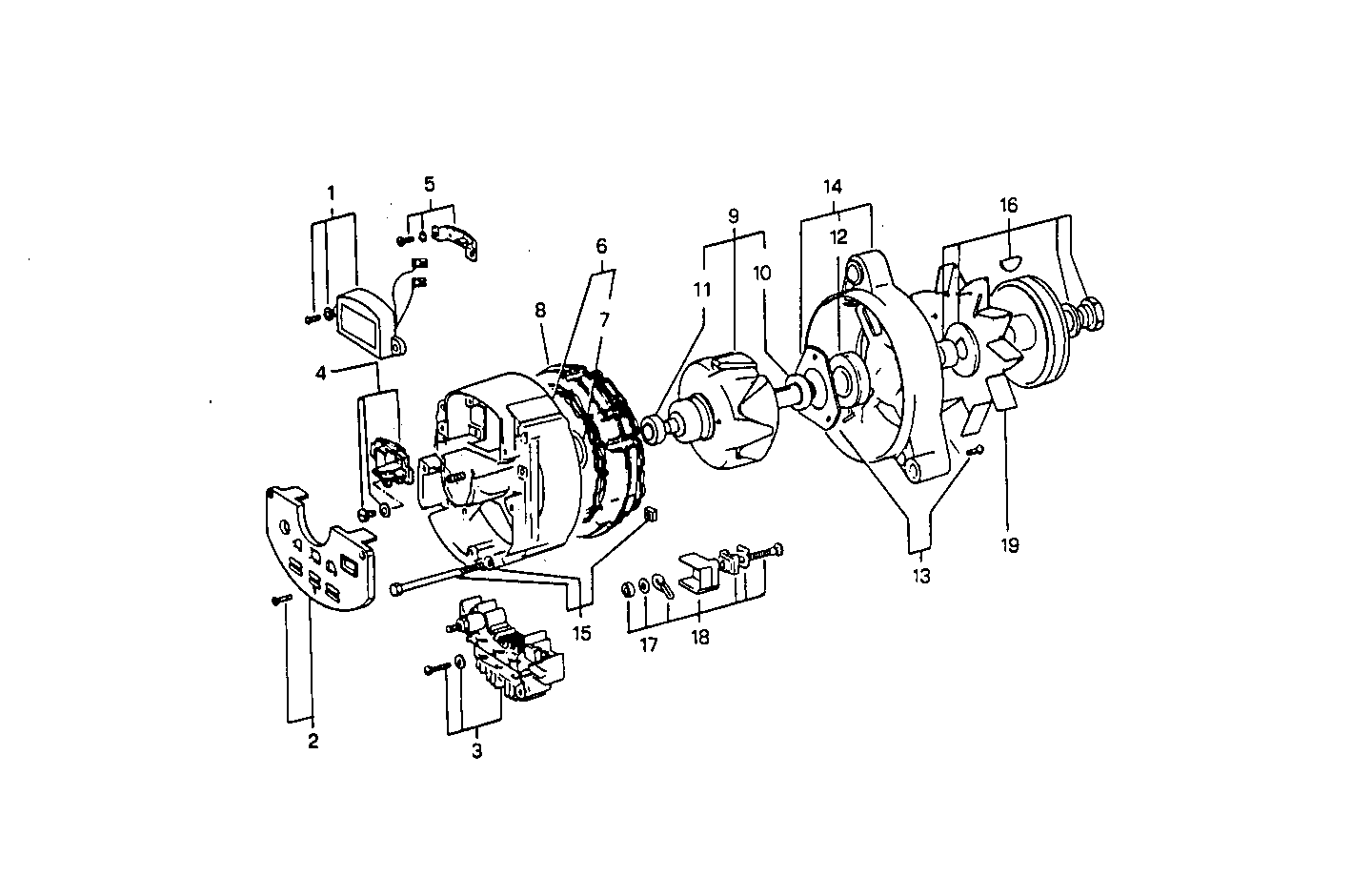

T1406001 ALTERNATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8090000 | VOLTAGE REGULATOR |
| 2 | 8090001 | COVER |
| 3 | 8090002 | RECTIFIER |
| 4 | 8090003 | BRUSH HOLDER |
| 5 | 8090004 | RETAINER |
| 6 | 8090005 | SUPPORT ASSY |
| 7 | 8090006 | STATOR |
| 8 | 8090007 | STATOR |
| 9 | 8090008 | ROTOR ASSY |
| 10 | 8090009 | SPACING BAR |
| 11 | 8090010 | DRIVE BEARING |
| 12 | 8090011 | DRIVE BEARING |
| 13 | 8090012 | PLATE |
| 14 | 8090013 | SUPPORT ASSY |
| 15 | 8090014 | SCREW |
| 16 | 8090015 | KIT-GENERATOR |
| 17 | 8090016 | CLAMP D+ |
| 18 | 8090017 | CLAMP W |
| 19 | 8090018 | GENERATOR FAN |
