8045E00.00

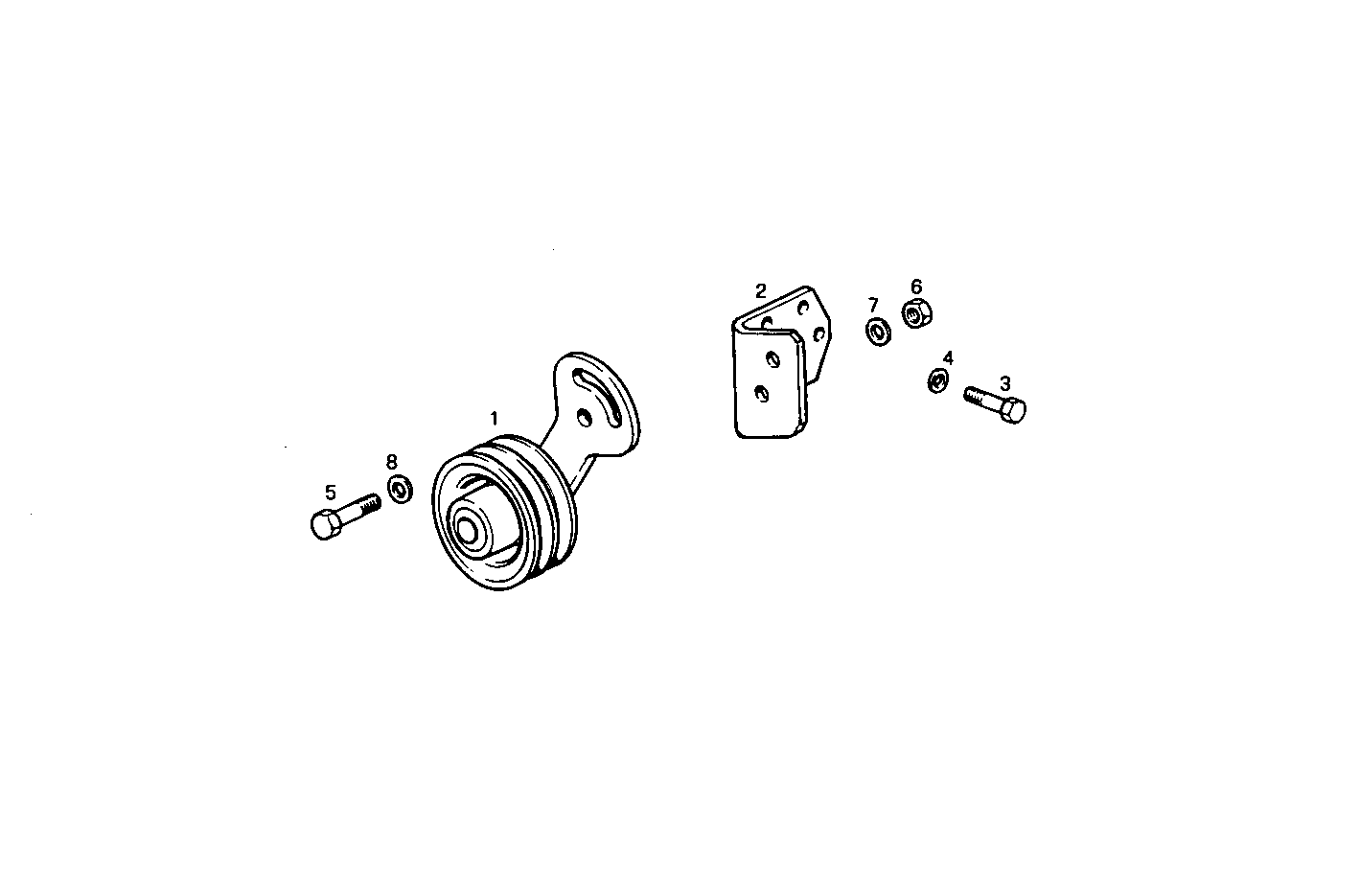

A14080006 BELT STRETCHER IN PLACE OF ALTERNATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4803462 | BELT TENSIONER ASSY |
| 2 | 8027406 | RETAINER |
| 3 | 16605524 | HEXAGON BOLT M8X20 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 11306921 | SCREW M10X1,25X30 |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
