8045E00.00

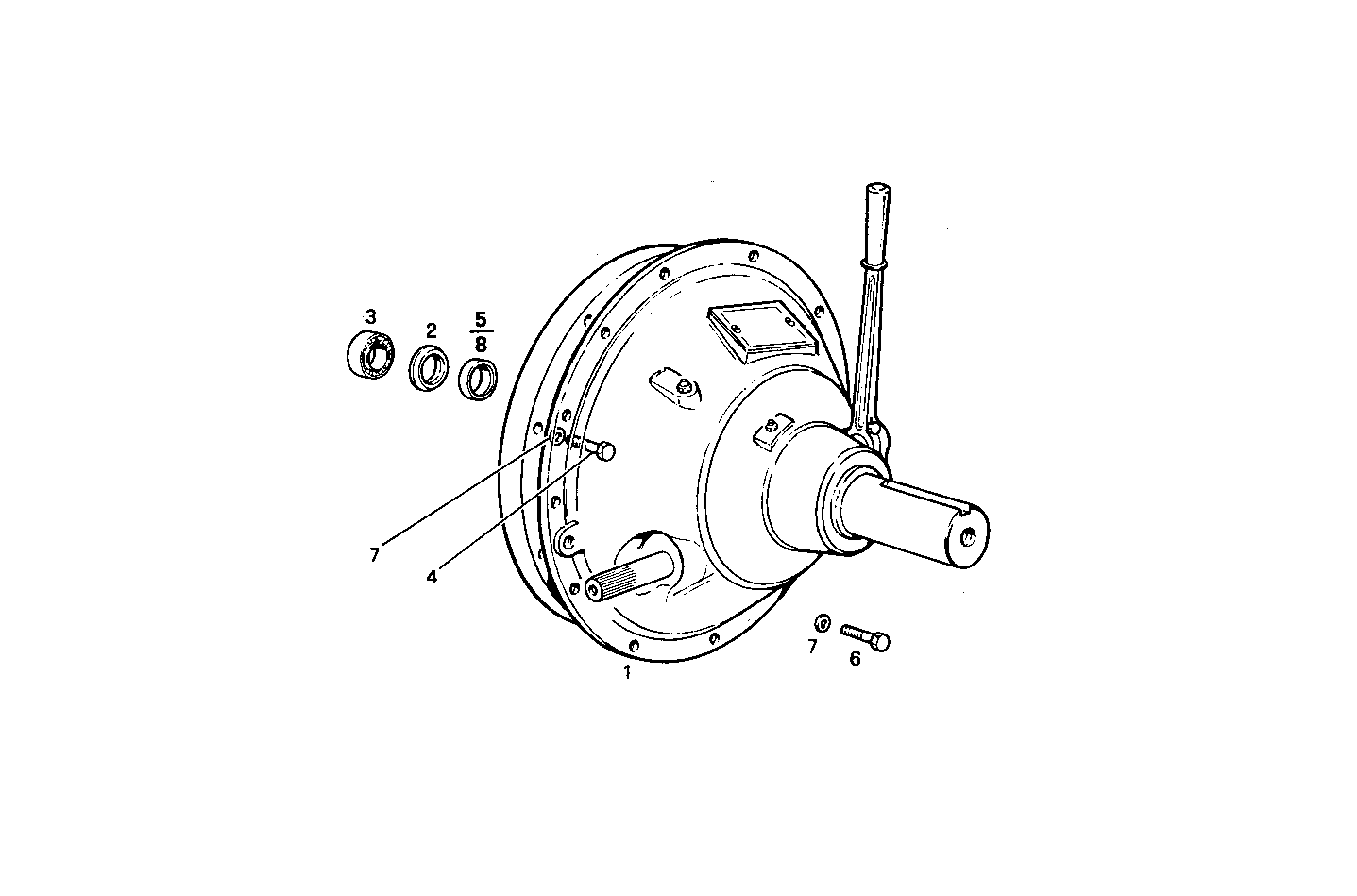

A27200002 INDUSTRIAL CLUTCH - TECHNODRIVE 10''
Item | Part number | Description |
---|---|---|
1 | 8015230 | CLUTCH BD 130/50 |
2 | 4931870 | SPACING BAR [up to 11-92] |
3 | 28102110 | DRIVE BEARING |
4 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
5 | 4934469 | STOP WASHER [up to 11-92] |
6 | 11306921 | SCREW M10X1,25X30 |
7 | 17090174 | SPRING WASHER Ø10X20 MM |
8 | 8014923 | STOP WASHER [from 11-92] |
