8045E00.00A003

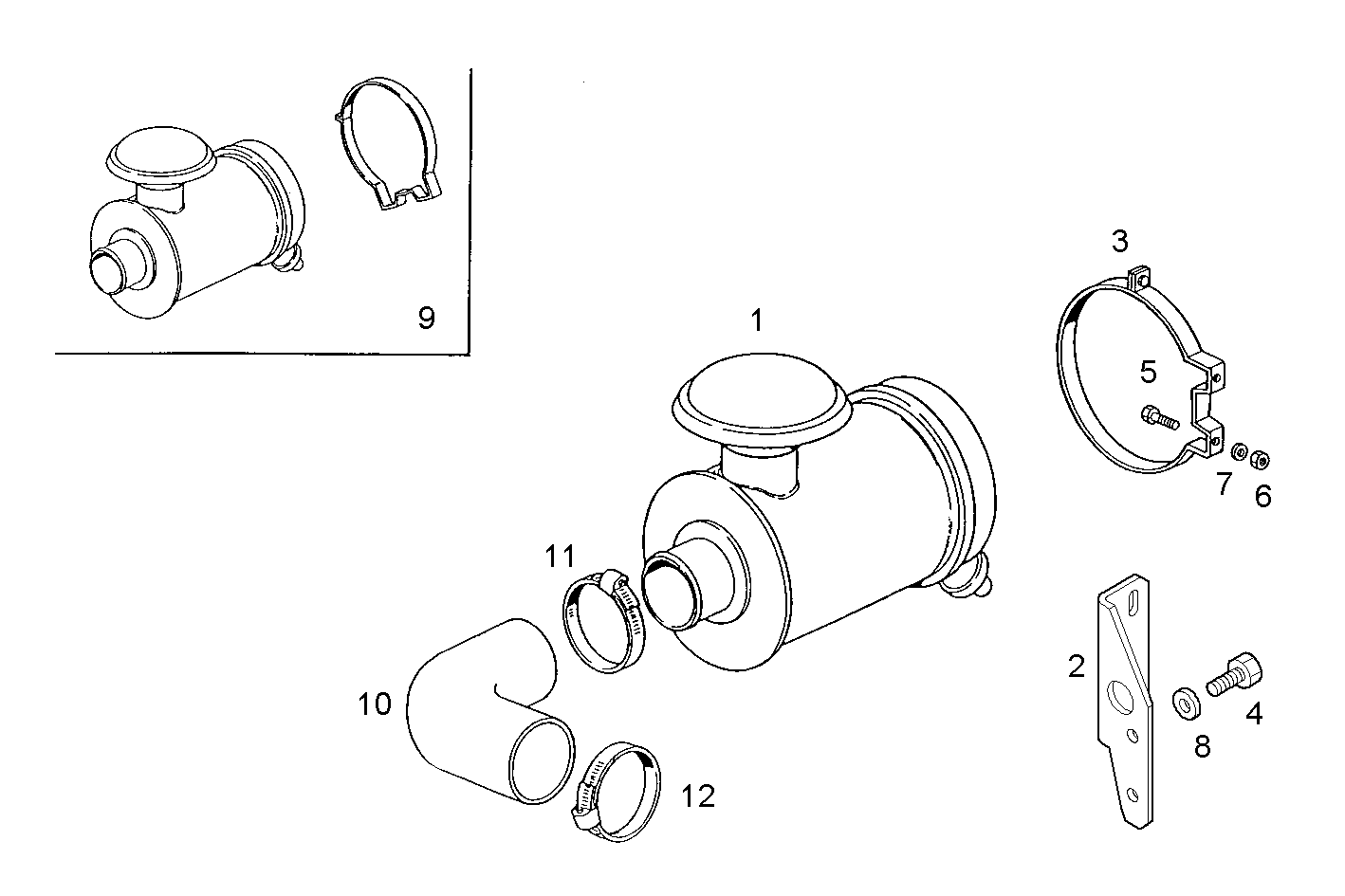

A21220002/1 DRY AIR CLEANER
Item | Part number | Description |
---|---|---|
1 | 8014429 | FILTER COVER |
2 | 8030832 | SUPPORT |
3 | 8031210 | CLIP |
4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
5 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
8 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
9 | 503110006 | AIR CLEANER ASSY |
10 | 8014438 | FILTER HOSE |
11 | 17765091 | CLIP Ø60/80 MM |
12 | 17765291 | CLIP Ø80/100 MM |
