8045E00.09A002

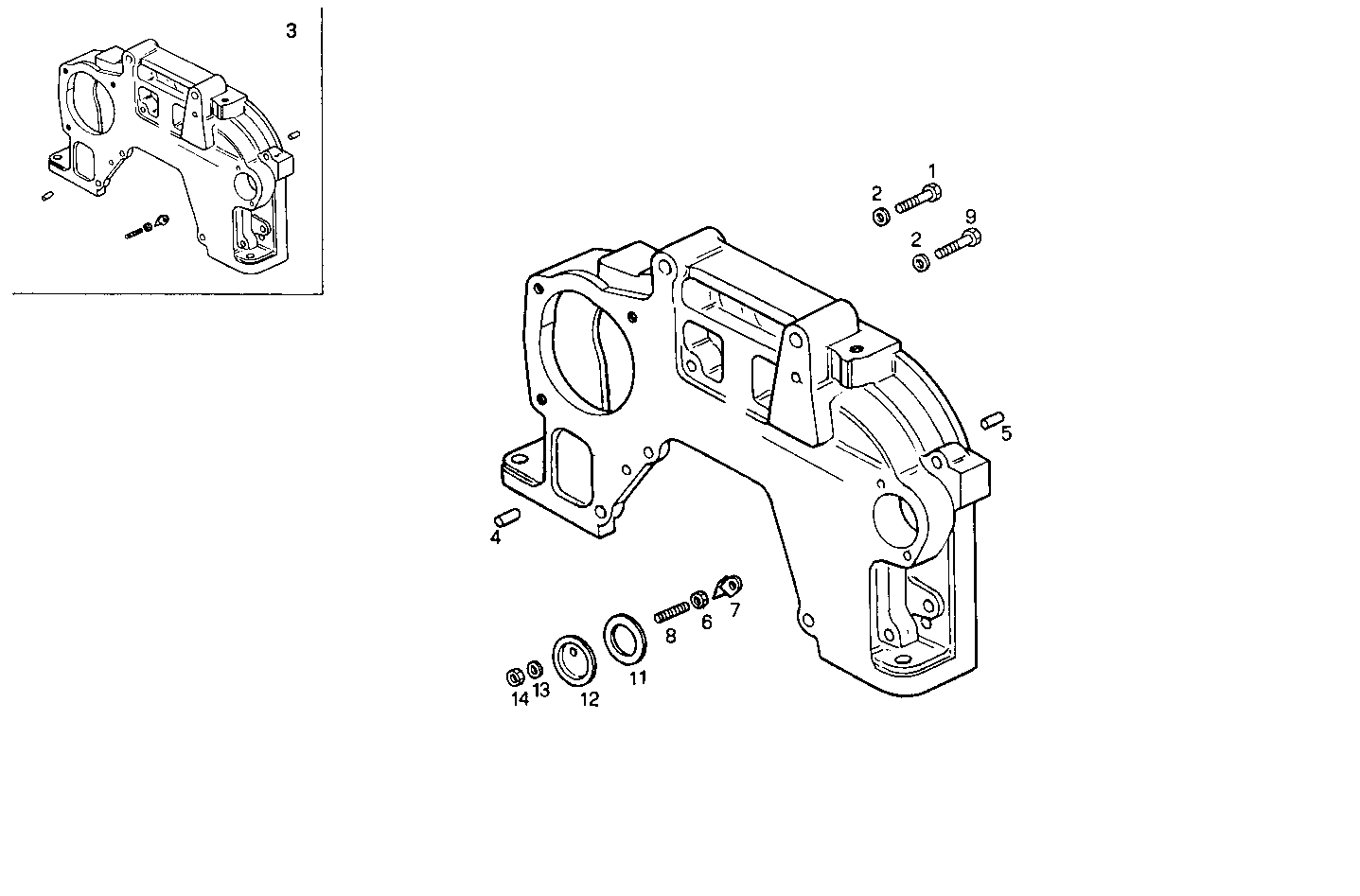

0430.205/02 INSERTED BOX ASSEM.
Item | Part number | Description |
---|---|---|
1 | 16613324 | HEXAGON BOLT M14X2X100 MM |
2 | 11200174 | WASHER Ø14X32 MM |
3 | 99485219 | FLYWHEEL HOUSING |
4 | 10839710 | DOWEL PIN Ø10X15 MM |
5 | 4658441 | DOWEL PIN |
6 | 16979431 | NUT M8 |
7 | 99484972 | INDICATOR |
8 | 13543721 | STUD M8X16X35 MM |
9 | 16612324 | HEXAGON BOLT M14X35 MM |
11 | 98400797 | GASKET |
12 | 4670802 | COVER |
13 | 17094970 | WASHER |
14 | 16104111 | HEXAGON NUT M8 |
