8045E00.09A002

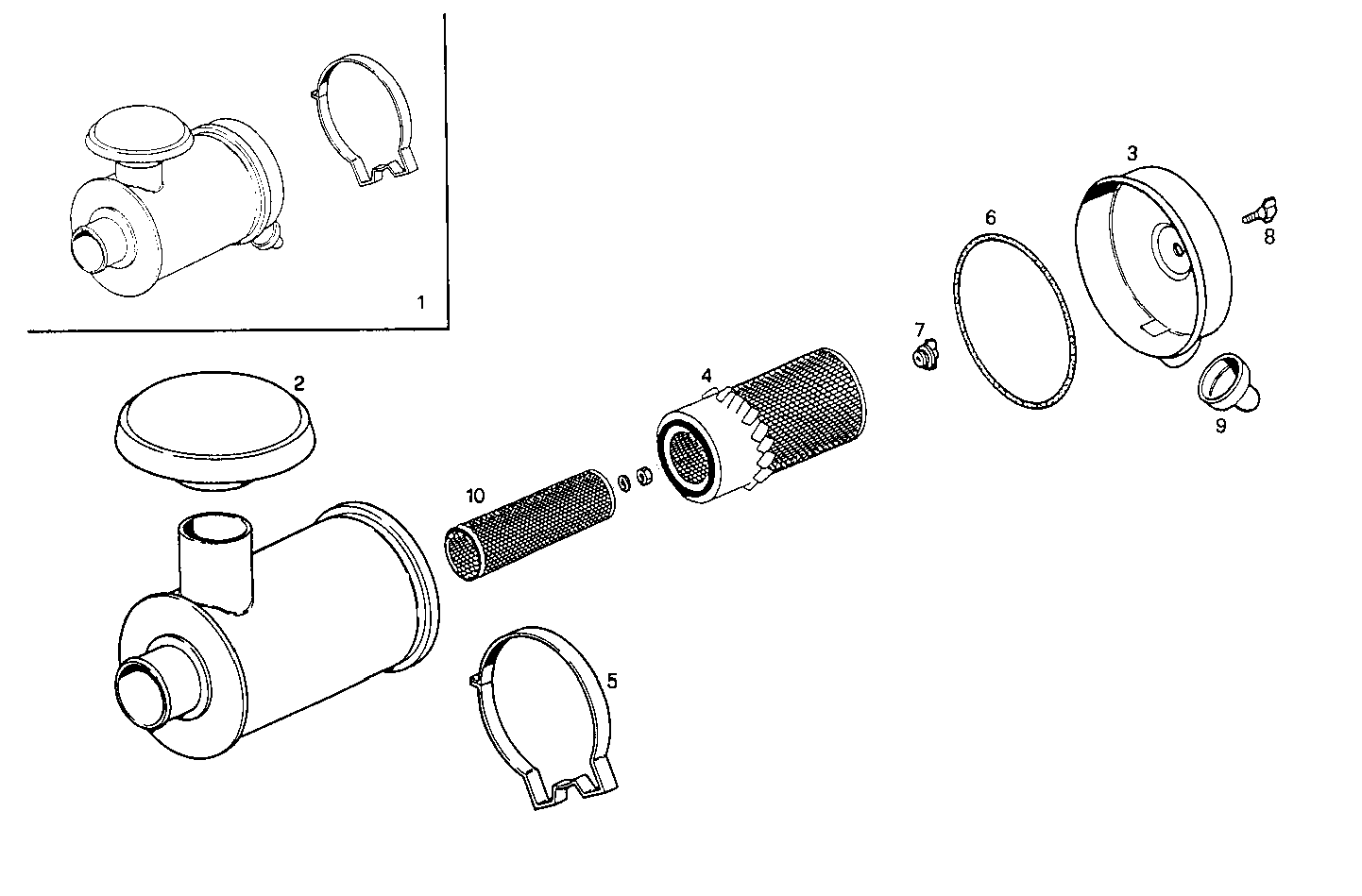

2210.045 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8015445 | AIR CLEANER ASSY |
| 2 | 8014429 | FILTER COVER |
| 3 | 8092460 | COVER |
| 4 | 8014430 | AIR FILTER ELEMENT |
| 5 | 8014389 | CLIP |
| 6 | 8092765 | O-RING |
| 7 | 8092456 | WING SCREW |
| 8 | 8092458 | SCREW |
| 9 | 8092459 | VALVE |
| 10 | 8015448 | AIR FILTER ELEMENT |
