8045E00.09A002

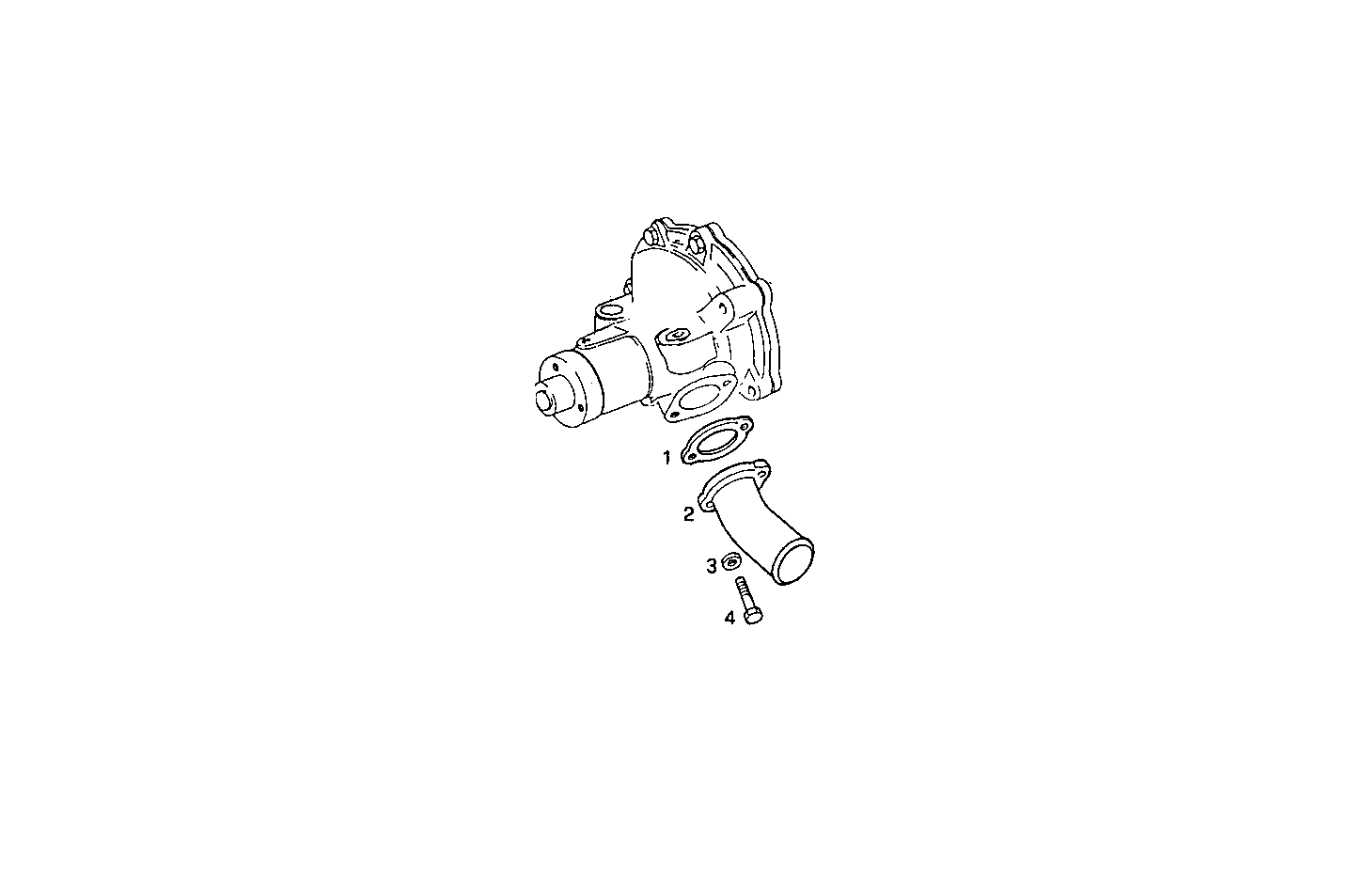

3210.227 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4852556 | FLAT ENGINE GASKET |
| 2 | 4614160 | PIPE |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| Item | Part number | Description |
|---|---|---|
| 1 | 4852556 | FLAT ENGINE GASKET |
| 2 | 4614160 | PIPE |
| 3 | 17094914 | WASHER 8x16 |
| 4 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
