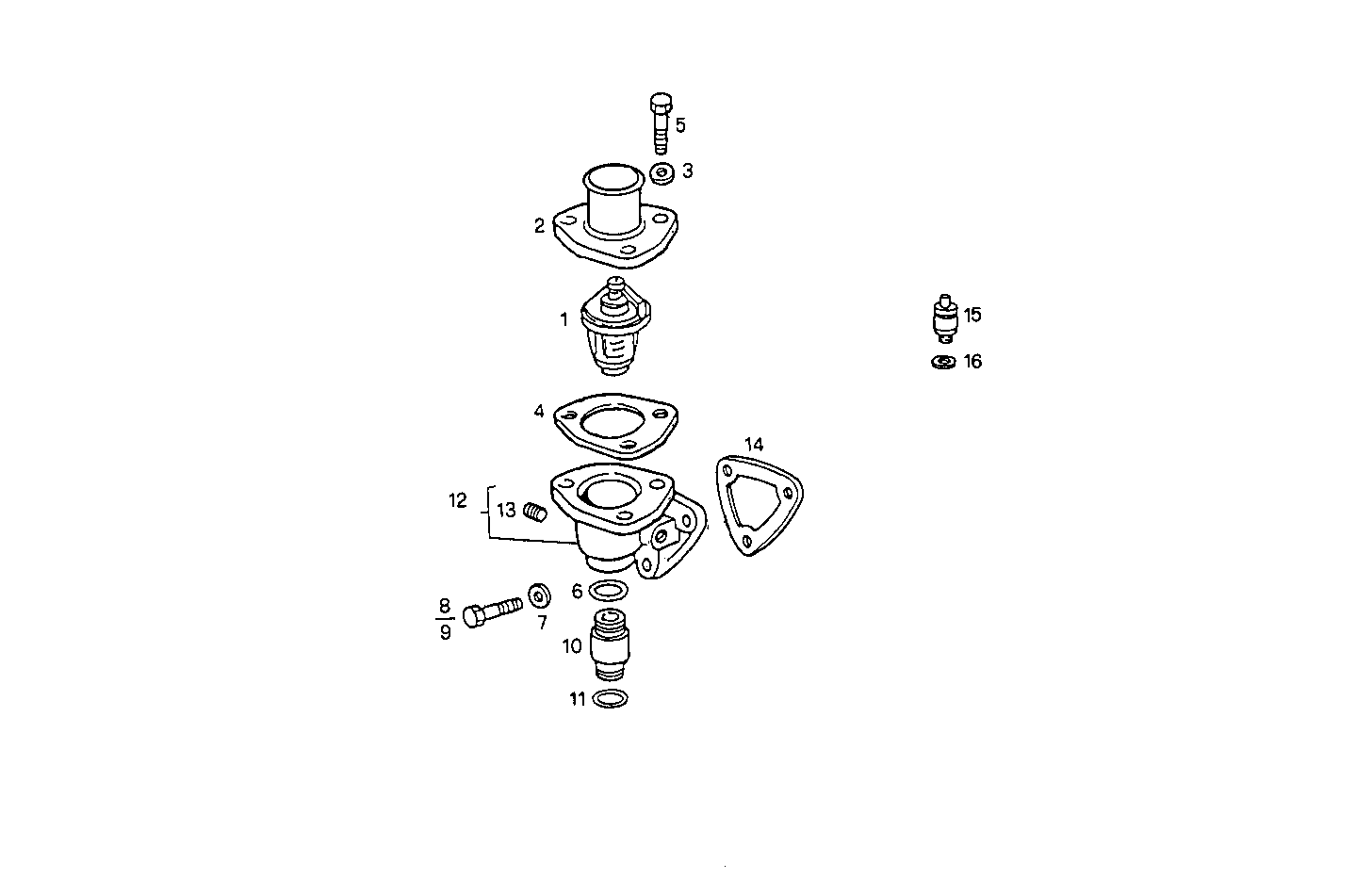

| Item |
Part number |
Description |
|
1 |
98463637 |
THERMOSTAT ASSY |
|
2 |
4661543 |
COVER |
|
3 |
17089574 |
WASHER Ø8X16 MM |
|
4 |
98482590 |
GASKET |
|
5 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
6 |
17288681 |
O-RING Ø24,9 MM SP=3,5 MM |
|
7 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
8 |
11234731 |
HEXAGON BOLT M10X1,25X45 MM |
|
9 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
10 |
98415712 |
PIPE SOCKET [from 657424] |
|
11 |
17282281 |
O-RING 2,62x23,47 |
|
12 |
4823608 |
THERMOSTAT BODY ASSY [from 555948] |
|
13 |
500378047 |
PLUG M20X1,5 |
|
14 |
4851926 |
FLAT ENGINE GASKET |
|
15 |
4171667 |
TEMP. TRANSMITTER |
|
16 |
16508260 |
WASHER Ø16X20 MM |
