8045E00.09A002

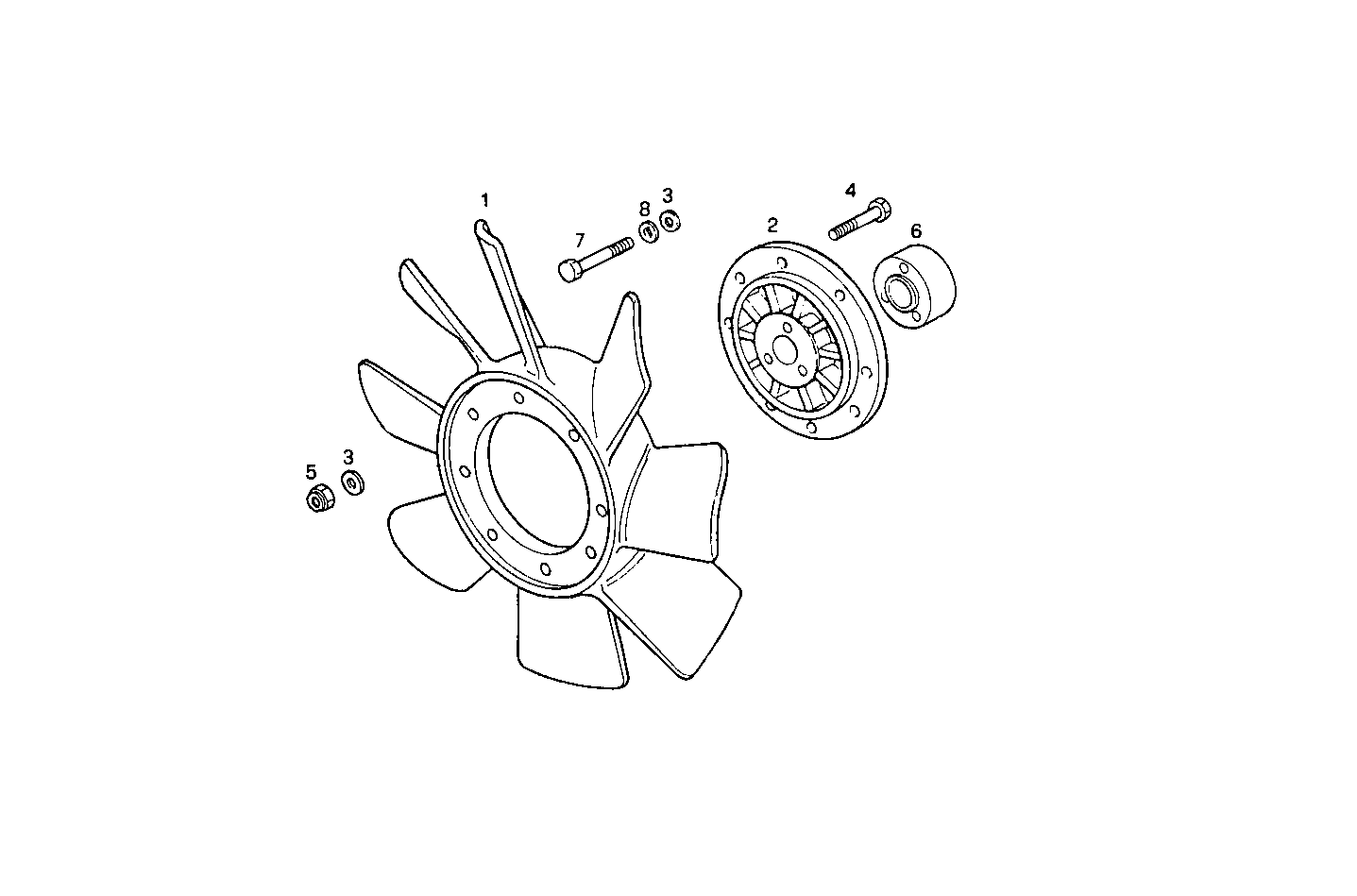

3230.020 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8108067 | FAN Ø450 MM |
| 2 | 4677344 | SPACING BAR |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 16605824 | HEXAGON BOLT M8X35 MM |
| 5 | 17152821 | NUT M8 [up to 555939] |
| 6 | 8105170 | SPACING BAR |
| 7 | 16606424 | HEXAGON BOLT M8X65 MM |
| 8 | 17094904 | WASHER Ø8X16X1,6 MM |
