8045E00.59A007

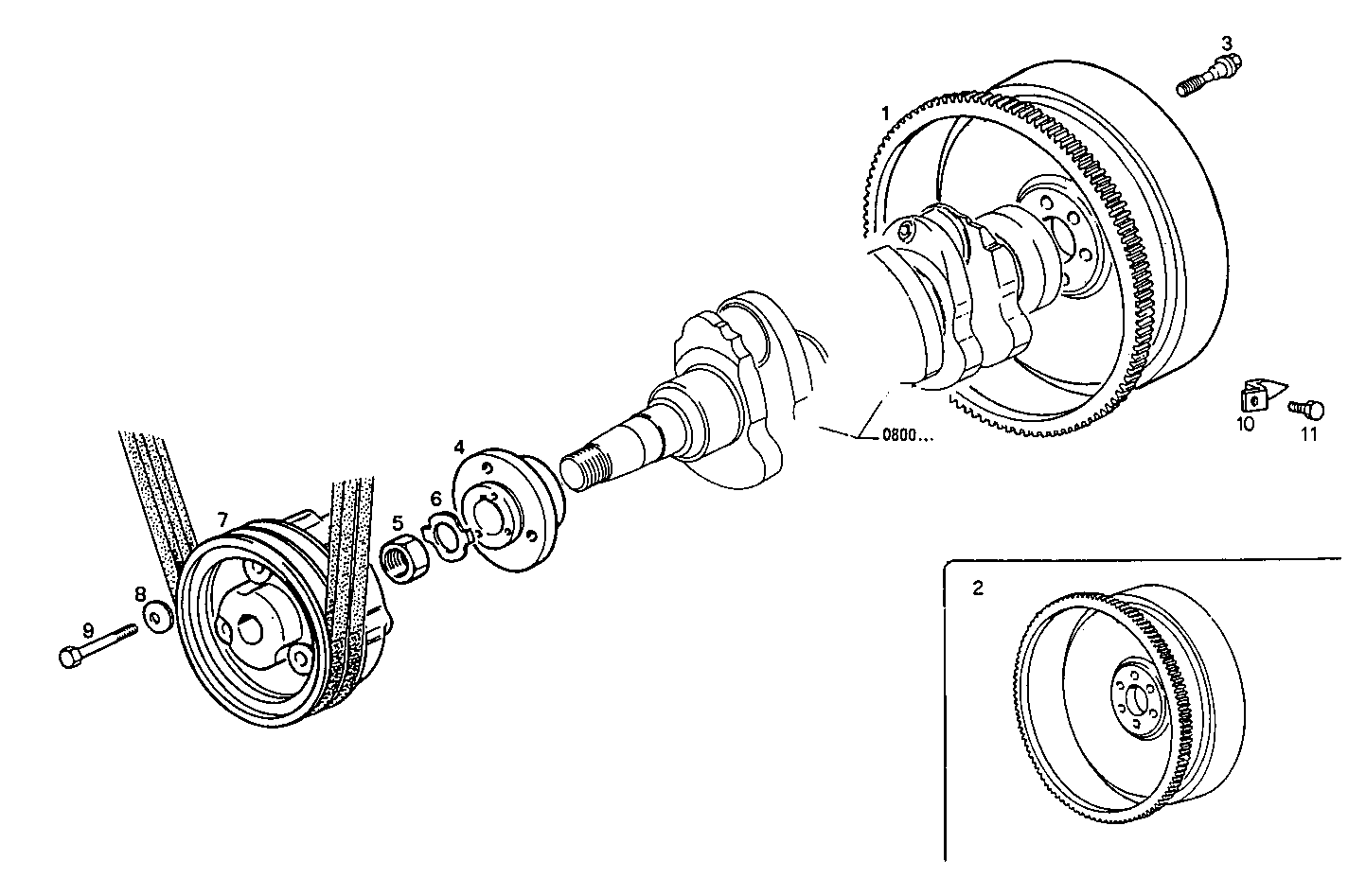

0830.197 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 4862411 | RING GEAR |
| 2 | 8030238 | FLYWHEEL ASSY |
| 3 | 4779122 | HEXAGON BOLT |
| 4 | 4655847 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 4765044 | PULLEY |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
| 10 | 8026170 | INDICATOR |
| 11 | 16605324 | SCREW M8X12 |
