8045E00.59A007

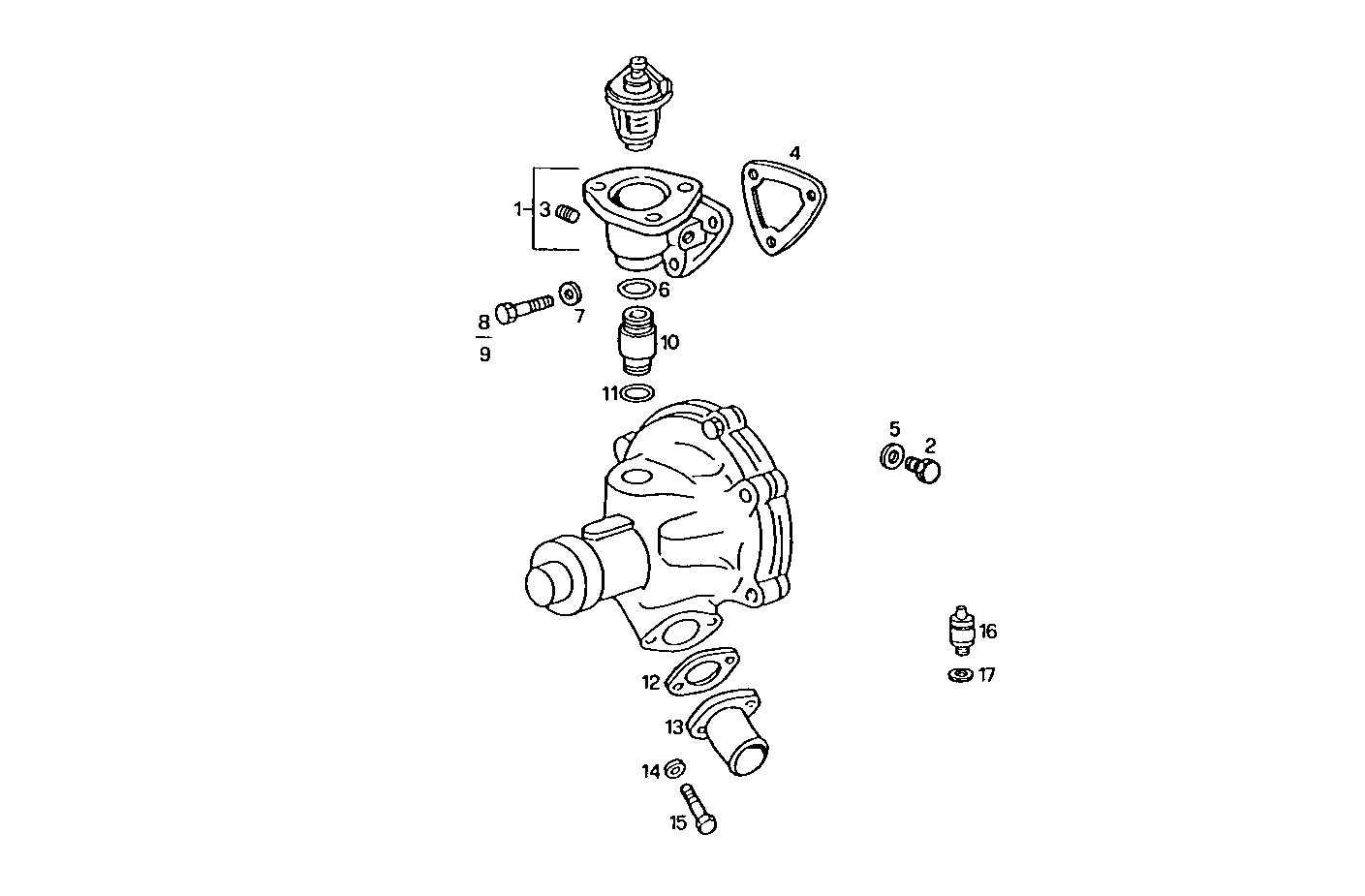

3210.221 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4823608 THERMOSTAT BODY ASSY [from 555948]
2 11903111 LOCK PLUG M10X1,25
3 500378047 PLUG M20X1,5
4 4851926 FLAT ENGINE GASKET
5 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
6 17288681 O-RING Ø24,9 MM SP=3,5 MM
7 17090174 SPRING WASHER Ø10X20 MM
8 15004021 HEXAGON BOLT M10X1,25X25 MM
9 11234721 HEXAGON BOLT M10X1,25X45 MM
10 98415712 PIPE SOCKET [from 657424]
11 17282281 O-RING 2,62x23,47
12 4852556 FLAT ENGINE GASKET
13 4697838 WATER PIPE
14 17094914 WASHER 8x16
15 98401723 HEXAGON BOLT M8X1,25X12 MM
16 4171667 TEMP. TRANSMITTER
17 16508260 WASHER Ø16X20 MM
